Overview
Proximity in-wall boxes feature multi-level, multi-sectioned Lever Lock plates, making it easier to arrange components in all three dimensions of the storage space. Installers can hide power bricks behind the backplane with equipment mounted to the front. This also helps work around difficult port locations on AV equipment.

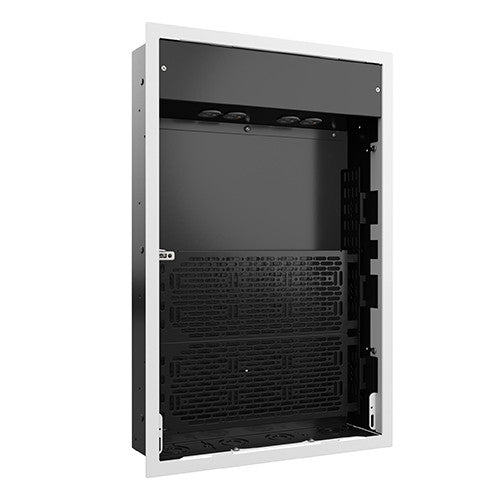

The new PAC527L now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box.
Optionally also include one of the following power protection options:
Two outlet Power Filter Kit PACPC1
Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
Two outlet IP controlled Select Series Compact PDU with RackLink™ from Middle Atlantic Products
Specification
| Depth | 3.9 |
| Height | 14.25 |
| Overall Dimensions | For 3.5" stud bays: 14.25 x 22 x 3.9” (362 x 559 x 99 mm) - For 2.5” stud bays: 14.25 x 22 x 3” (362 x 559 x 76 mm) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 22 |
| Accessory Type |
|
| Application |
|
| Color | Black and White |
| Cover Color | None |
| Flange Color | White |
| Notes | Four NEMA 5-15R Isolated Ground Receptacles, Green LED Status Indicator |
| Power Requirements |
|
| Receptacle Type | Four Surge and Filter |
| Special Features |
|
| Temperature Range | 30° F to 104° F |
