Overview

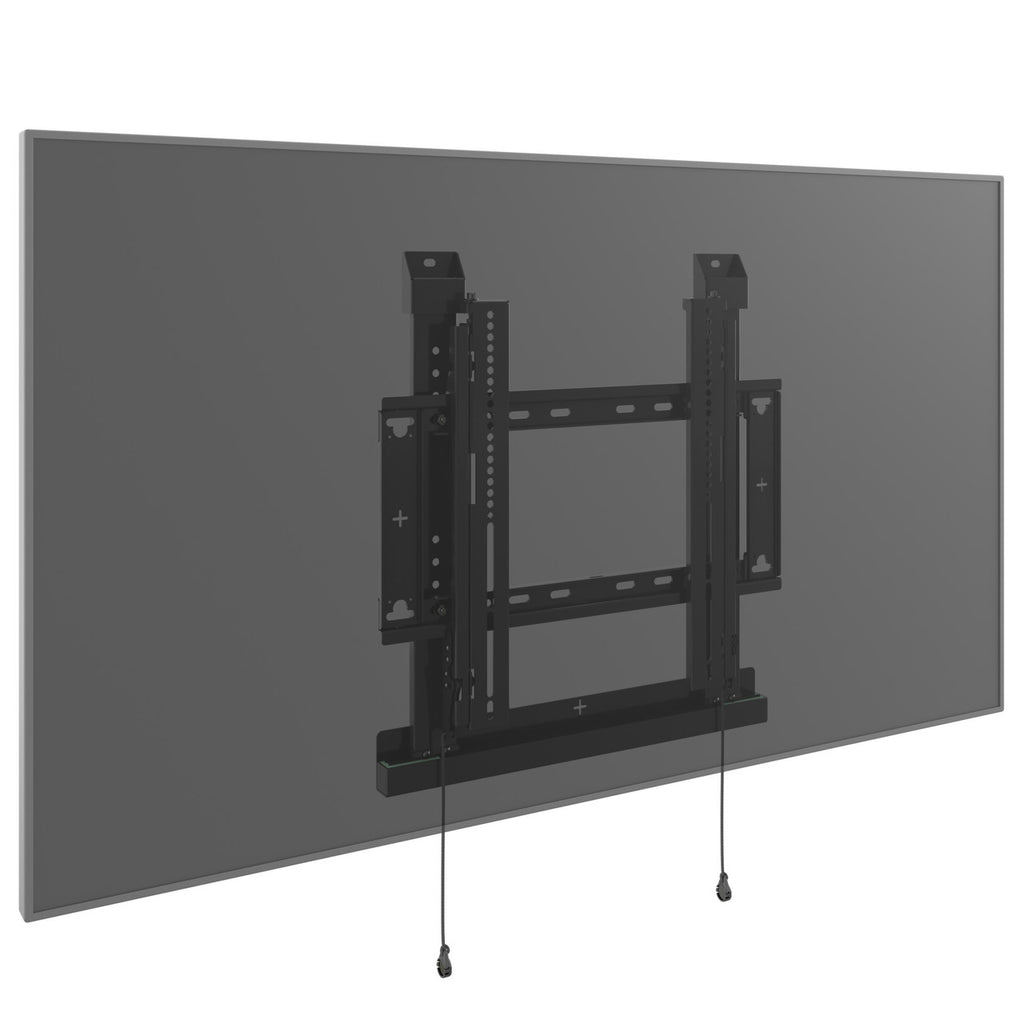

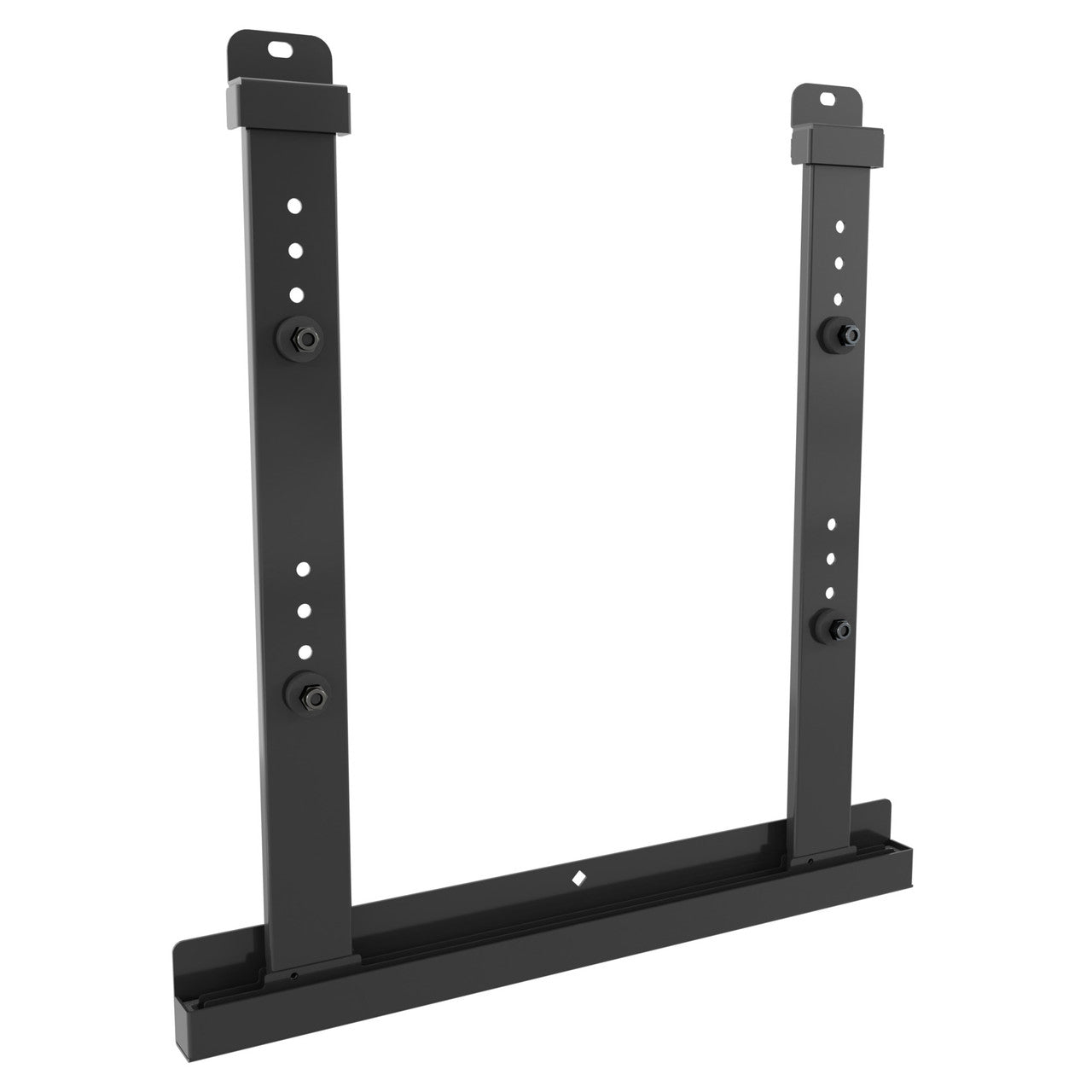

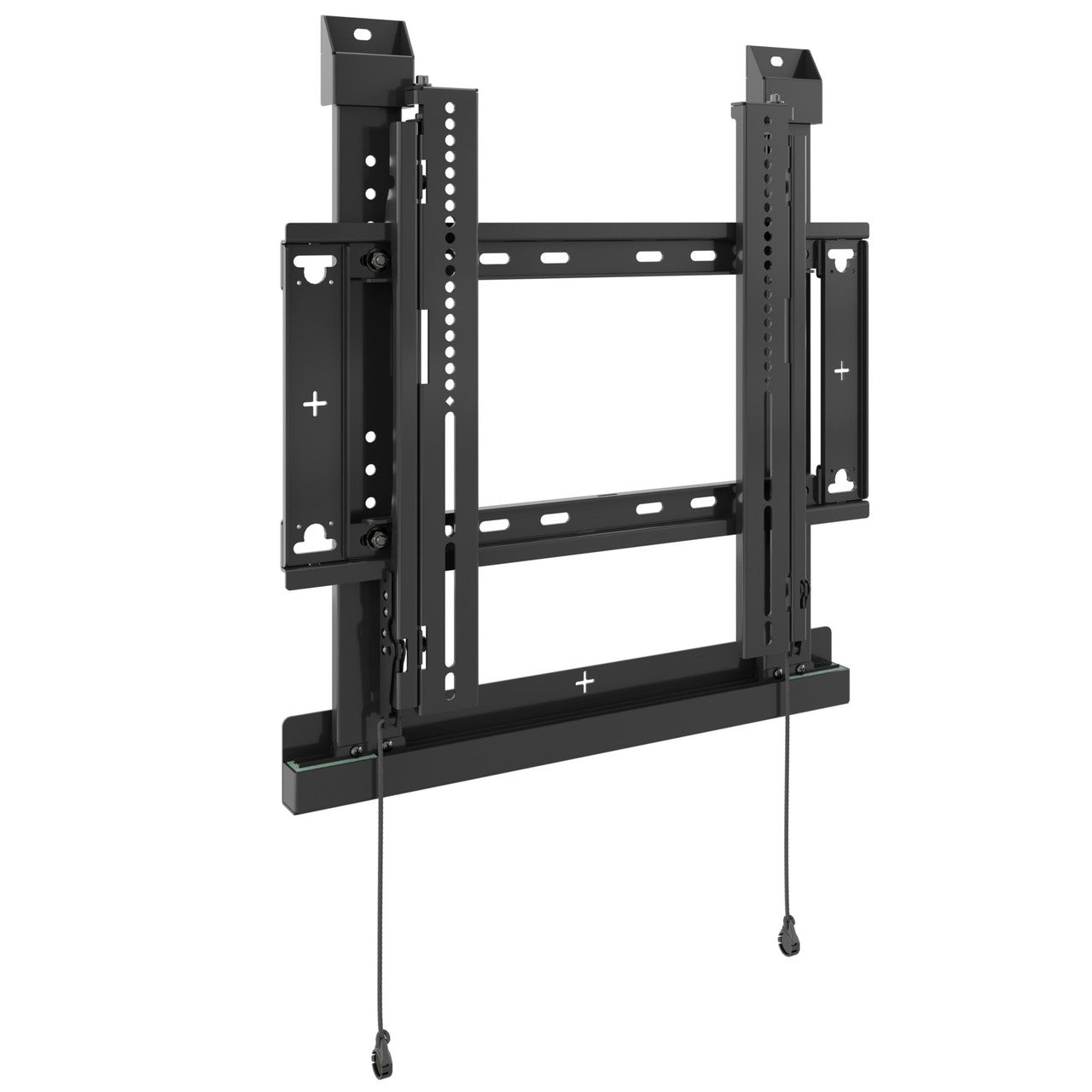

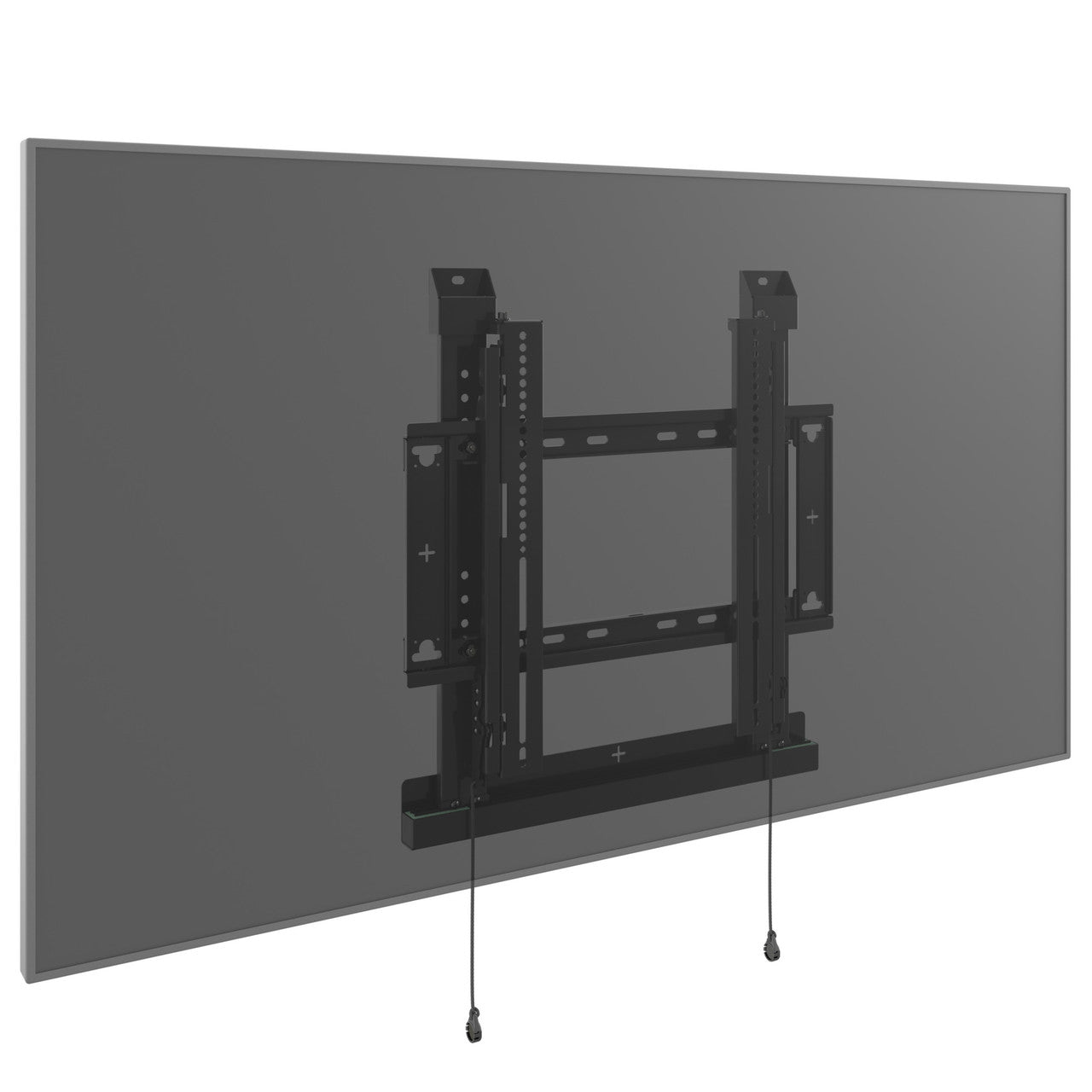

The PACVISO1 Vibration Isolation Wall Mount Accessory is designed to minimize structure-borne sound transmission from wall mounted displays to neighboring rooms. It can reduce perceived structure-borne sounds by up to 80-87% (up to 25-30dB insertion loss), on average, while maintaining the sleek look made possible with Chief wall mounts.
Product Features:
- Reduces perceived structure-borne sound by up to 80-87% (up to 25-30 dB insertion loss)
- Simple Installation
- Ideal for new builds, retrofits, and renovations

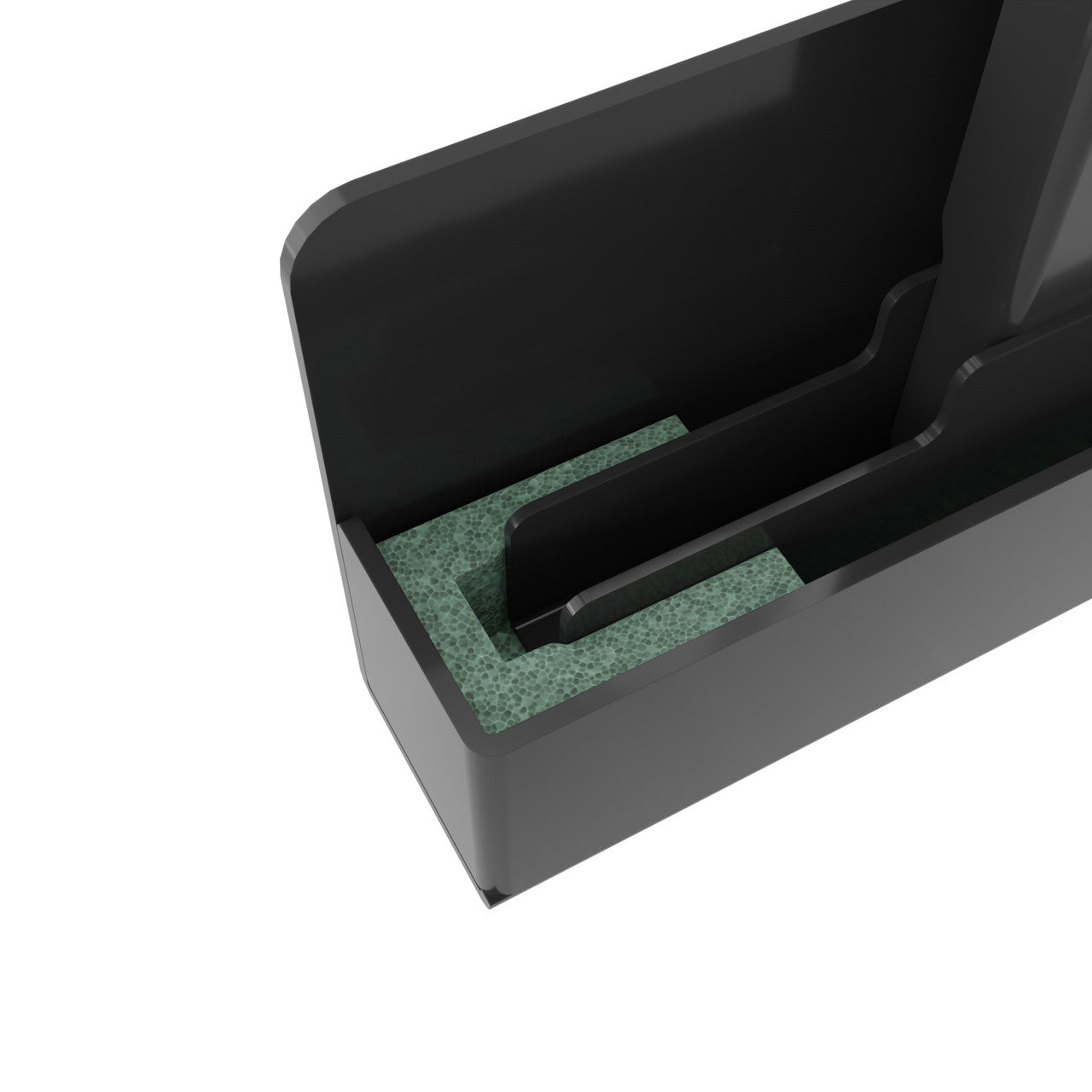

- Specifically designed with high performance proprietary elastomeric materials
- Only compatible with RMF3 Medium Fit™ Fixed Display Wall Mount for installation of typical 43” to 65” up to 125 lbs (56.7 kg)
- Adds 1” (25mm) depth
- 3” (76 mm) height adjust for best placement of wall mount and display
Specification
Dimensions & Measurements
| Depth | 1.07” (27.3 mm) |
| Manual Height Adjustment | 3” (76 mm) in 1” (25 mm) increments |
| Shipping Dimensions | 29 x 7_13 x 2_75 |
| Shipping Weight | 8.06 lbs (3.65 kg) |
| Wall Stud Compatibility In | Wood or Steel Studs (25ga minimum) 16” on center |
| Weight Capacity | 125 lbs (56.7 kg) on wood/steel studs (25ga minimum); 75 lbs (34 kg) on drywall-only wall |
Characteristics & Features
| Accessory Type | Music and Sound Solutions |
| Application | On-Display |
| Color | Black |
| Notes | Only compatible with RMF3 Medium Fit Fixed Display Wall Mount |
| Special Features | Vibration Dampening |
