Overview

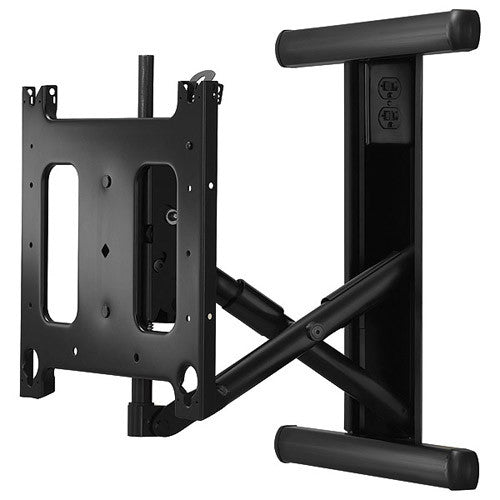

Create a low-profile installation when mounting a flat screen display with articulation.
- View animation
- Limitless centering on the wall between 16" center studs without cutting studs
- Low profile design ensures the mount remains concealed behind the flat panel
- Centris Technology uses the center of gravity to achieve smooth, fingertip tilt
- ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
- Easy connect/disconnect with no tools needed
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management
Specification
Dimensions & Measurements
| Lateral Shift | 5 in (127 mm) |
| Minimum Depth | 1.7 in (4.3 cm) |
| Shipping Weight | 52.25 lbs (23.7 kg) |
| Weight Capacity | 200 |
Characteristics & Features
| Adjustability |
|
| Application | In-Wall |
| Color | Black |
| Interface Included | No |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +2° / -15° |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
