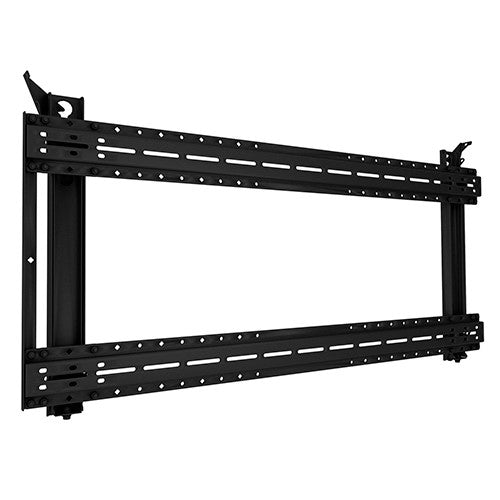

Overview
The PSMH2079 wall display mount solution offers a high weight capacity and quick installation features. Plumb adjustment helps to vertically align the display. This robust mount secures heavy displays and interactive technology to protect user investments.
- Custom TV specific bracket design
- Plumb adjustment to help vertically align the panel
- Exclusive Q-Latch Mounting System secures the TV to the wall
- High weight capacity and rugged design
- Offers quick installation and quick release
- Display installs in landscape view only
Specification
Dimensions & Measurements
| Depth | 2.64 in (6.7 cm) |
| Height | 26 in (66 cm) |
| Minimum Depth | Varies per Product |
| Overall Dimensions | 26.0" x 54.36" x 2.64" (660 x 1380 x 67 mm) |
| Plumb Adjustment | +1.6° |
| Typical Screen Size | Varies per Product |
| Wall Stud Compatibility In | 16" and 24" (406mm and 610mm) |
| Weight Capacity | 350 lbs (158.8 kg) |
| Width | 54.36 in (138.1 cm) |
Characteristics & Features
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| VESA Mounting Pattern | 1200 x 600 or 400 mm, 1100 x 600 or 400 mm, 1000 x 600 or 400 mm, 900 x 600 or 400 mm, 800 x 600 or 400 mm, 700 x 600 or 400 mm, 600 x 600 or 400 mm, 500 x 600 or 400 mm, 400 x 600 or 400 mm |
