Overview

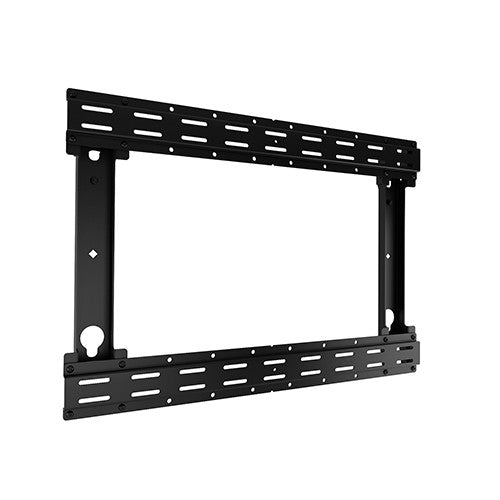

The PSMH is a cost-effective wall display mount solution for large flat panel TVs, plasma and LCD screens larger than 37".
- Custom TV specific bracket design
- Exclusive Q-Latch Mounting System secures the TV to the wall
- Low profile - mount designed to meet manufacturer requirements for more/less airspace
- Offers quick installation and quick release
- Display installs in landscape view only
Specification
Dimensions & Measurements
| Depth | 2.9 |
| Height | 25 |
| Minimum Depth | 2.92 in (7.4 cm) |
| Overall Dimensions | 25.0" x 36.4" x 2.9" (635 x 924 x 74mm) |
| Shipping Weight | 40.7 lbs (18.5 kg) |
| Wall Stud Compatibility In |
|
| Weight Capacity | 300 |
| Width | 36.4 |
Characteristics & Features
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Notes | Ships with 1/4-20 fasteners to attach to screen |
| Orientation | Landscape |
| Solution Type | Custom |
| VESA Mounting Pattern | 800 x 400mm, 600 x 400mm, 500 x 400mm, 400 x 400mm |
