Overview

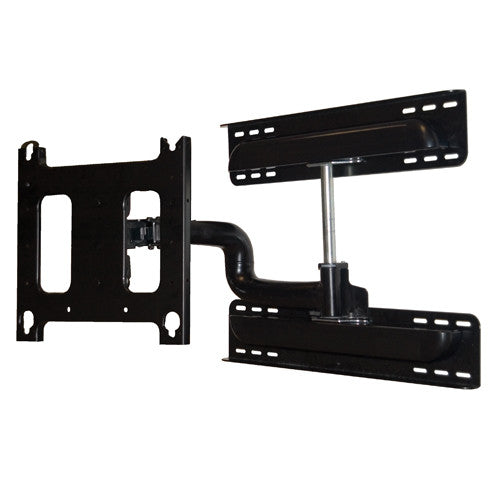

Allows for viewing flexibility when installing a flat panel display. A great display mount for corporate and home entertainment applications. Standard solutions are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications
- Extends 24.88" from wall and remains low profile in the home position
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
- Centris Technology provides fingertip tilt adjustments
- Mounting guides provided for a hassle-free installation
- Provides positive latch in home position to keep screen tight to wall
- CableTrac System provides a fast and effective way to route cables
- Swivel up to 90° left or right (depending upon screen size)
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Specification
Dimensions & Measurements
| Depth | 3.5 in (8.9 cm) |
| Height | 21.2 in (53.9 cm) |
| Minimum Depth | 3.38 in (8.6 cm) |
| Overall Dimensions | 21.2" x 27.0" x 3.5" (538 x 686 x 89mm) |
| Shipping Weight | 62 lbs (28.1 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility In |
|
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 27 in (68.6 cm) |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | + 5° / - 15° |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
