Overview

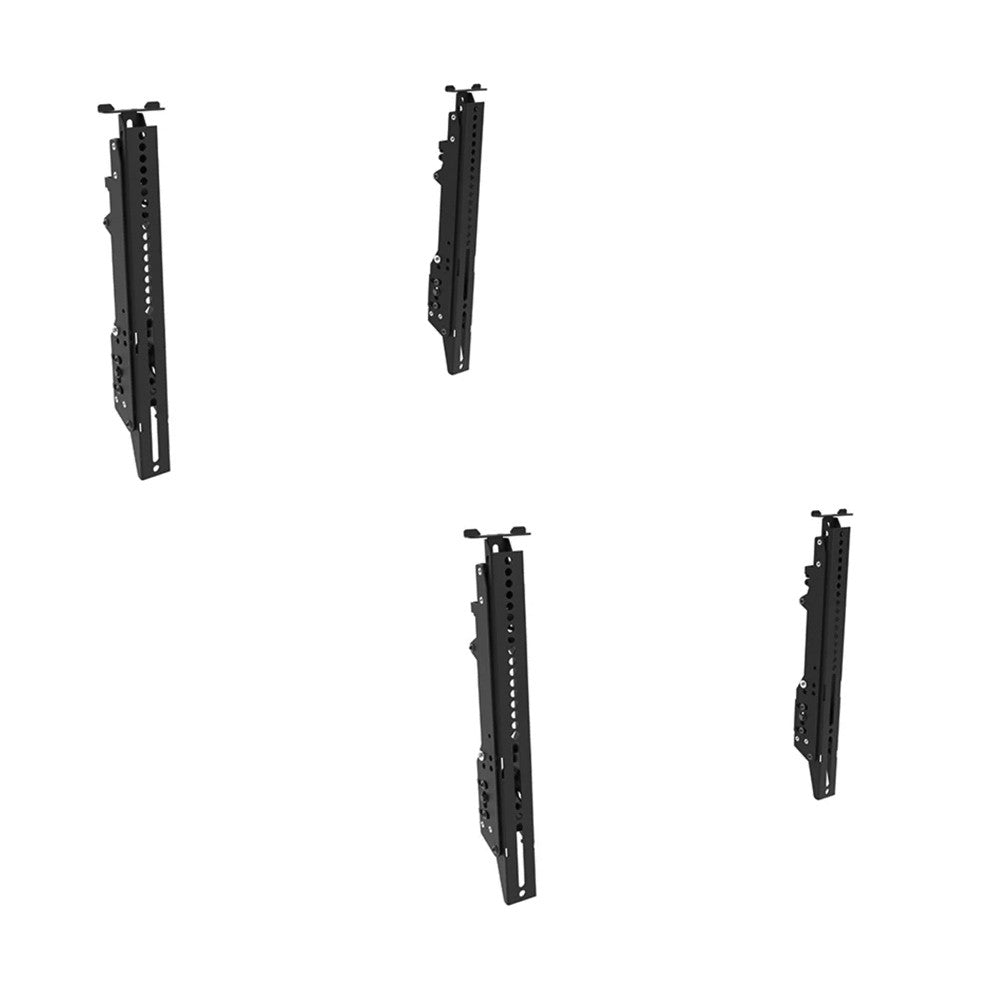

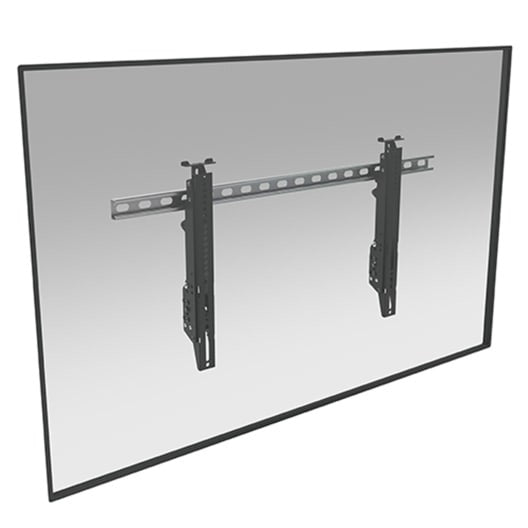

This quick and easy to install multi-display menu board tilting display interface hangs on 12 or 14 gauge 1-5/8” strut channel (not included)
- Low-profile, adjustable depth leveling pad 0.56” adjustment

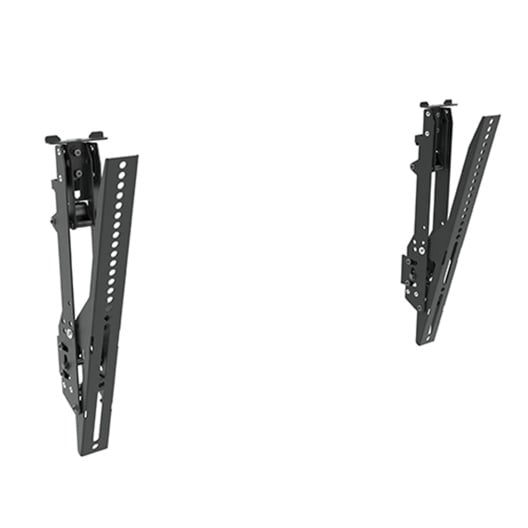

- Tilting interfaces can be locked at 0°, 5°, 10°, and 15°
- Interface brackets feature a locking latch to secure them to strut channel
- Wide open back wall allows for device mounting and cable routing behind displays
- Optional storage box provides a clean installation (PAC525, PAC526)
Specification
Dimensions & Measurements
| Depth | 2.17 |
| Height | 17.45 |
| Lateral Shift | Depends on length of strut channel |
| Minimum Depth | 2.17 in (5.5 cm) |
| Overall Dimensions | 17.45” x 3” x 2.17” (443 x 76 x 55mm) |
| Plumb Adjustment | 0.56" (14mm) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 75 |
| Width | 3 |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Notes | Strut channel not included |
| Number of Displays | 1 |
| Orientation |
|
| Solution Type | Universal |
| Special Features |
|
| Tilt | 0°, 5°, 10°, 15° |
| VESA Mounting Pattern | Unlimited width- up to 400 mm height |
