Overview

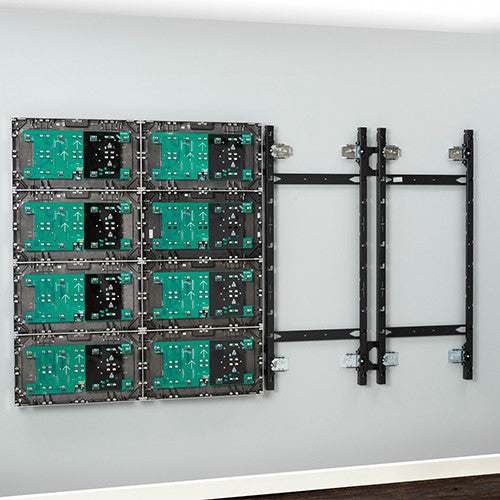

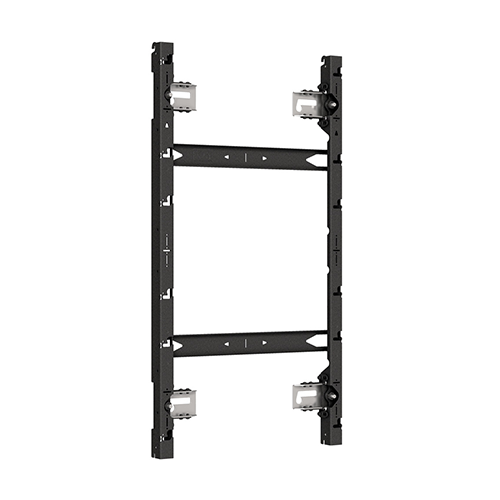

The TiLED™ LED Video Wall Mounting System is designed to mount 1 vertically stacked LED display from the Samsung® IFH Series. Simply stack LED displays to create one continuous video wall. Chief’s modular design attaches to the top, bottom, and sides of other mounts to support endless design configurations. TiLED™ Video Wall Mounting Systems feature offset mounting slots to protect LED displays from damaging friction during installation. Once displays are in place, variable X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.
TiLED™ direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality.
THIS PRODUCT HAS BEEN DISCONTINUED.

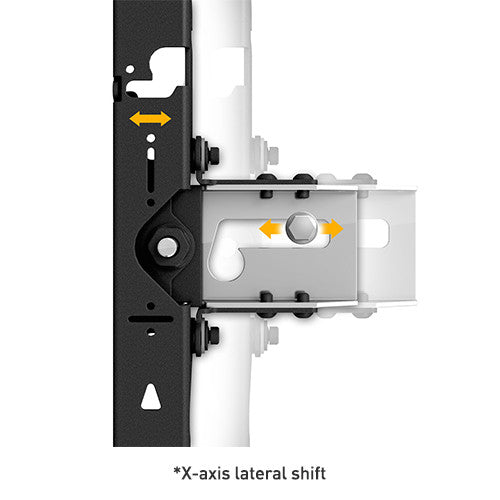

- X-axis lateral shift adjustments enable perfect LED positioning

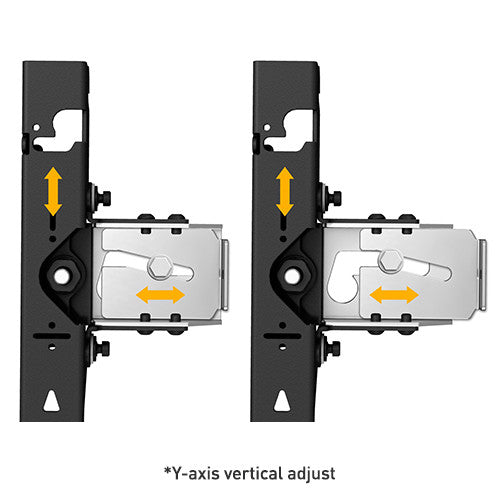

- Y-axis vertical shift adjustments provide perfect cabinet-to-cabinet alignment

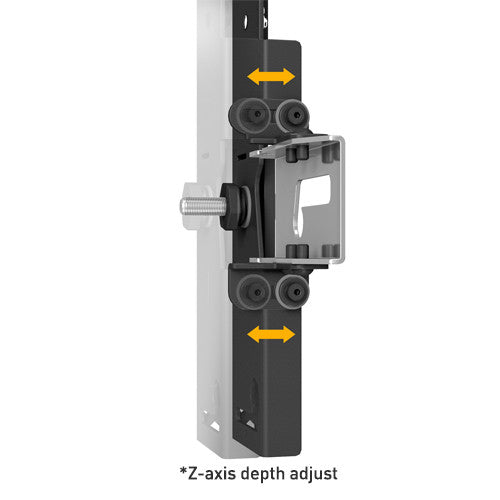

- Z-axis plumb adjustments compensate for wall imperfections to achieve perfectly flat mounting surfaces
- Spring loaded push buttons eliminate unwanted movement and keep Samsung® IFH displays secure

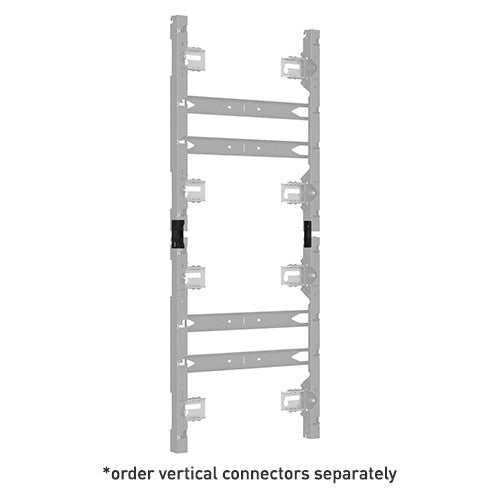

- Modular design supports creative video wall design
- Offset mounting slots for easy installation and to protect LED sides from damaging friction
- Depth range with display is between 3.77” – 4.52” (95.7-114.8 mm) for low-profile result
- Standard, off-the-shelf solution set means product is stockable and ready to ship – no custom lead times
Specification
| Depth | 2.22 in (5.6 cm) |
| Height | 53.2 in (135.1 cm) |
| Overall Dimensions | 53.2" x 31.8" x 2.22” (1352 x 806 x 56 mm) |
| Weight Capacity | 90 lbs (40.8 kg) |
| Width | 31.8 in (80.8 cm) |
| Accessory Type |
|
| Adjustability |
|
| Application | Wall |
| Base Series | IFJ Series |
| Manufacturer | Samsung |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features |
|
| VESA Mounting Pattern | Samsung® IFJ Series |
| Certifications | UL Listed |
