Overview

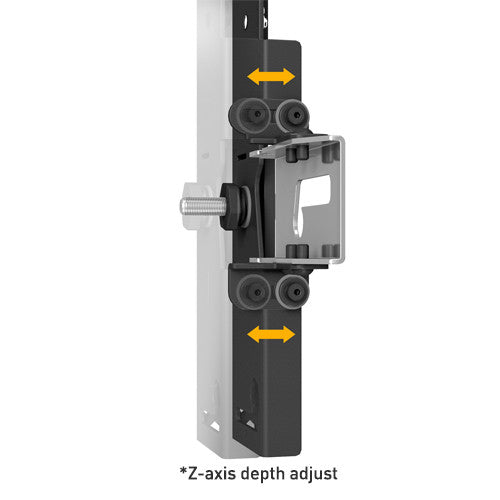

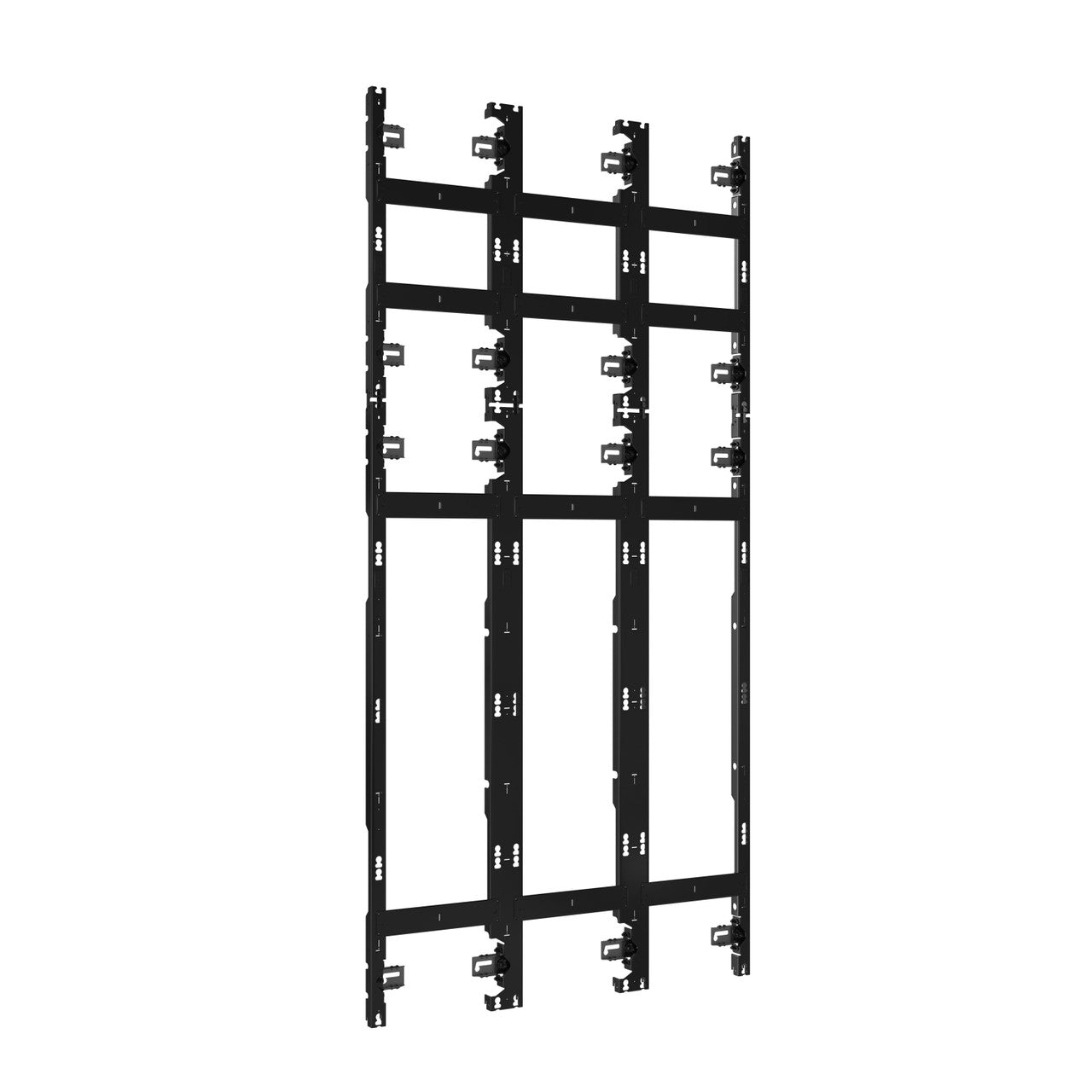

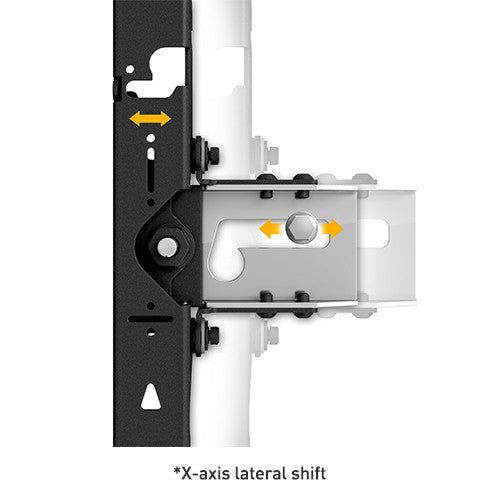

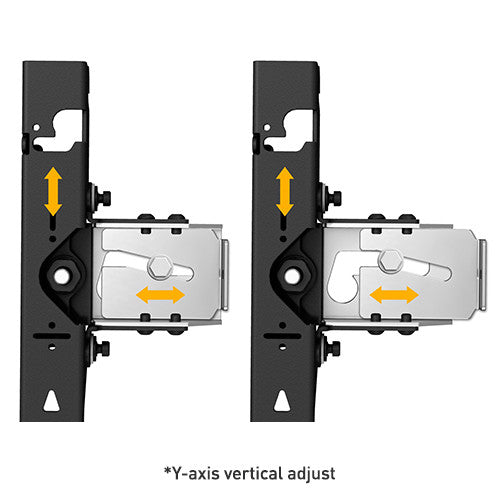

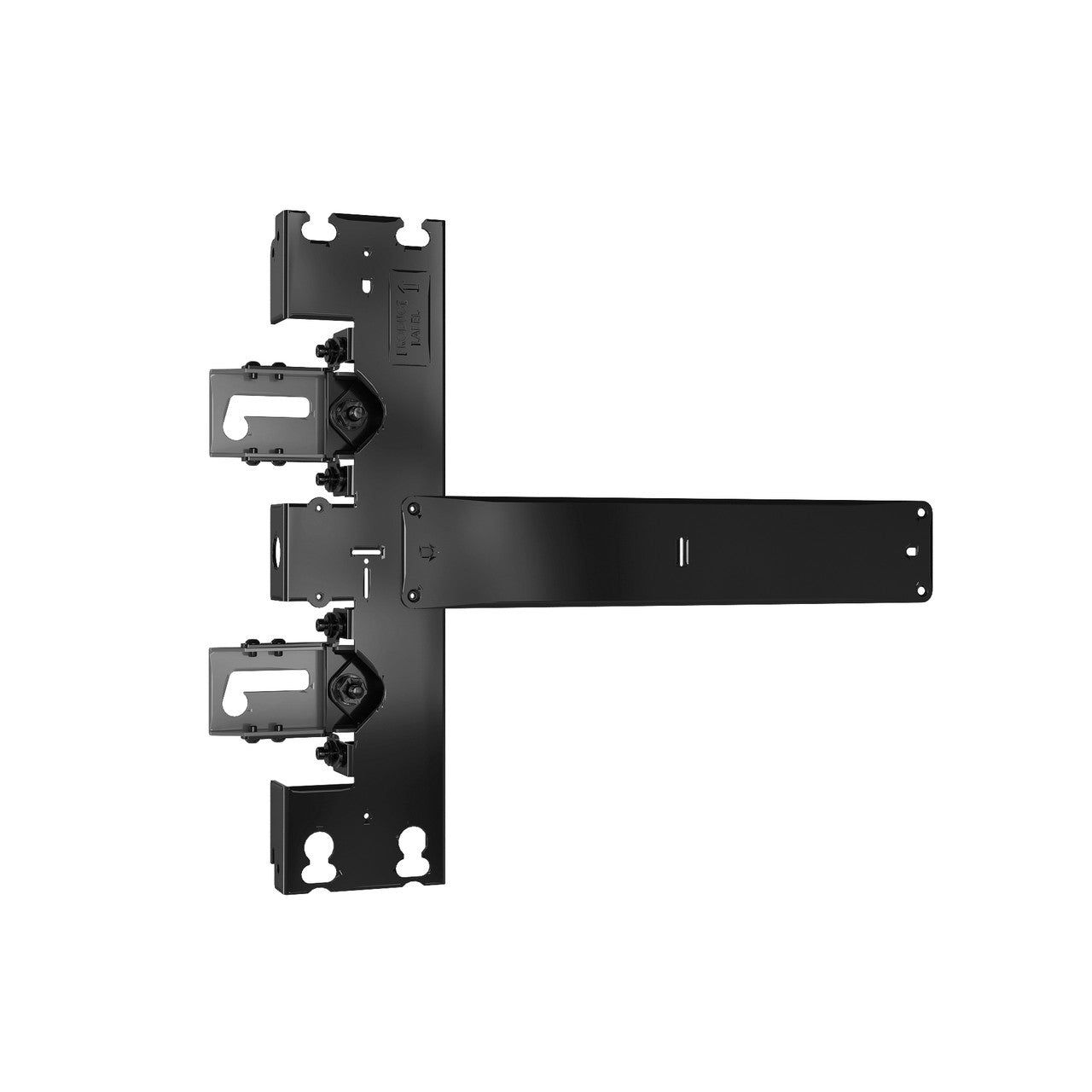

The TiLED™ LED Video Wall Mounting System is modular and contains left, middle, and right wall mounting components. The TILD1X05US-L is 500 mm tall and is used on the left side of a Unilumin USLIM Series video wall configuration. Mix and match a variety of components to create endless video wall configurations. Essential X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.
TiLED™ direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality.
Compatible with:
USLIM 1.9
USLIM 2.6
USLIM 3.9
USLIM 4.8
KSLIM 2.9
KSLIM 3.9
USLIM II 1.5
USLIM II 1.8
USLIM II 2.5
USLIM II 3.2
USLIM II 3.9
Specification
| Equipment Depth Range | 5.37" – 6.12" (136mm-156mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Accessory Type |
|
| Adjustability | Fixed, Lateral Shift, Micro-Adjustable, Height Adjustable |
| Application | Wall |
| Manufacturer | Unilumin |
| Orientation | Landscape |
| Special Features |
|
| VESA Mounting Pattern | Unilumin USLIM-USLIMII-KSLIM |
