Overview

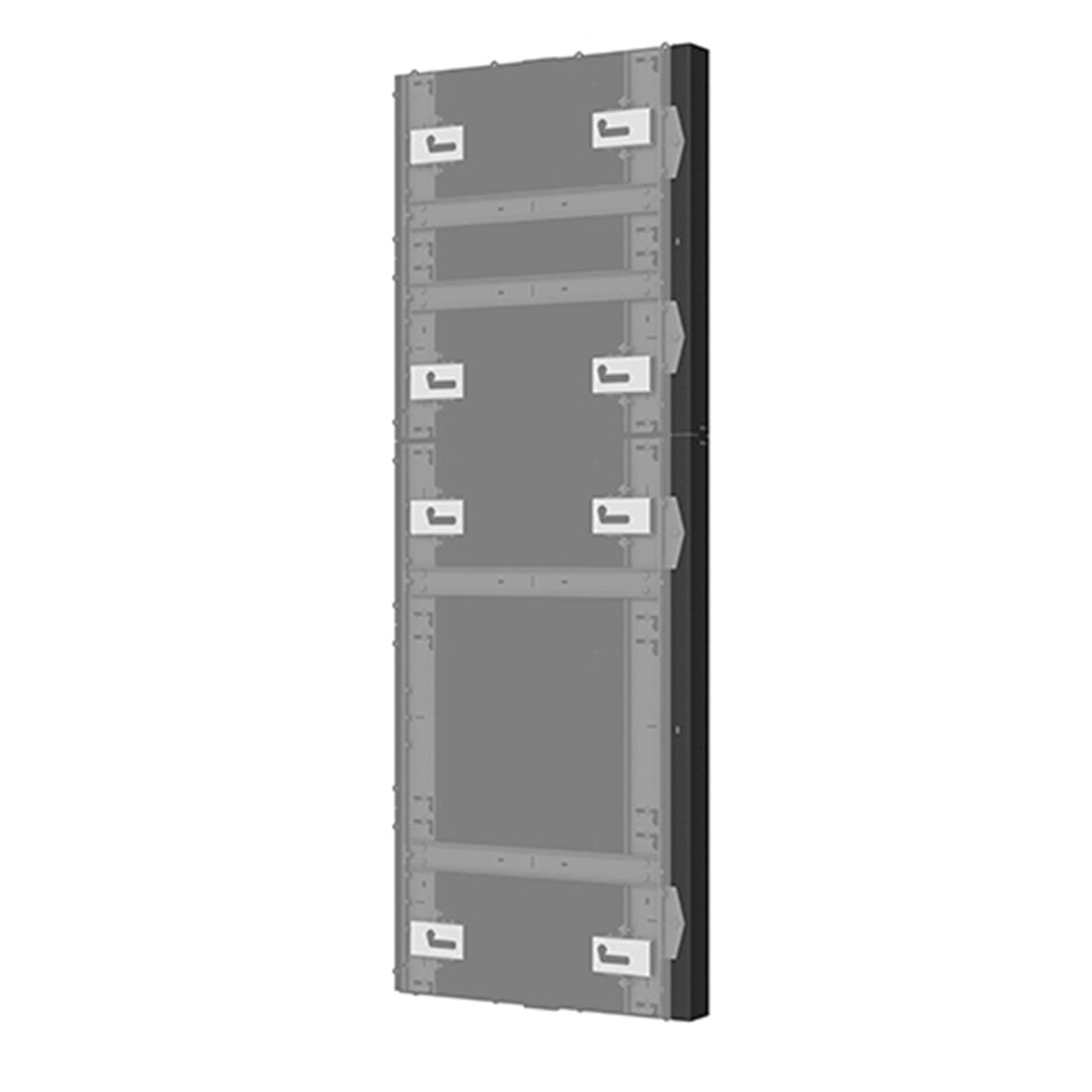

Built for the Samsung IFH Series. Side covers add a clean aesthetic trim to the sides of unsightly LED displays. The modular design allows you to stack side covers vertically to cover any configuration greater than 2 rows high.
- Sold as a pair, TILSC2HIFH will cover 2 LED panel high for the left and right side of a configuration (1 for each side)
- Use with TILSC1HIFH to stack side covers vertically to cover any configuration greater than 1 row high
- Compatible with all TIL1XxIFH wall mounts
- Modular design supports creative video wall design
- Standard, off-the-shelf solution set means product is stockable and ready to ship – no custom lead times
Specification
Dimensions & Measurements
| Depth | 3.65 in (9.3 cm) |
| Equipment Depth Range | 3.77” – 4.52” (95.7mm-114.8 mm) |
| Height | 42.52 in (108 cm) |
| Overall Dimensions | 42.52" x 0.93” x 3.65" (1080 x 24 x 93mm) |
| Shipping Weight | 26.65 lbs (12.1 kg) |
| Weight Capacity | 20 lbs (9.1 kg) |
| Width | 0.93 in (2.4 cm) |
Characteristics & Features
| Accessory Type | Mounting Brackets |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| LED Display Model | Samsung IFH |
| Manufacturer | Samsung |
| Number of Displays | 2 |
| Orientation | Landscape |
| Special Features |
|
