Overview

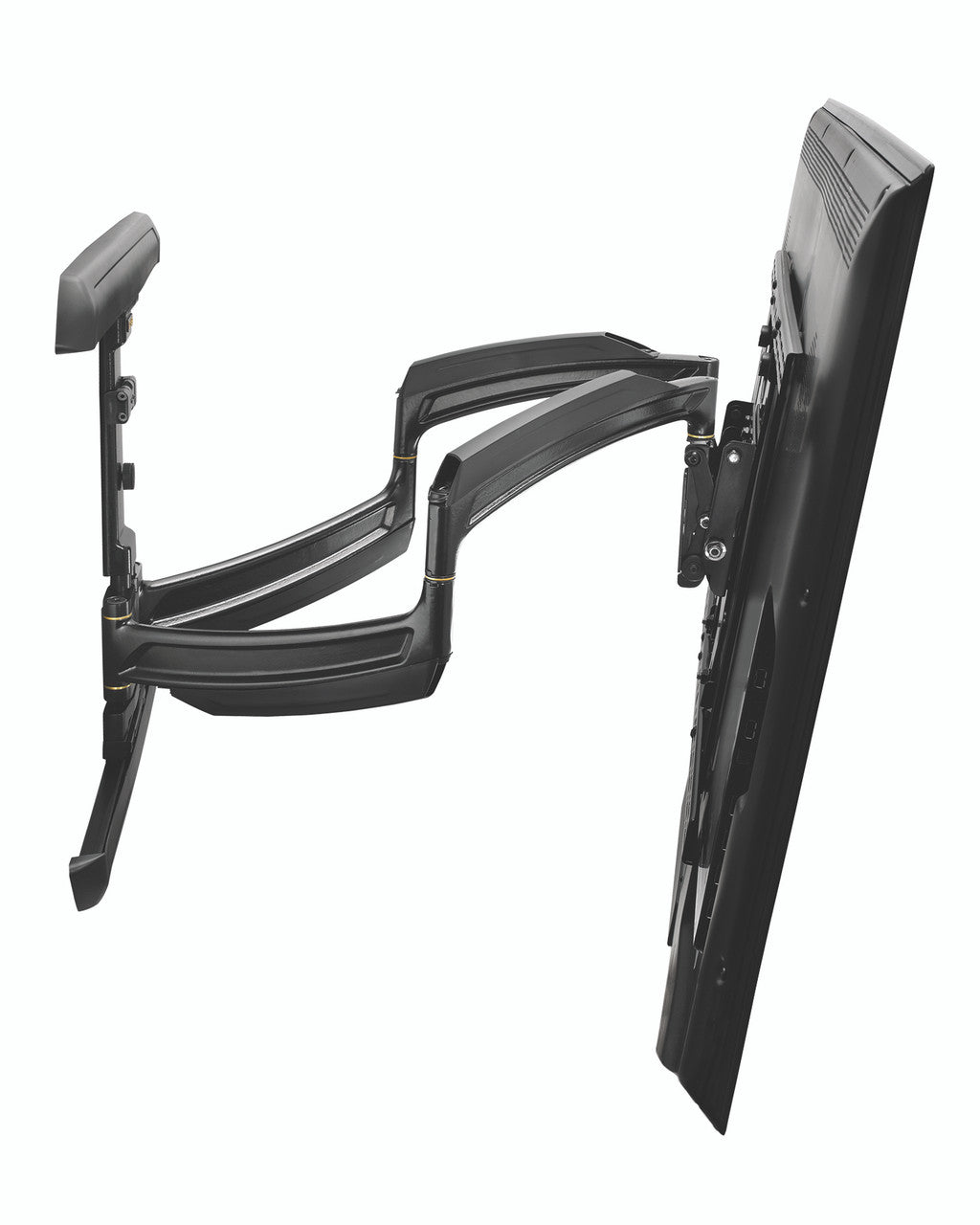

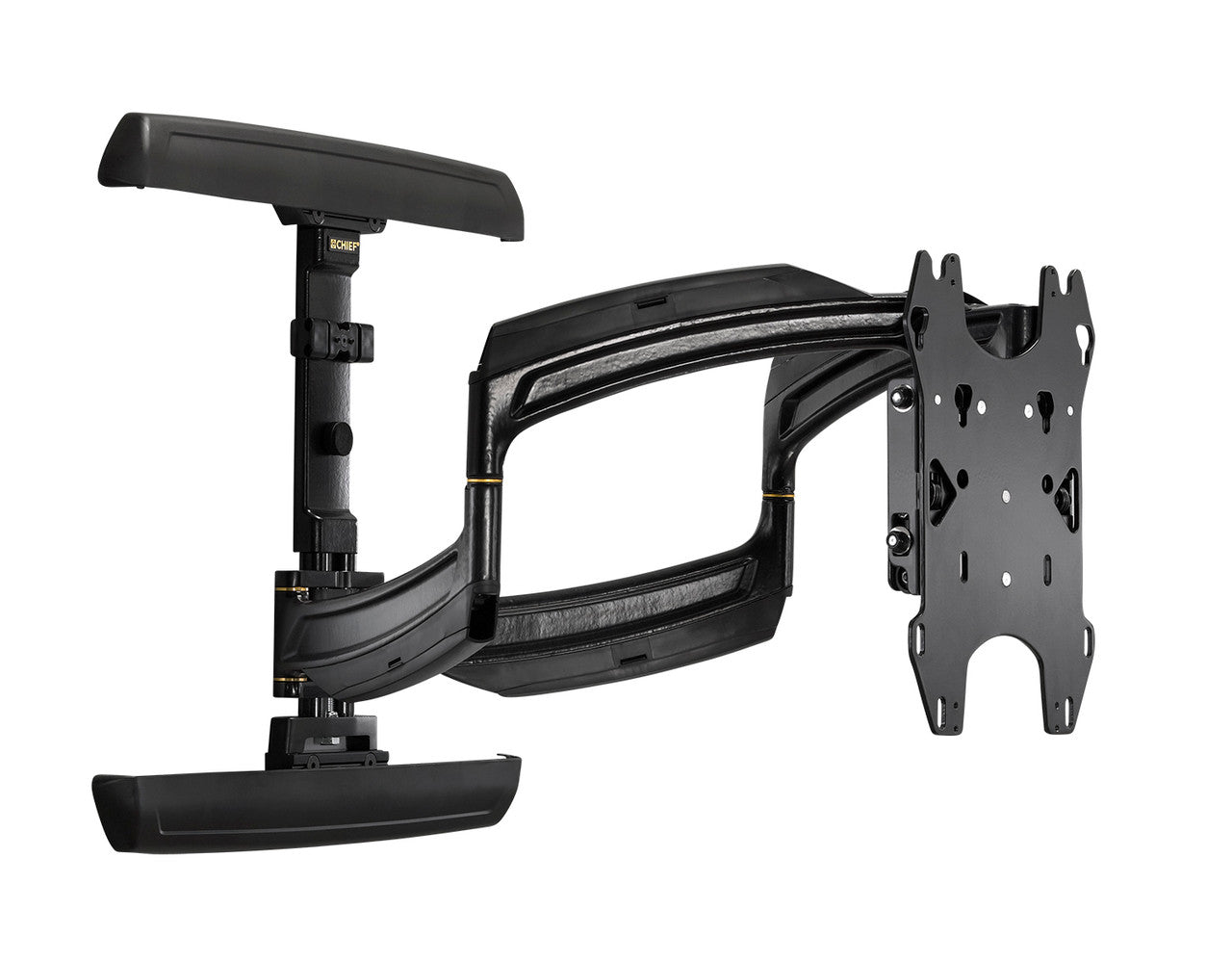

A lightweight, low-profile full-motion wall display mount for TVs 42-75". Easily installs with one person by mounting the top rail and sliding on the assembly.

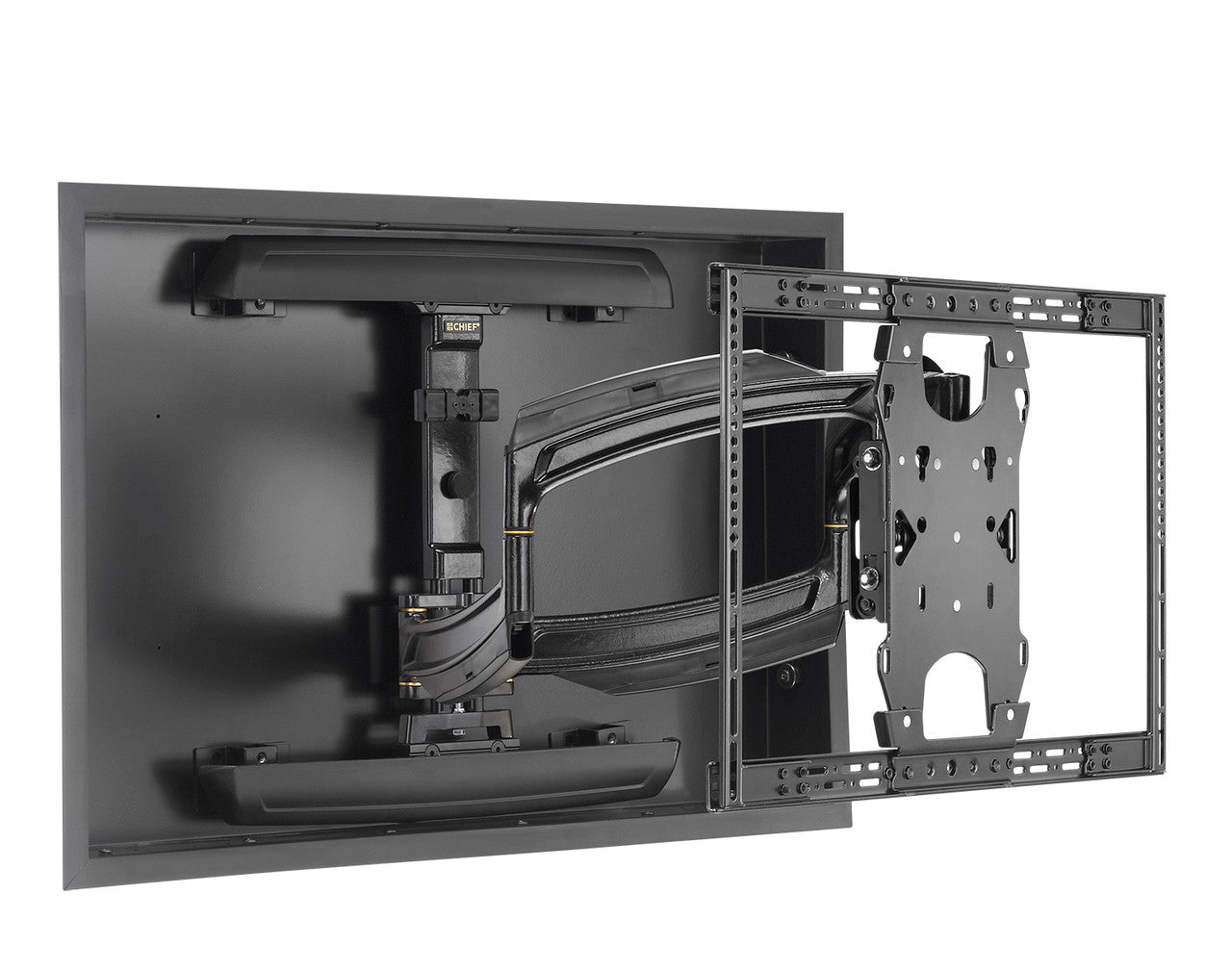

In-wall installation available when TA500 purchased with mount.
 |
Diagram See this mount as part of the ultimate motion-based, auto-tracking conference room. See the diagram |
Specification
Dimensions & Measurements
| Lateral Shift | 16 in (40.6 cm) |
| Maximum Extension | 25 in (63.5 cm) |
| Maximum Screen Thickness | 3" (76mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Shipping Weight | 55 lbs (25 kg) |
| Typical Screen Size | 42" - 75" (1067mm - 1905mm) |
| Wall Stud Compatibility In | Dual Stud |
| Weight Capacity | 125 |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +0° / -15° |
| VESA Mounting Pattern | 100x100mm-800x400mm |
