Overview

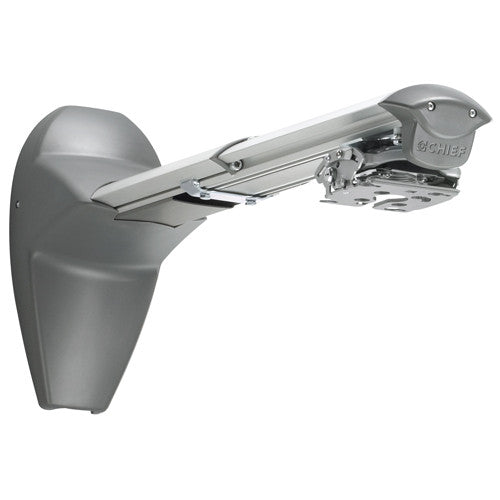

The WM120AUS projector short throw kit includes single stud short throw extension arm (WM120S) and Universal Mini RPA Elite projector mount (RSMAUS) to provide unparalleled flexibility, precision and strength.
- Also supports wall-mounted long-throw projectors.
- Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- Extension from wall, 16-28.50" (406-724 mm)
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Includes short throw arm and RSMAUS Universal Mini RPA Elite projector mount
- Now includes new universal interface to further reduce installation time
- Includes hardware for wood stud, steel stud and concrete wall construction
Specification
Dimensions & Measurements
| Depth | 34.2 |
| Extension | 16" - 29" (40.64cm - 73.66cm) |
| Height | 14.2 |
| Overall Dimensions | 14.2" x 7.3" x 34.2" (360 x 185 x 869 mm) |
| Shipping Weight | 24.8 lbs (11.3 kg) |
| Weight Capacity | 25 |
| Width | 7.3 |
Characteristics & Features
| Adjustments | Pitch: 3° |
| Application | Wall |
| Color | Silver |
| Interface Type | Projector |
| Solution Type | Universal |
