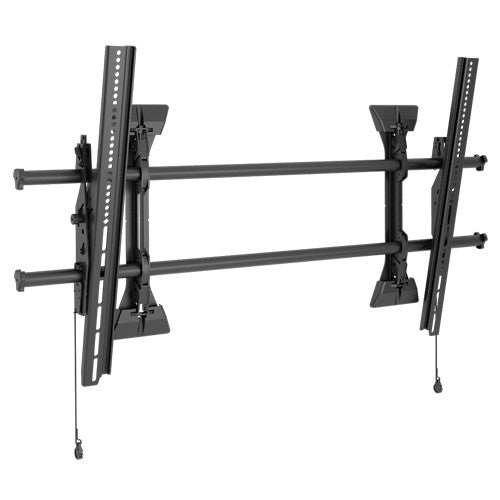

Overview
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
 | Diagram |
|
|
Selection Guide Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide |
Specification
Dimensions & Measurements
| Depth | 2.5 in (6.4 cm) |
| Height | 24.5 in (62.2 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Max Screen Size | 6 in (15.2 cm) |
| Maximum Screen Thickness | 6" (152mm) |
| Minimum Depth | 2.5 in (6.4 cm) |
| Shipping Weight | 27.24 lbs (12.4 kg) |
| Typical Screen Size | 55-100" (1397mm - 2540mm) |
| Wall Stud Compatibility In | 24" - 42" (610mm - 1067mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 42.75 in (108.6 cm) |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | +5° / -12° |
| VESA Mounting Pattern | 100 x 100 mm - 1070 x 600 mm |
