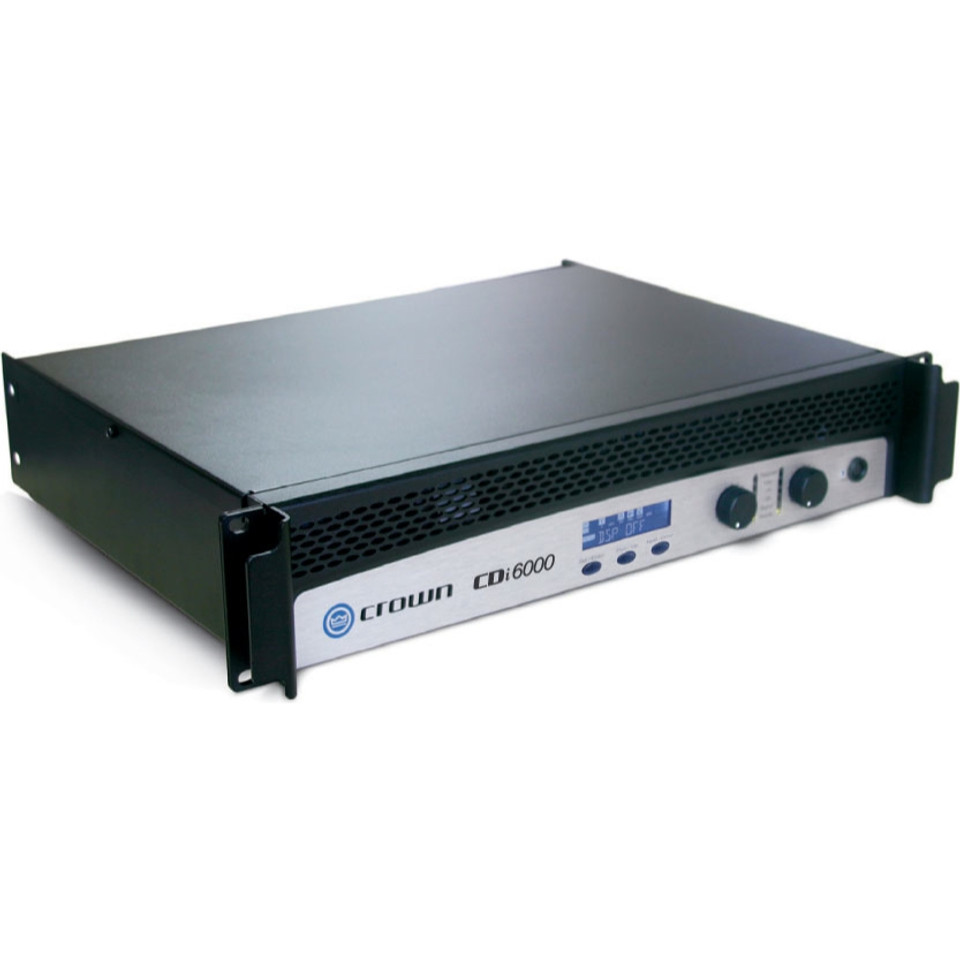

Crown CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000 CDi 2000 CDi 4000 and CDi 6000. All are rugged and lightweight and offer unmatched value in their class.
•Extremely versatile; rated for 2- 4- 8-ohm loads and 70V and 140V outputs.
•Switch-mode universal power supply.
•Intuitive front-panel LCD screen for quick easy configuration.
•Onboard digital signal processing includes Live Sound > Signal Processing > Crossovers EQ filters delay and output limiting.
•Up to 20 user defined DSP presets are available.
Specifications:
| Frequency Response | 20Hz - 20kHz (@ 1W into 4 Ohms) |
| Sensitivity | 1.4V @ 8 Ohms |
| Signal to Noise Ratio | 100dB |
| Voltage Gain | Not Specified by Manufacturer |
| Load Impedance | 2-8 Ohms (Stereo) 4-16 Ohms (Bridge-Mono) |
| Input Impedance | 20 kOhms, Balanced 10 kOhms, Unbalanced |
| Output Power | 3000W @ 2 Ohms Dual (Per Channel) 2100W @ 4 Ohms Dual (Per Channel) 1200W @ 8 Ohms Dual (Per Channel) 6000W @ 4 Ohms Bridge-Mono 2500W @ 70V Dual (Per Channel) 5000W @ 140V Bridge-Mono |
| Damping Factor | > 500 |
| Crosstalk | > 70dB |
| Max Input Signal | +22dBu, Typical |
| Inputs | 2 x 3-Pin Removable Phoenix-Type |
| Outputs | 4-Position Barrier Strip with Connectors for Dual Loudspeakers or Bridge-Mono Loudspeaker |
| Power | 100V, 120V-240V, 50/60Hz |
| Dimensions (WxHxD) | 19 x 3.5 x 16.2" (483 x 89 x 412mm) |
| Weight | 24 lbs (10.9kg) |
| Packaging Info | |
|---|---|
| Package Weight | 30.0 lb |
| Box Dimensions (LxWxH) | 23.0 x 23.0 x 7.0" |
