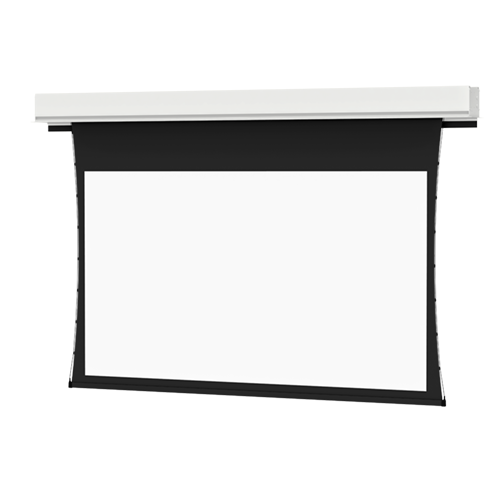

This Tensioned Advantage Deluxe Electrol 16:10 Wide Format Motorized Projection Screen fromDa-Lite has a 57.5 x 92.0" viewing area with a DA-Mat flame retardant and mildew-resistant finish.
This is a smooth, white, and flexible finish with a 1.1 Gain rating and 60 "
This Tensioned Advantage Deluxe Electrol 16:10 Wide Format Motorized Projection Screen fromDa-Lite has a 57.5 x 92.0"" viewing area with a DA-Mat flame retardant and mildew-resistant finish.
This is a smooth, white, and flexible finish with a 1.1 Gain rating and 60
Specifications
| Style | Tensioned Advantage Deluxe Electrol |
| Design | Motorized / Front projection |

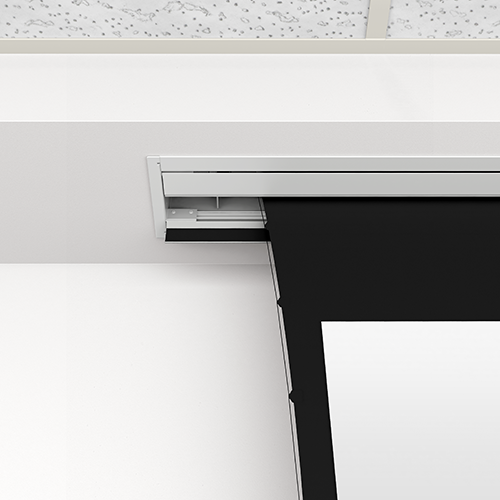

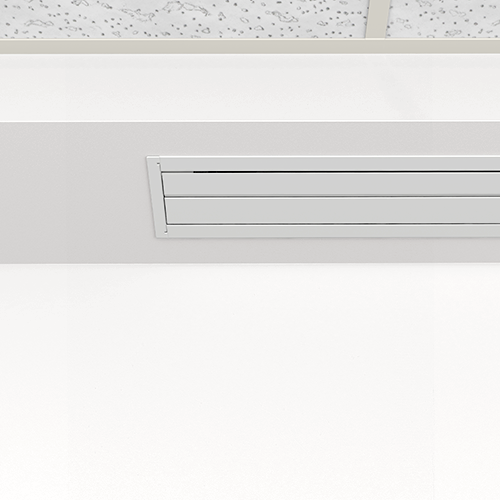

| Mount | Ceiling recessed |
| Finish | DA-Mat; vinyl, flame retardant and mildew-resistant |
| Tension Control | Tensioned |
| Keystone Control | No |
| Dimensions | Dimensions |
|---|---|
| Image Size | 57.5 x 92.0" (146.1 x 233.7 cm) |
| Diagonal | 109" (276.9 cm) |
| Format / Aspect Ratio | Wide / 16:10 |
| Gain / Viewing Angle | 1.1 / 60° (L/R) |
| Masking Options | None |
| Controls | Controls |
|---|---|
| Voltage | 120VAC / 60 Hz Not more than 2.4 amp |
| Integrated Control | Pre-set, adjustable limit switches to automatically stop screen in the up and down positions Integrated low voltage control unit Three-position control switch |
| Control Options | Wireless Remote Control for LVC Radio Frequency Remote Radio Frequency Range Extender Infrared Remote Video Projector Interface Control - built-in SCB-100 RS-232 Serial Control Board - built-in NET-100 Ethernet-Serial Adapter SCB-100 RS-232 Serial Control Board - external NET-100 Ethernet-Serial Adapter |

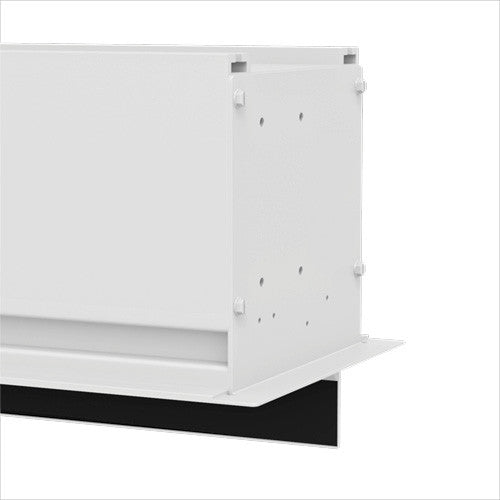

| Casing | Casing |
|---|---|
| Color | White |
| Material | Extruded aluminum |
| Length | 120.75" (307.0 cm) |
| Shipping Weight | Approx. 145.0 lb (65.8 kg) |
| Packaging Info | Packaging Info |
|---|---|
| Package Weight | 148.0 lb |
| Box Dimensions (LxWxH) | 124.0 x 13.0 x 10.0" |
"
