Overview

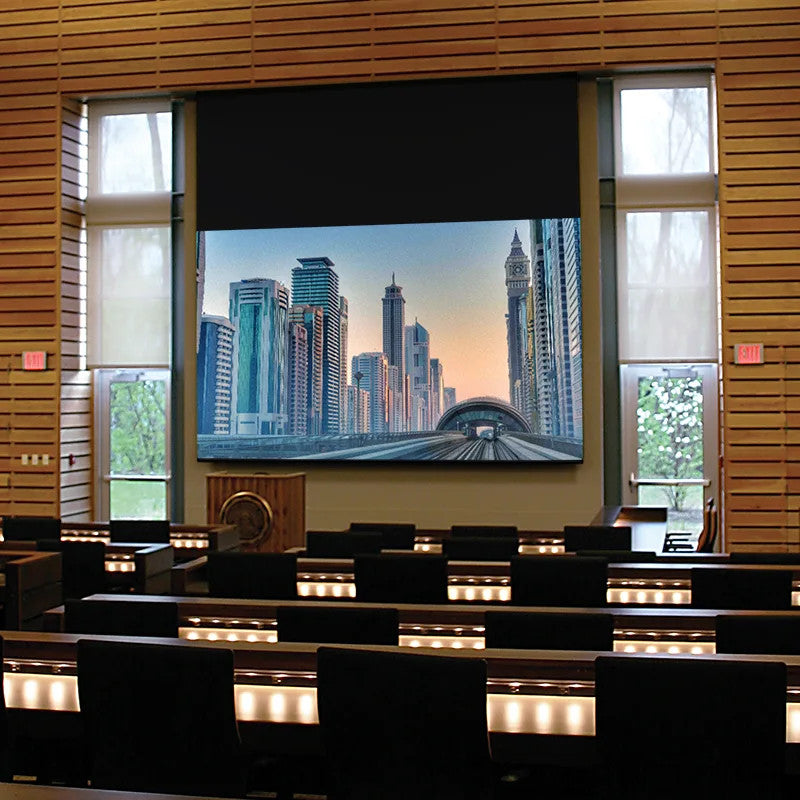

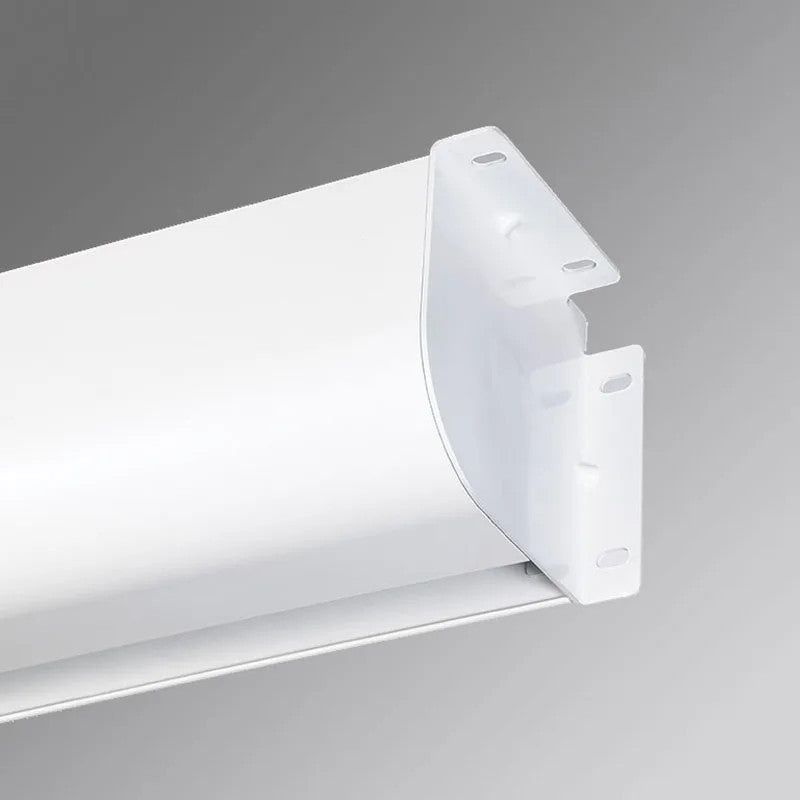

Designed for large venues, Targa XL works well in conference and lecture halls, auditoriums, hospitals, hotels, boardrooms, or church applications. Housed in an attractive white, scratch-resistant aluminum case. Matching endcaps form universal mounting brackets for easy wall- or ceiling-mounting. Motor is mounted inside the roller providing this electric projection screen with a clean, low-profile appearance. This free-hanging screens maintain flatness due to the weight of the screen and bottom dowel.
Specifications
- Case dimensions: 6-3/4" h x 6-3/4" d (17 cm x 17 cm) including endcaps with universal mounting brackets.
- Housed in a fabricated extruded aluminum case with curved front, L-shaped back/top cover, and scratch-resistant white polyester finish (standard), black available upon request.
- Maximum image width up 16’ (488 cm) wide, depending on surface selection.
- NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Includes one 110-120V, 3-position switch (standard). Other control options are available.
- Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP).
- Custom sizes available.
- UL Listed.
Sizes & Part Numbers
- Part number: 116488
- Surface material: Matt White XT1000E
- Image Format: 16:10
- Diagonal size: 222"
- Image/Viewable area: 117 1/2" x 188"
- Image/Viewable area 2:
- Overall size: 122" x 192"
- Standard 12" black drop:
- Case length: 200 7/8"
- Height range:
- Closed dimensions:
- Product weight: 218 pounds
- Shipping weight: 280 pounds
