Overview

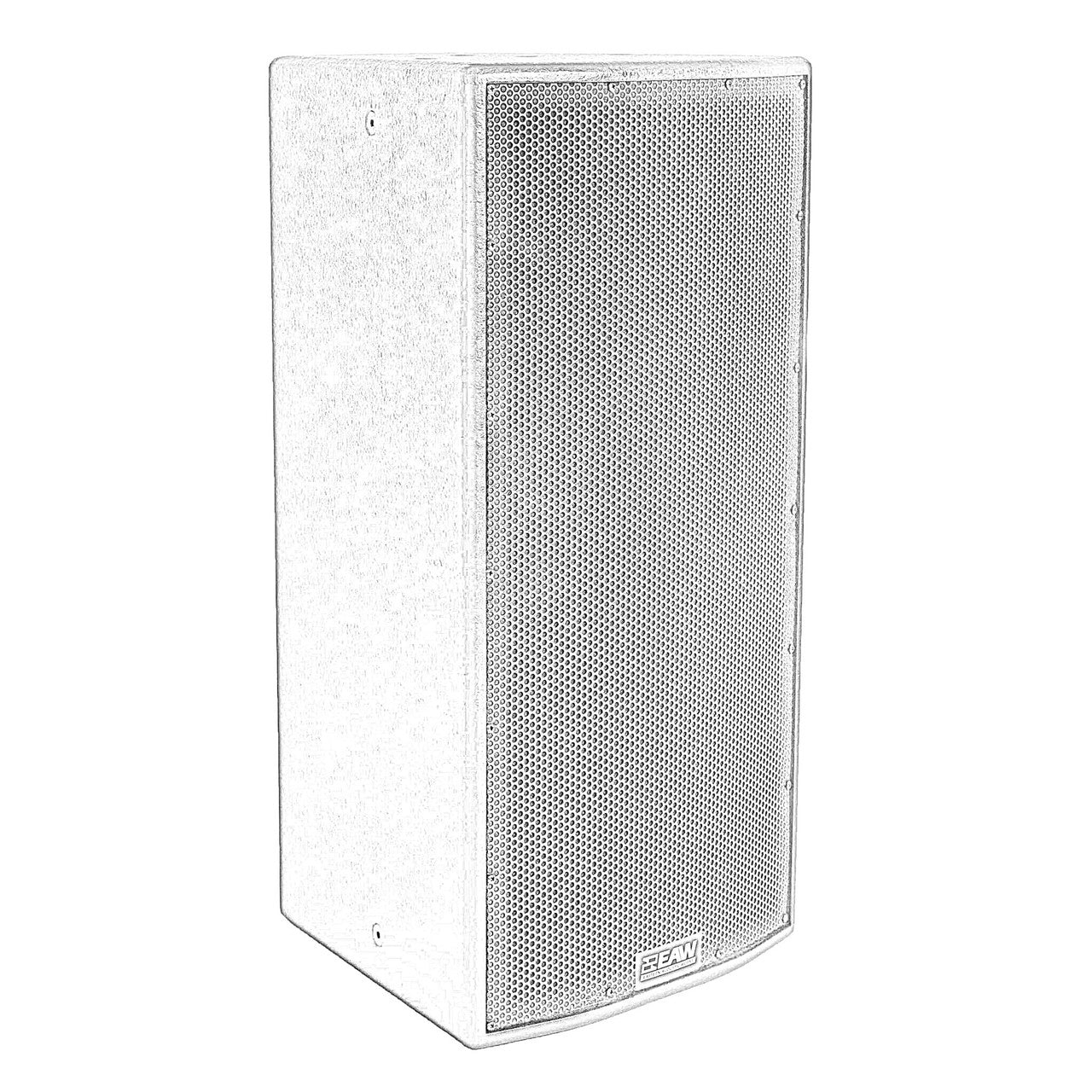

The MK Series is EAW’s state-of-the-art, passive, two-way systems specifically engineered for permanent installation.
The series includes three sub-series each of which shares a common enclosure as well as three dedicated subwoofer systems. All MK Series systems feature large-format HF horns that maintain pattern control throughout the crossover region, enabling EAW’s beamwidth matching crossover technology that improves performance through the crossover region.
Specifications
- Frequency Response: 65hz – 16khz
- Max SPL: 141 dB
- Operating Mode
- Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
- External Signal Processing: High pass filter; DSP w/2-way filters
- Subsystem
- LF – 1x 12 in. cone
- HF – 1x 1.4 in. exit, 3 in. voice coil compression driver
- Nominal Beamwidth
- Horizontal: 60
- Vertical: 45
- Power Handling
- Full Range: 600W @ 8ohms
- LF: 600W @ 8ohms
- HF: 150W @ 8ohms
- Connections: Barrier Strip
- Dimensions
- Height: 30 in (762 mm)
- Width: 15.54 in (394.7 mm)
- Depth: 14.75 in (374.7 mm)
- Weight: 60 lbs (27.2 kg)
