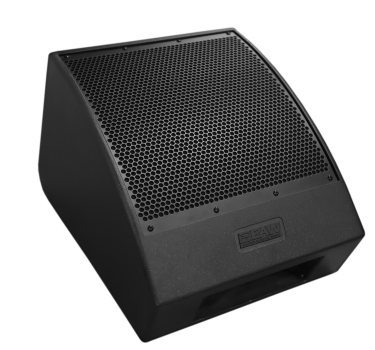

Overview
Features Include:
- High output, coaxial stage monitor.
- Patented CSA coaxial horn provides superior control, fidelity and output.
- Integrated kickstand supports alternative deployment angle.
- Multiple input options improves cable management utilizing fewer cable runs
- Companion UXA4403 amplifier.
- Passive operation for maximumamplifier utilization.
Specifications
- Frequency Response: 60Hz-20kHz
- Max SPL: 135dB
- Operating Mode: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)
- Subsystem
- LF Transducer, Loading 1×12″ cone, 2.5″ VC, Vented
- HF Transducer, Loading 1×1-in exit, 44mm voice coil compression driver, Concentric Summation Array (CSA) loaded
- Nominal Beamwidth: 90 x 60 degress, rotatable
- Power Handling: 600W @ 8ohms
- Connections: 4x Nuetrik NL4 (2x on bottom, 2x inside port)
- Dimensions: 12.8 x 14.1 x 21.5in (326 x 357 x 546mm)
- Weight: 35 lbs (15.9kg)
