Overview:

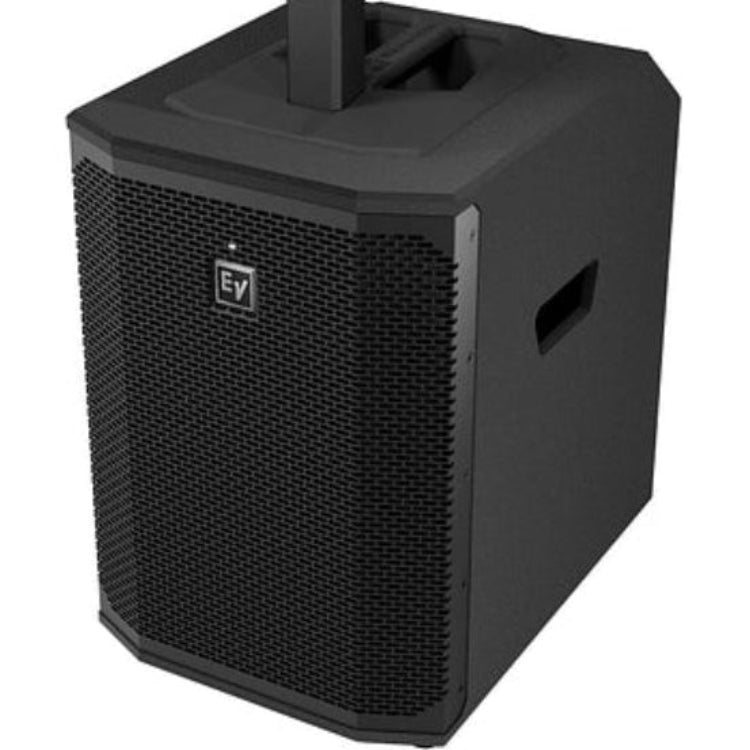

The Electro-Voice EVOLVE50-SB-G2-US is the powered subwoofer and electronics base of the EVOLVE 50 G2 portable column loudspeaker system. It features a high-output 12-inch subwoofer, integrated DSP processing, Bluetooth audio streaming, QuickSmart Mobile control, QuickSmart Link connectivity, and built-in digital mixing capabilities. Designed for mobile entertainers, houses of worship, event venues, corporate AV, and live performance applications, the EVOLVE 50 G2 delivers professional sound reinforcement with fast deployment and compact portability.
Features:
12-inch high-output subwoofer
1500W Class-D amplification platform
QuickSmart DSP processing
QuickSmart Link system expansion
Bluetooth audio streaming
QuickSmart Mobile app control
Switchable 48V phantom power
Integrated digital mixer functionality
Fast 3-2-1 setup architecture
Portable professional column-array platform
Designed for live sound and installed applications
Specs:
| Product Type | Powered Column System Subwoofer/Base Unit |
| System Family | EVOLVE 50 G2 |
| LF Driver | 12" Subwoofer |
| Amplifier Type | Class-D |
| Total Amplifier Power | 1500W |
| Maximum SPL | 129 dB |
| Frequency Response (-3 dB) | 43 Hz - 20 kHz |
| Frequency Range (-10 dB) | 37 Hz - 20 kHz |
| Coverage Pattern | 120° Horizontal x 40° Vertical |
| QuickSmart DSP | Yes |
| QuickSmart Link | Yes |
| Bluetooth | Bluetooth Audio Streaming |
| Mobile App Control | QuickSmart Mobile |
| Phantom Power | Switchable 48V |
| Power Requirement | 100-240 VAC, 50/60 Hz |
| Dimensions | 20.7 x 13.5 x 21.8 in |
| Volume | 6,086.6 in³ |
| Weight | 44.7 lb |
| Shipping Dimensions | 27.6 x 15.6 x 23.4 in |
| Shipping Volume | 10,078.9 in³ |
| Shipping Weight | 54.3 lb |
