Overview:

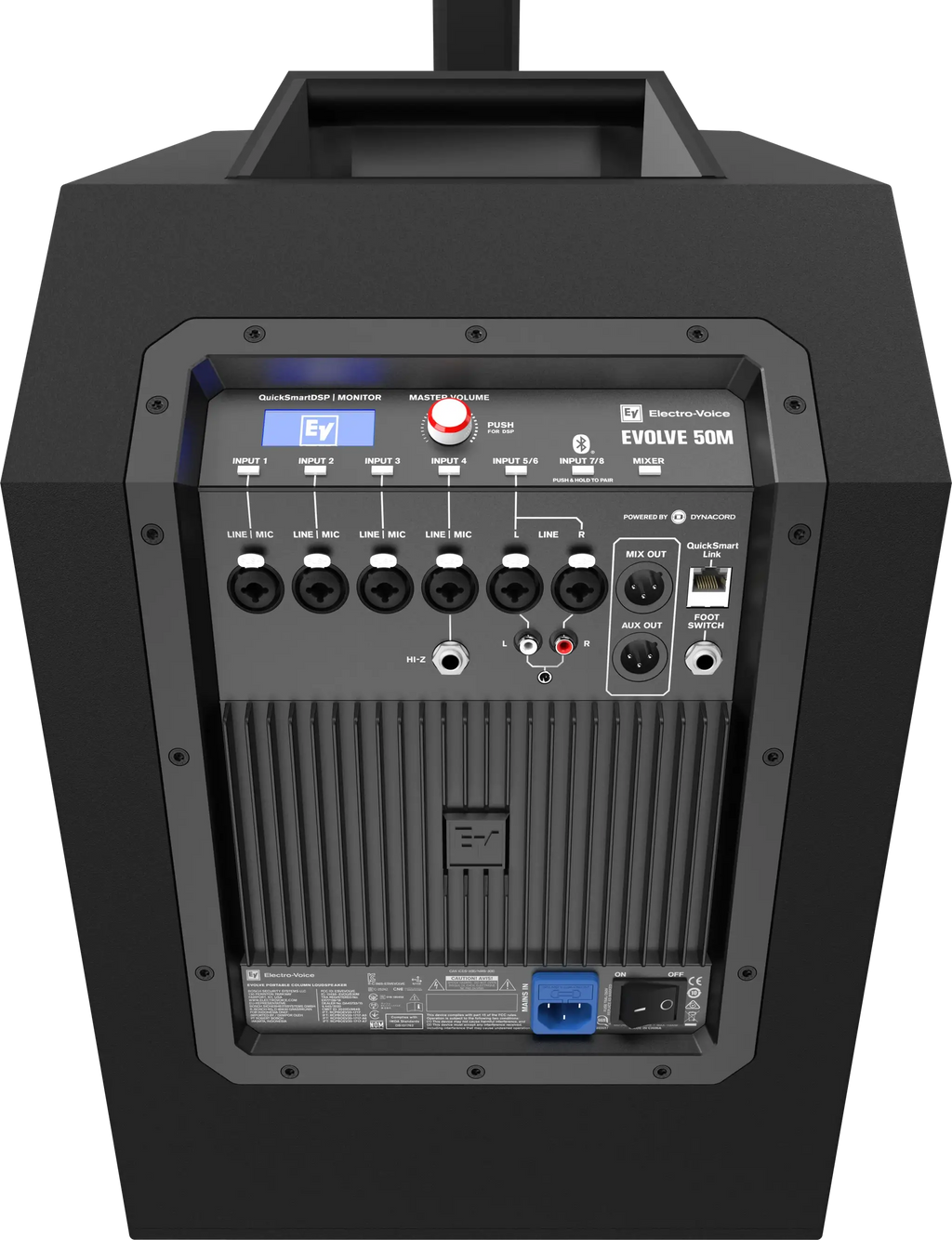

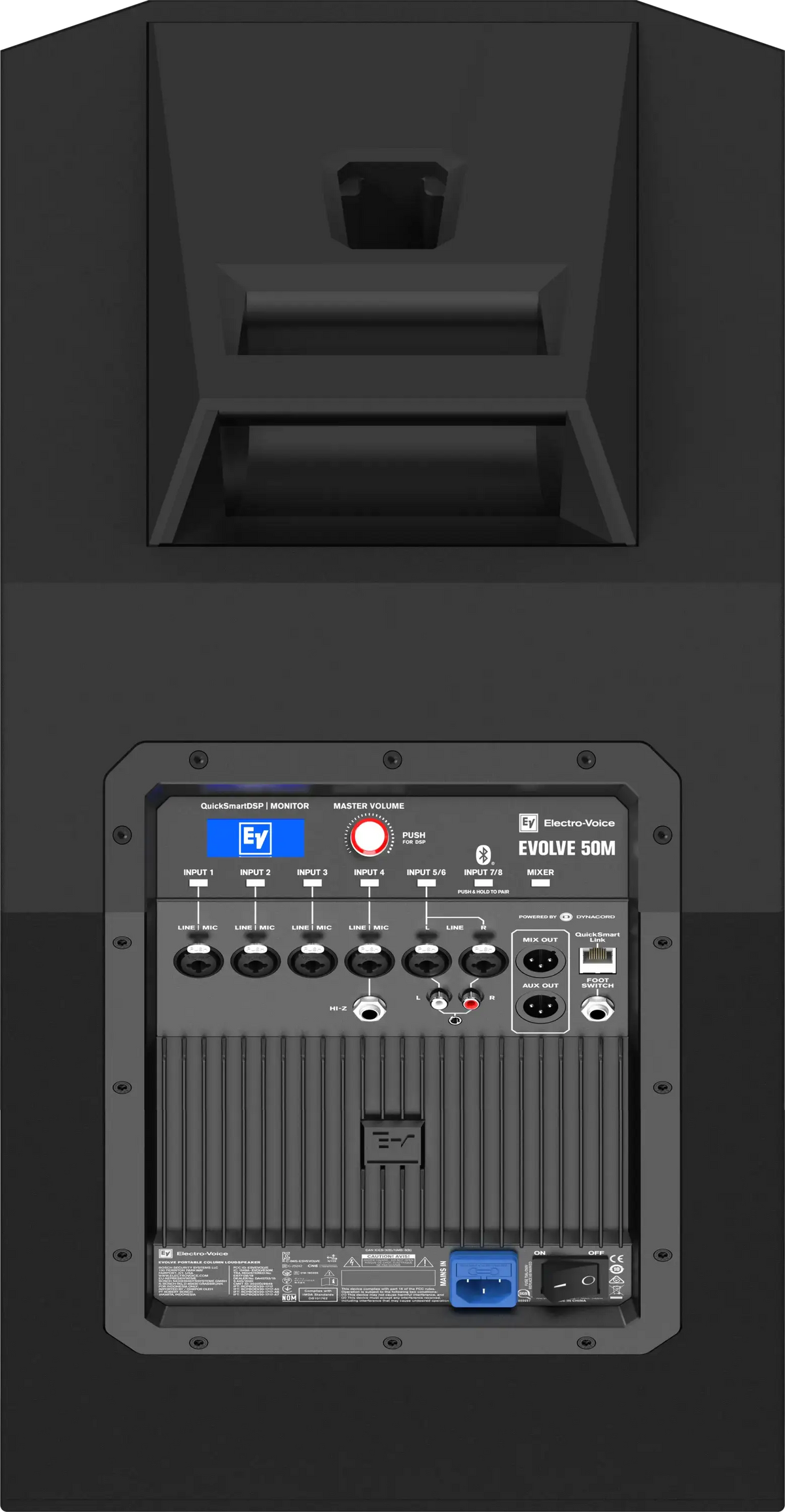

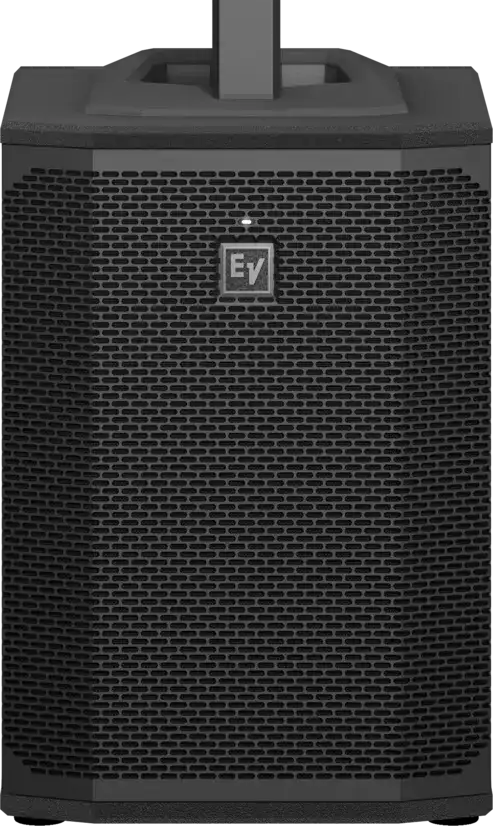

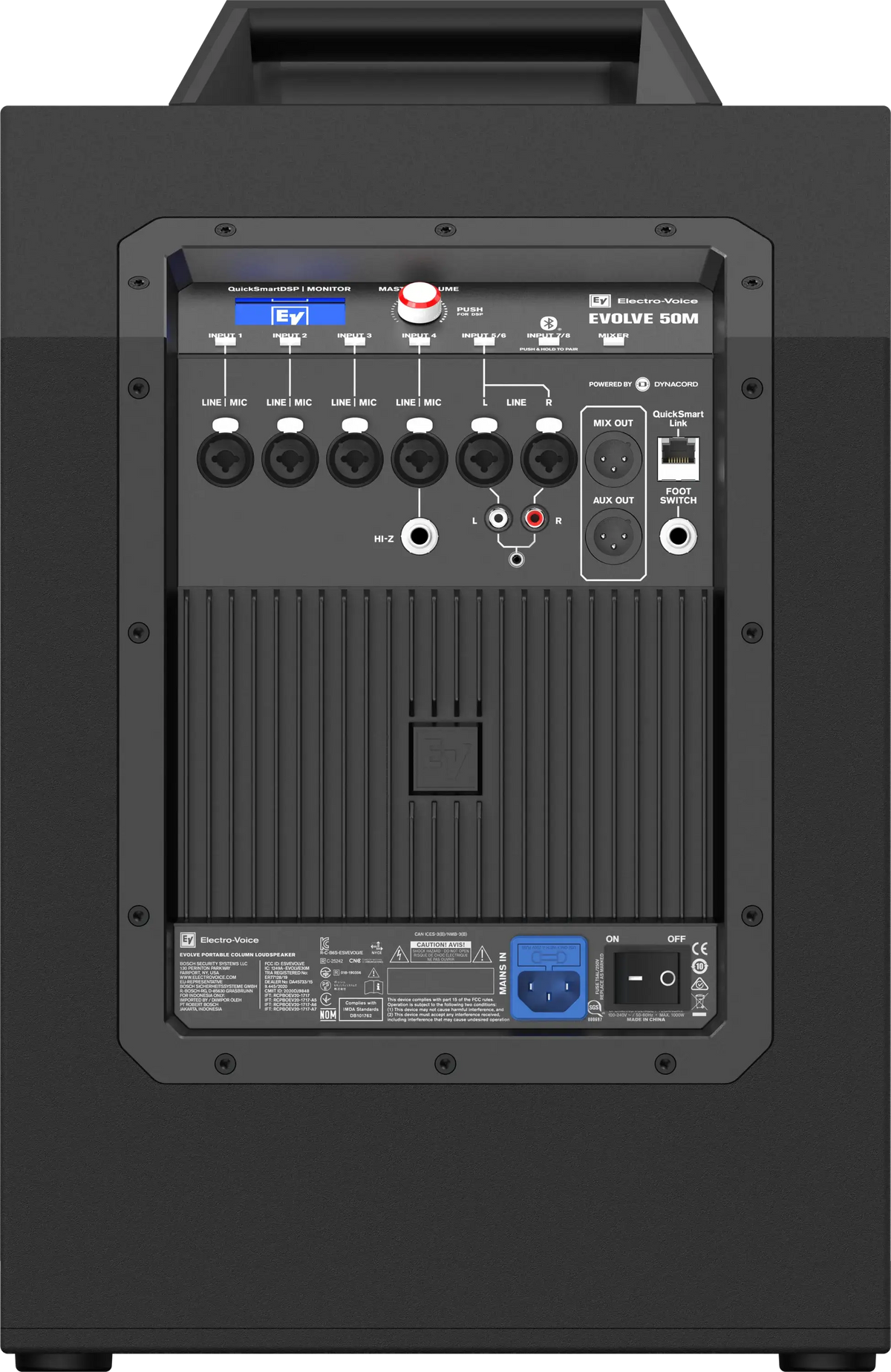

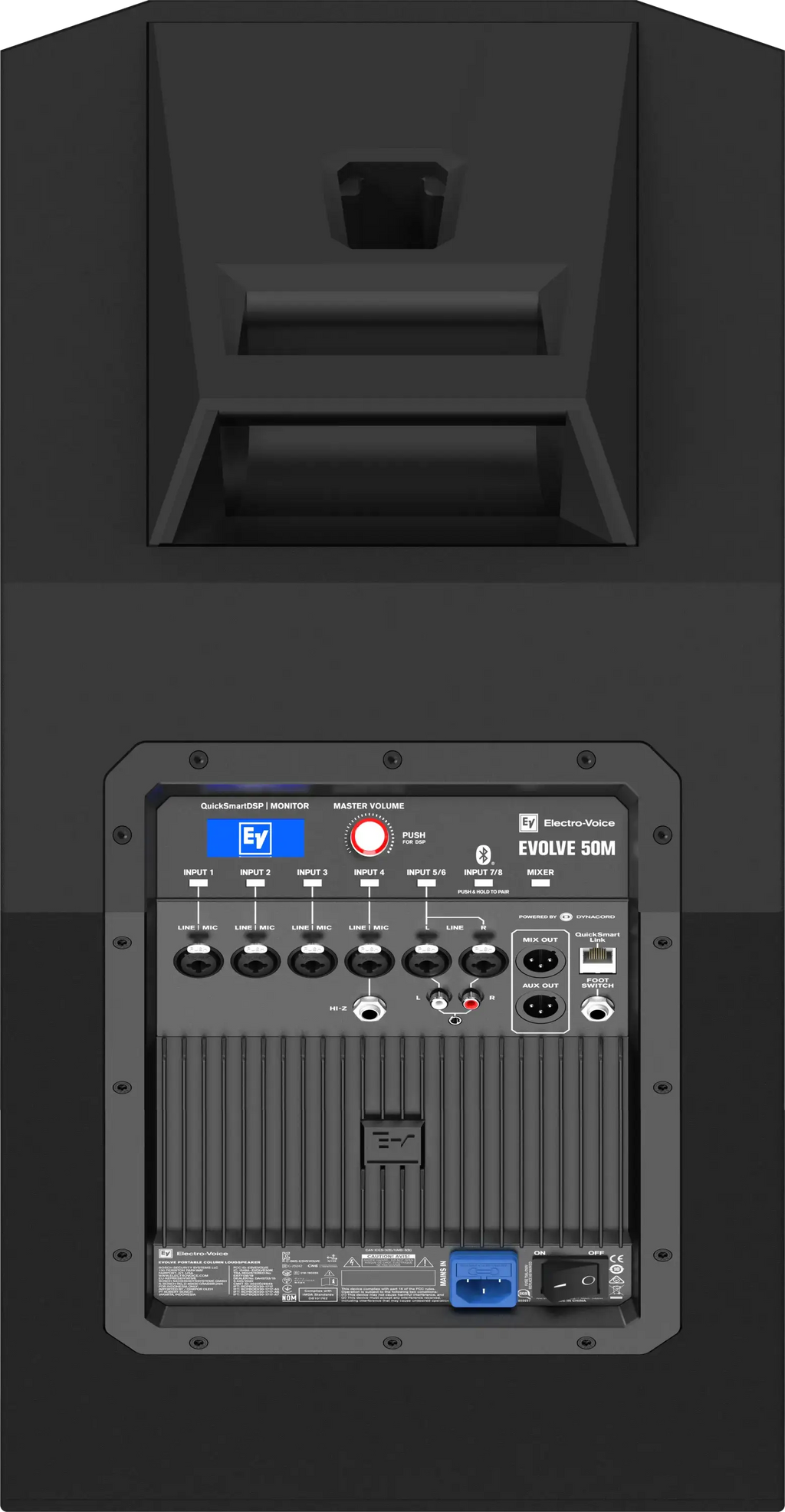

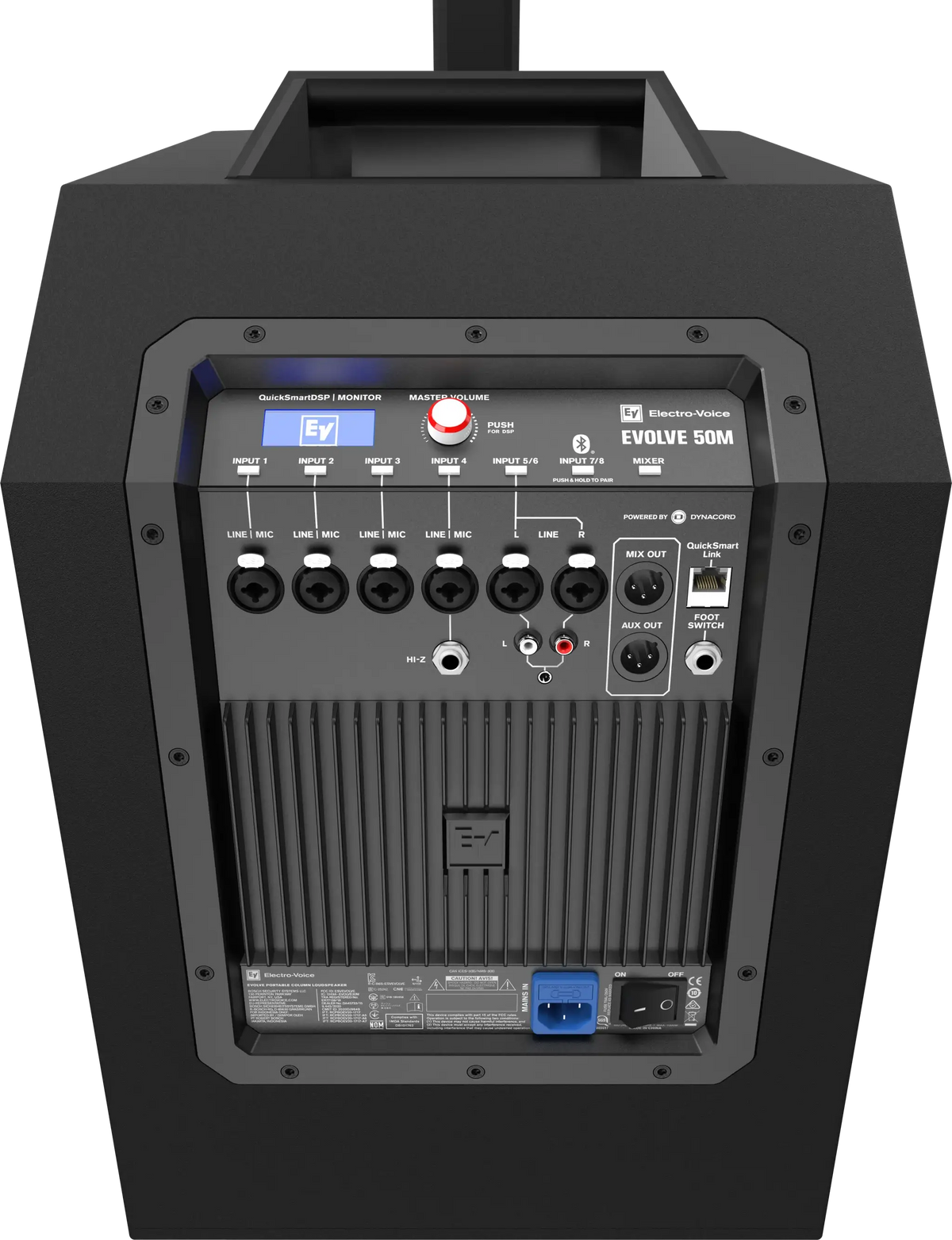

The Electro-Voice EVOLVE50M-SB-G2-US is the powered subwoofer and mixer base section of the EVOLVE 50M G2 portable column loudspeaker system. It incorporates a 12-inch low-frequency driver, integrated 8-channel digital mixer, Bluetooth audio streaming, QuickSmart DSP processing, QuickSmart Link networking, and app-based system control. Designed for live performance, DJs, musicians, houses of worship, event production, hospitality venues, and corporate AV applications, the EVOLVE 50M G2 platform delivers professional sound reinforcement with integrated mixing and rapid system deployment.
Features:
Powered subwoofer base for EVOLVE 50M G2
Integrated 8-channel digital mixer
Dynacord-designed preamps and DSP
QuickSmart Link networking
Bluetooth audio streaming
QuickSmart Mobile app control
30 onboard effects
120° x 40° coverage architecture
12-inch high-output subwoofer
Professional portable PA platform
Optimized for live performance and installed applications
Specs:
| Product Type | Powered Subwoofer / Mixer Base |
| Manufacturer Part Number | EVOLVE50M-SB-G2-US |
| System Family | EVOLVE 50M G2 |
| Color | Black |
| LF Driver | 12" Subwoofer |
| Amplifier Type | Class-D |
| Total Amplifier Power | 1500W |
| Maximum SPL | 129 dB |
| Frequency Response (-3 dB) | 43 Hz - 20 kHz |
| Frequency Range (-10 dB) | 37 Hz - 20 kHz |
| Coverage Pattern | 120° Horizontal x 40° Vertical |
| Mixer | Integrated 8-Channel Digital Mixer |
| DSP | QuickSmart DSP |
| Bluetooth | Bluetooth Audio Streaming |
| QuickSmart Link | Yes |
| Mobile App Control | QuickSmart Mobile |
| Phantom Power | Switchable 48V |
| Inputs | Mic/Line Inputs, Stereo Inputs, Hi-Z Instrument Input |
| Effects | 30 Onboard Effects |
| Dimensions | 20.4 x 13.5 x 20.5 in |
| Volume | 5,645.4 in³ |
| Weight | 51.0 lb |
