Overview:

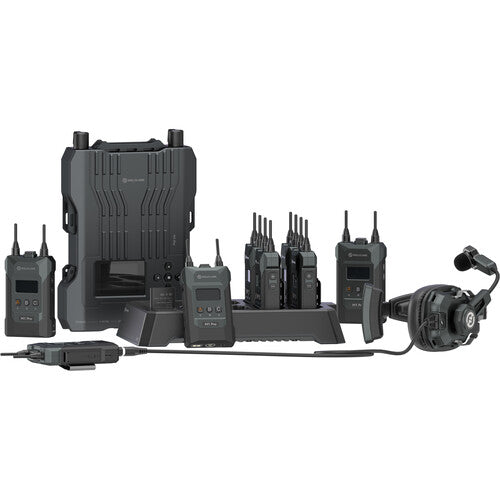

If you need a communication system for a production team, then the Solidcom M1 Pro Full-Duplex Wireless Intercom Solution from Hollyland is an ideal solution. This wireless intercom setup supports 8 team members—the maximum allowed— providing each of them with a wireless beltpack and professional, wired single-ear LEMO headset. Ideal for small- to medium-sized events (approximately 100 to 1000 guests), such as a concert, church function, or exhibition, the Solidcom M1 Pro system works to deliver clear and conversational communication without interference, and offers easy app or webpage-based setup.
1.9 GHz Full-Duplex Transmission for Enhanced Audio Quality
To avoid interference with other devices, the M1 Pro intercom system communicates over the 1.9 GHz spectrum and offers full-duplex conversations. With full duplex, you can talk to other team members as you would over the phone, with each party being able to talk and listen simultaneously.
Equipped with auto-frequency-hopping technology, the Solidcom M1 Pro automatically selects a clear frequency to provide interference-free communication.
Featuring advanced dual-mic environmental noise cancellation (ENC), high a 16 kHz sampling rate, professional electret-condenser microphones, and a wide 200 Hz to 7 kHz frequency response, Solidcom M1 Pro delivers broadcast-quality communication, no matter how loud or distracting the background noise is.
Stable, Long-Range Communication

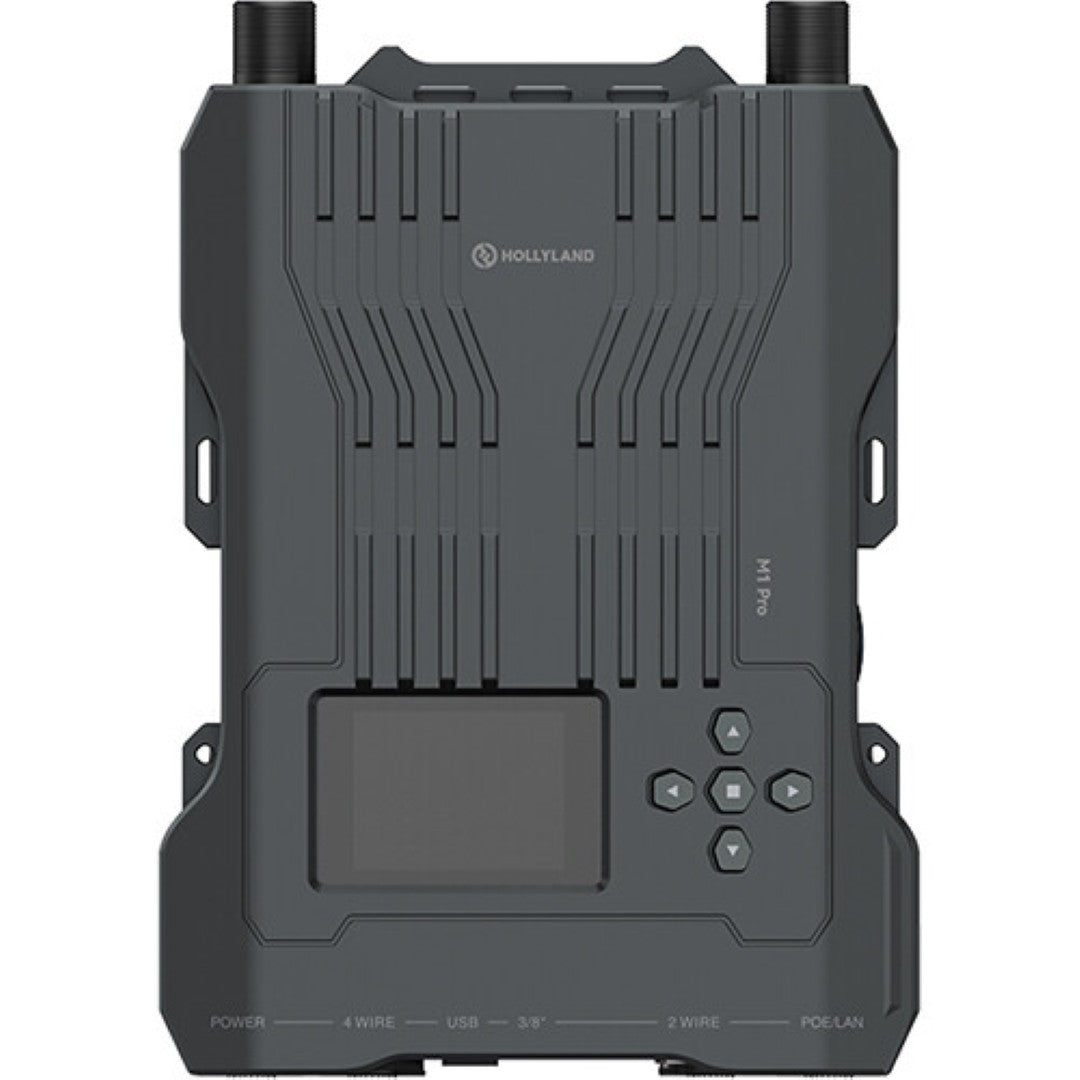

With a built-in panel antenna on the M1 Pro base station, the system provides an out-of-the-box communications solution in unobstructed venues such as houses of worship and concert halls.
The built-in panel antenna alone supports a range of up to 1300' in front of the base station and 160' behind. Attaching the two supplied external antennas provides reliable 360° transmission in a radius of approximately 985'—ideal for large rooms and venues, including stadiums and exhibition centers. Combining these 2 antenna options, Solidcom M1 Pro significantly improves on-site work efficiency and flexibility, and greatly extends transmission range.
Sidetone Function

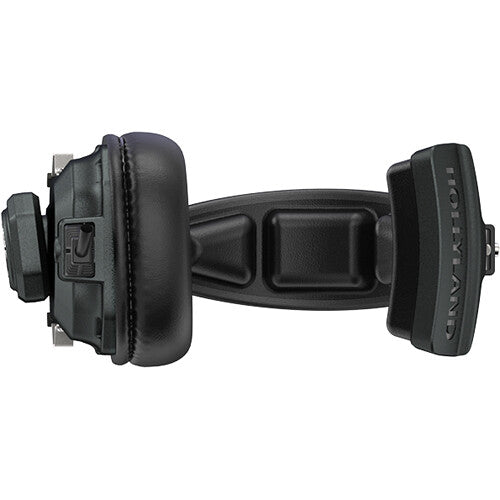

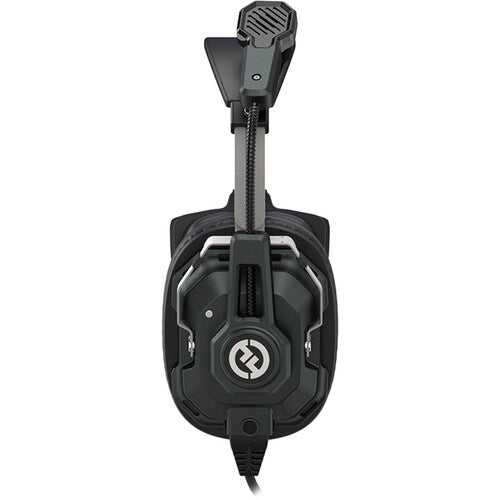

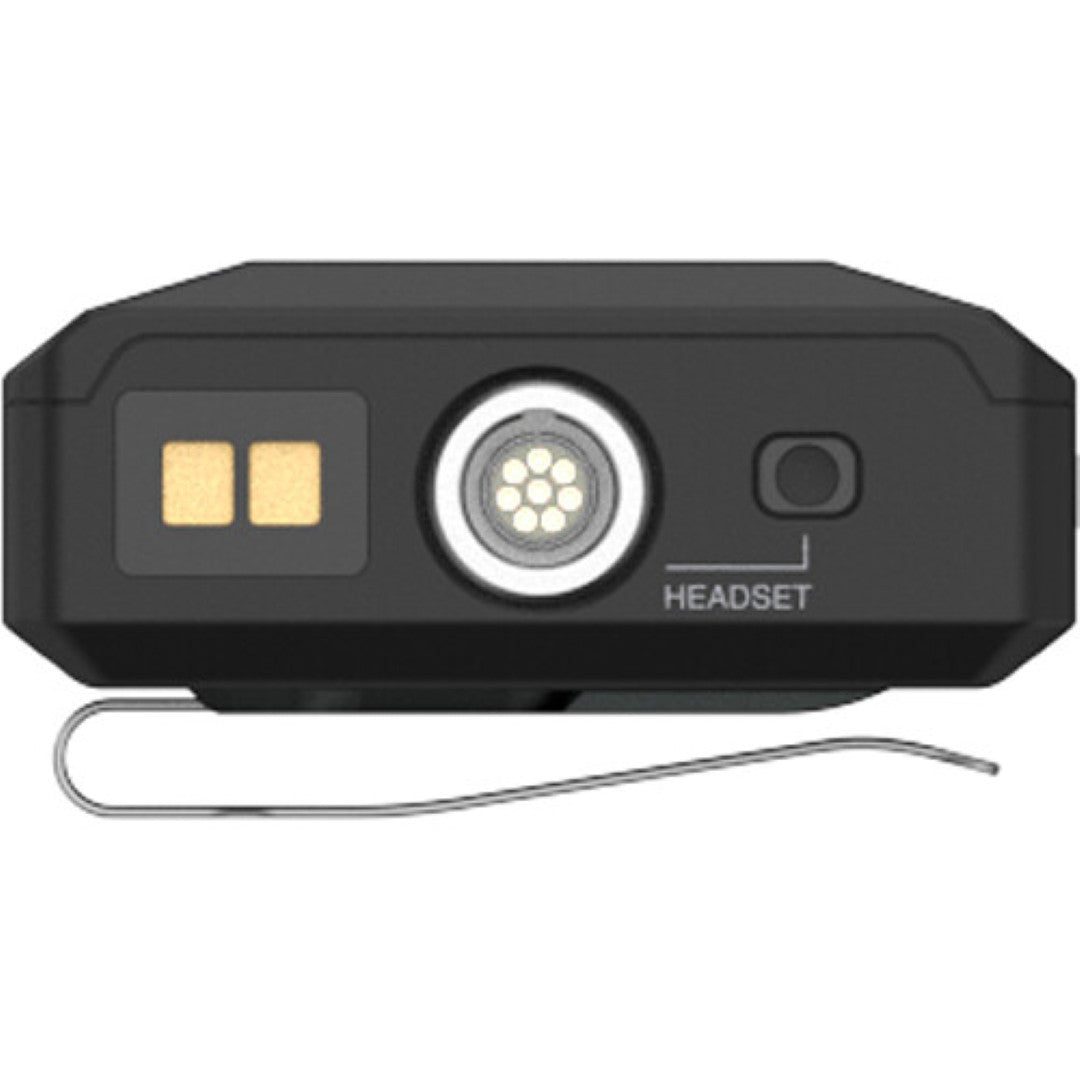

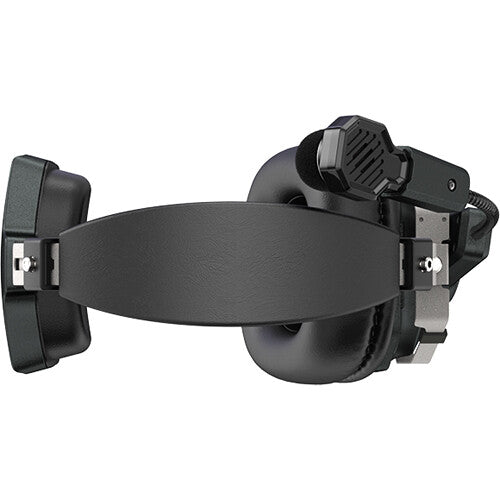

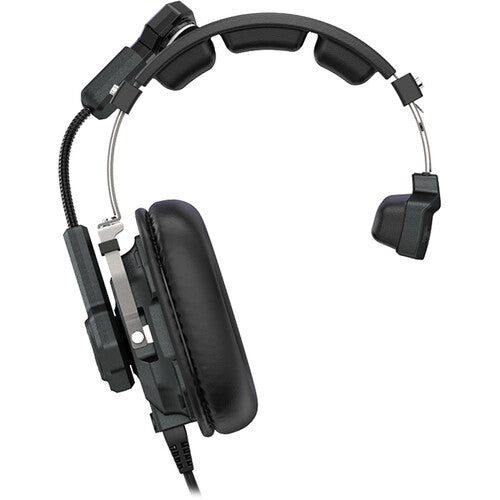

The Solidcom M1 Pro set includes professional LEMO headsets with intuitive microphone on/off control by raising or lowering the microphone boom. In addition, a standard 3.5mm jack on the beltpack supports third-party headsets, offering more possibilities for personalized use.
When you're alone at an event and need to ensure that your headset and beltpack are transmitting correctly, you can use the sidetone function to hear yourself through the headset. This helps to ensure that your mic is picking up your voice and your voice volume is properly set.
Easy Single-Tap Grouping
With the Solidcom M1 Pro system you can set up groups for team members such as lighting crew, camera crew, or PAs. You can do this by simply selecting the number of each beltpack in the group. Up to three groups can be created and managed through the base station, Solidcom app, or a private webpage.
Cascade Connection
If you need to expand your coverage and team support, you can utilize the cascade connection feature to join this system to a second Solidcom M1 Pro intercom system.
Link both base stations together with a 328' standard network cable or XLR cable, and use up to 24 headsets at the same time.
There are four different interface connectors: 2W XLR, 4W RJ45, PoE/LAN (Power over Ethernet) power supply, and cascading interfaces.
Out-of-Box Convenience

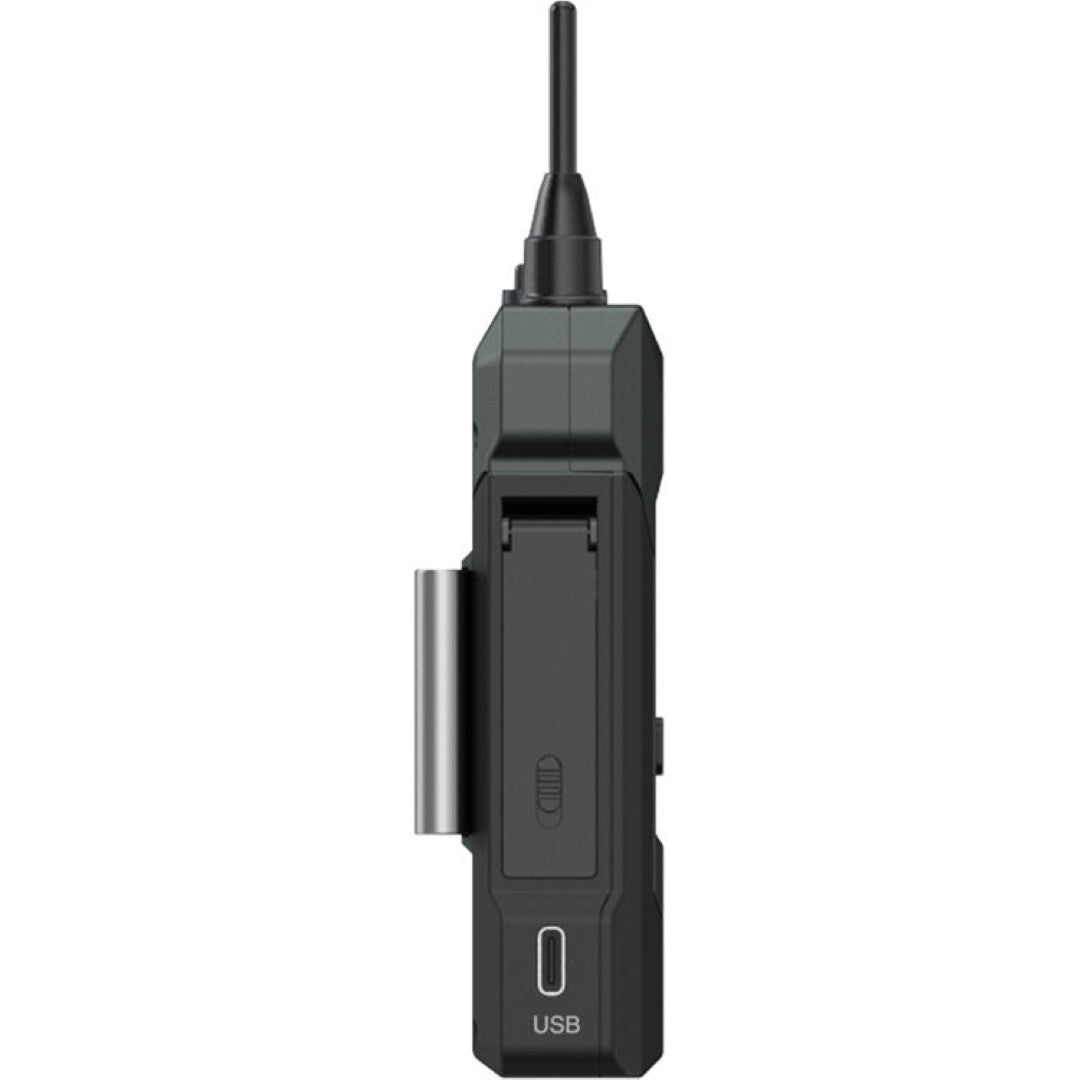

The beltpacks are paired at the factory and are ready to be used right out of the box. In the event of cross-area collaboration where changing or adding beltpacks is needed, users only need to connect the beltpacks to the base station via USB cables to pair and group the beltpacks.

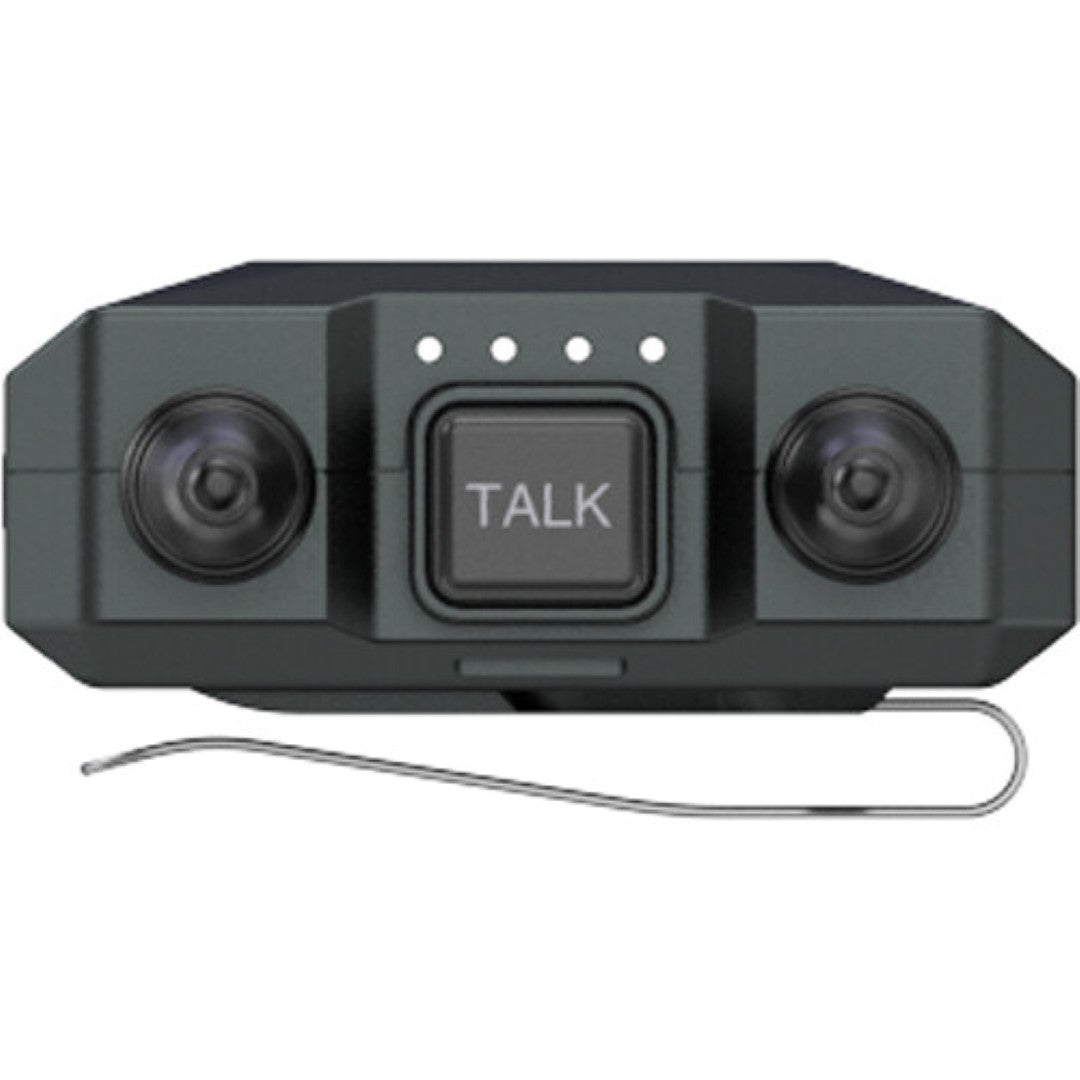

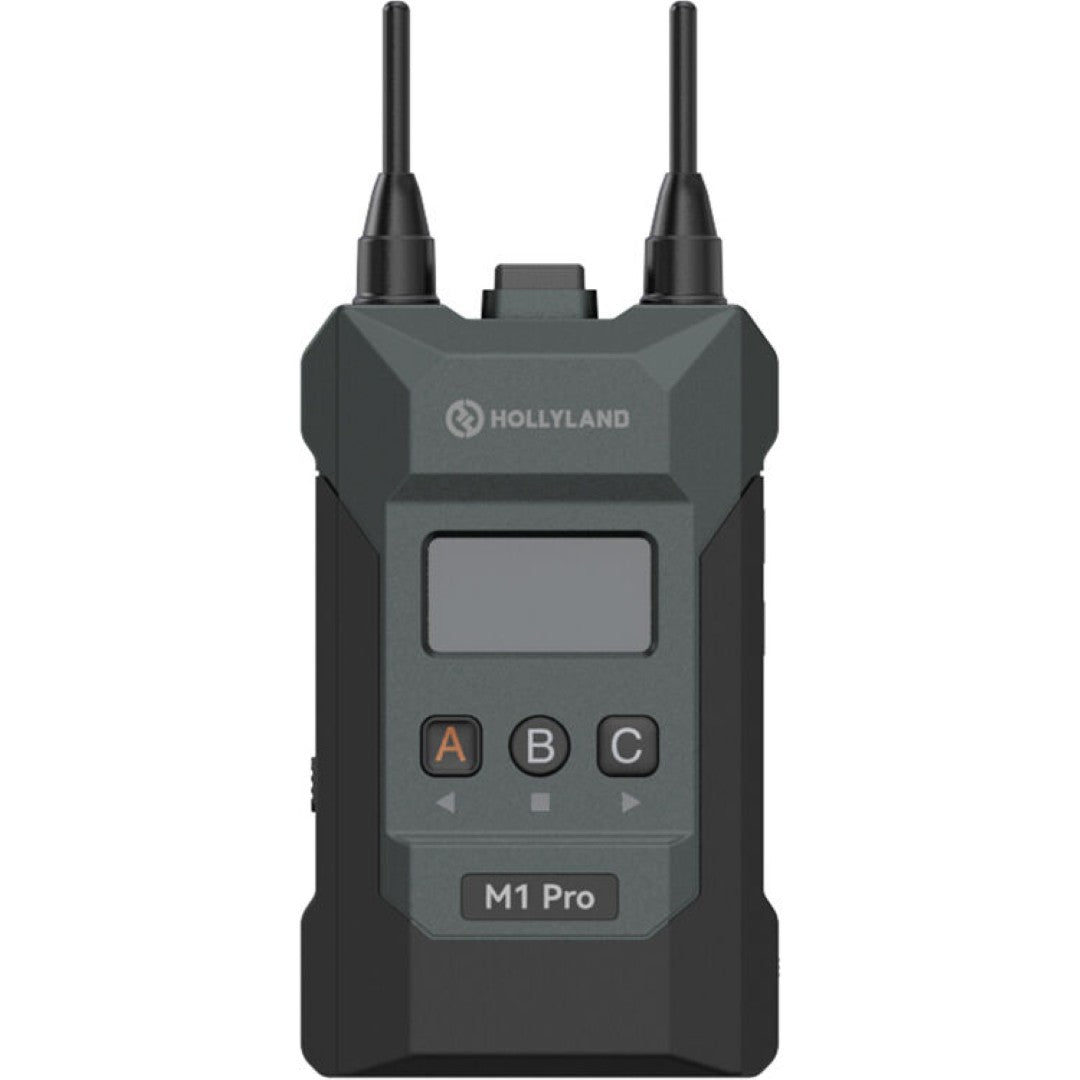

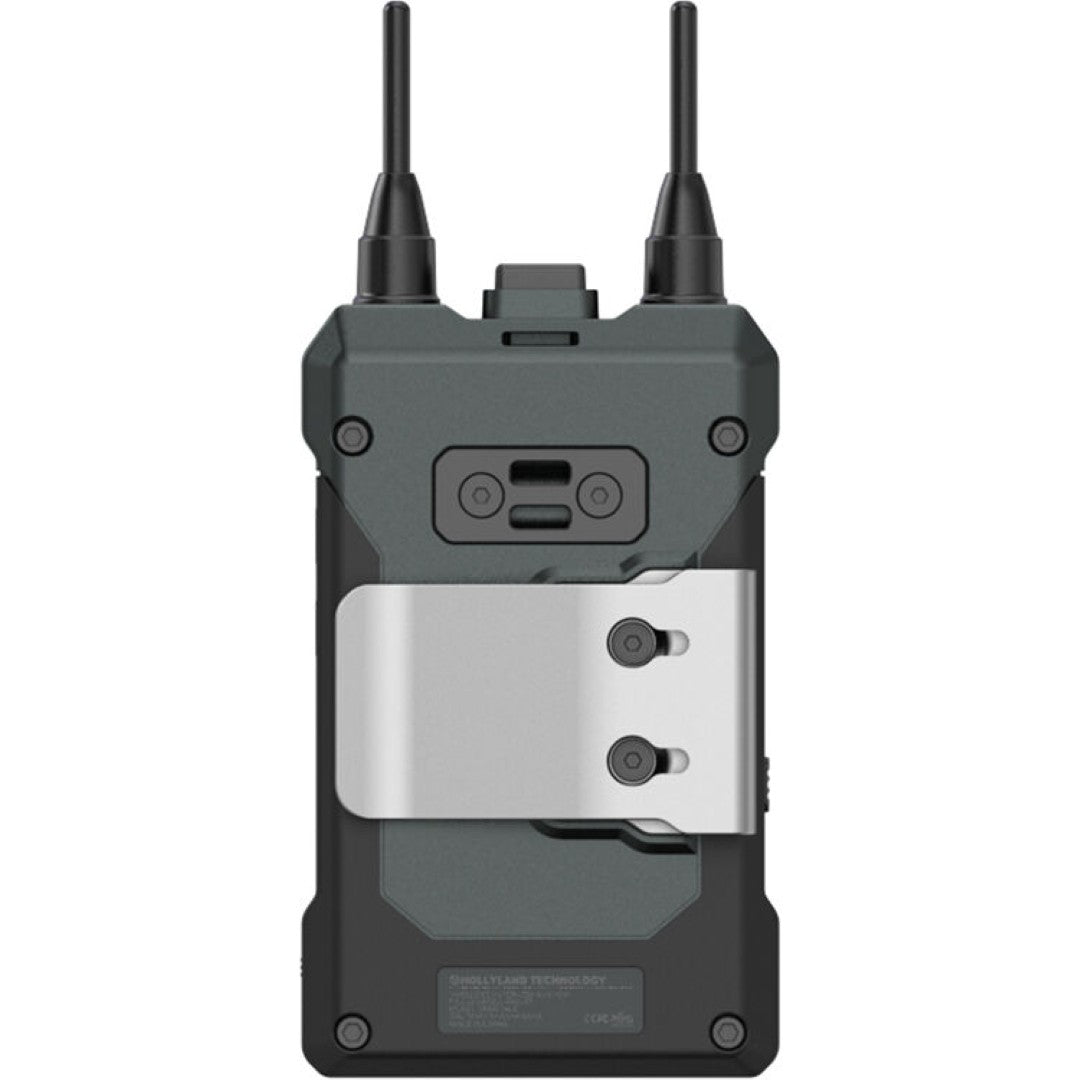

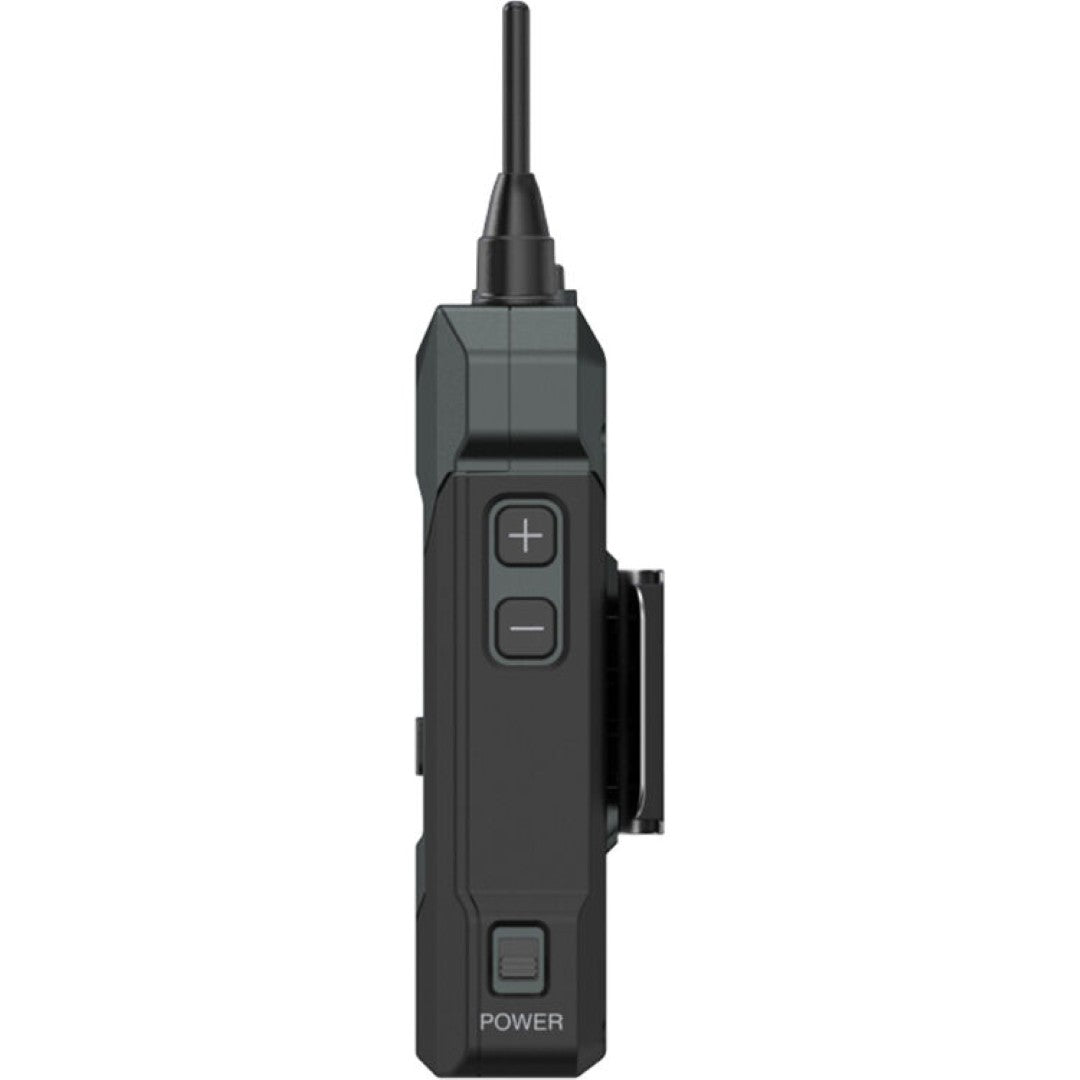

With double-injection molding and a scratch-resistant matte finish, the beltpack provides a comfortable grip and is durable. Weighing only 7 oz, you can take it with you wherever you go. The HD LCD screen displays all the information you need at a glance. The three function buttons on the front of the beltpack are ergonomically designed with different shapes to prevent accidental pressing, even if you are working in a dark and high-pressure environment.
Removable Battery for Long Battery Life
Each beltpack is equipped with two removable Li-ion batteries, which can be charged independently in only 2.5 hours. Each battery provides up to six hours of runtime, ensuring uninterrupted operation all day long.

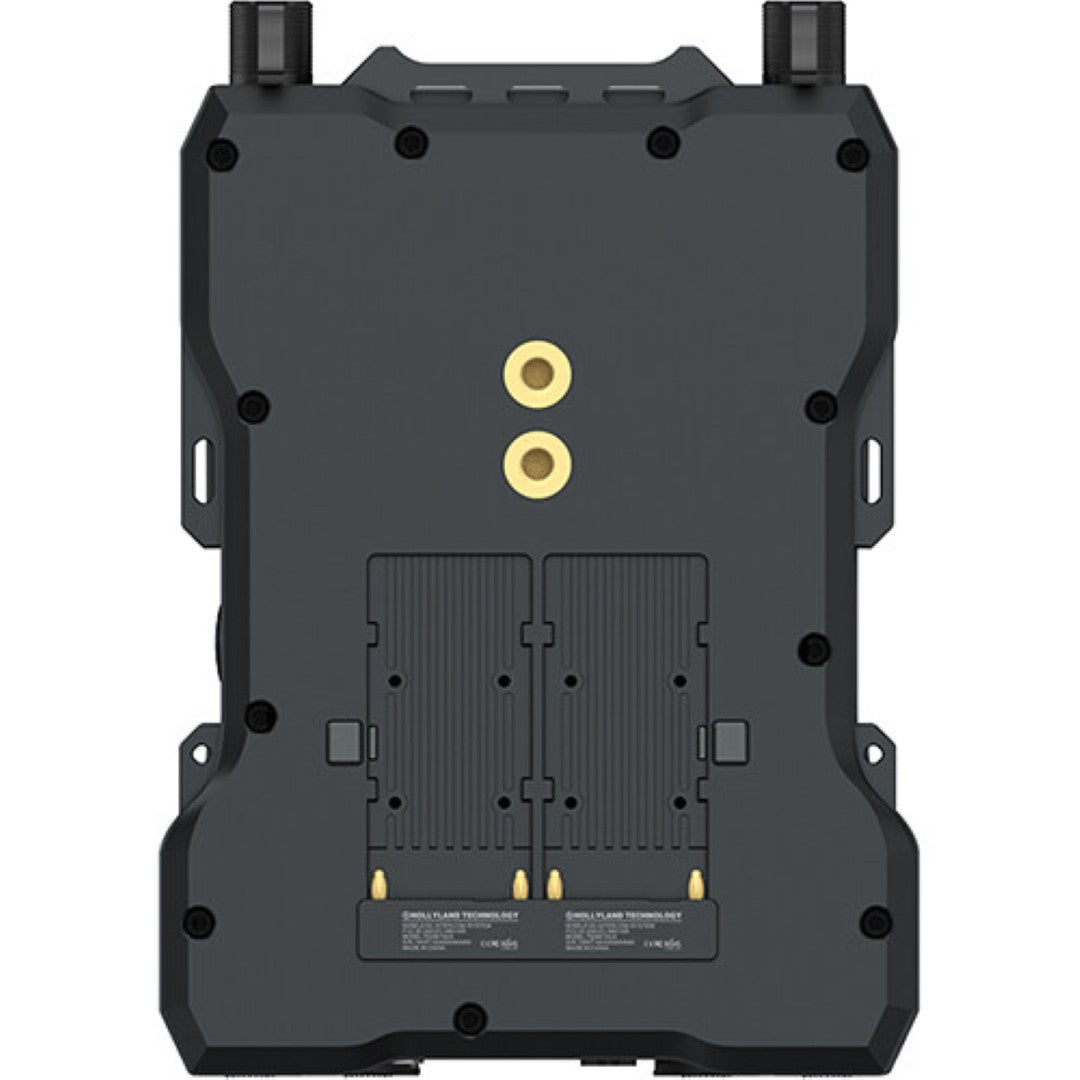

The base station has a dual NP-F battery plate, plus a PoE power supply port, guaranteeing a continuous, uninterrupted power supply.
Features:
8-channel communication
PoE base station power supply
3.5mm & LEMO headset connection on beltpacks
Dual-mic environmental noise cancellation

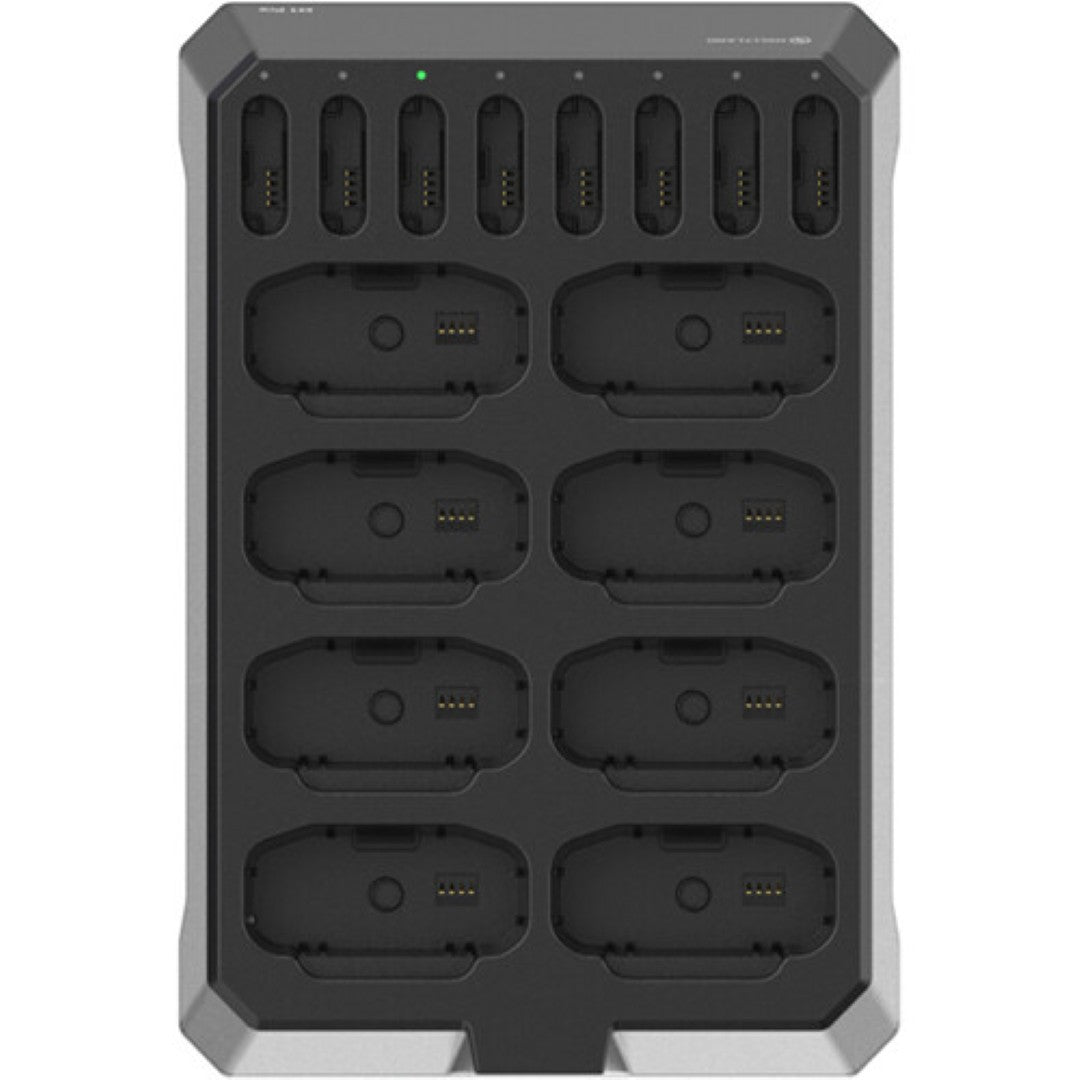

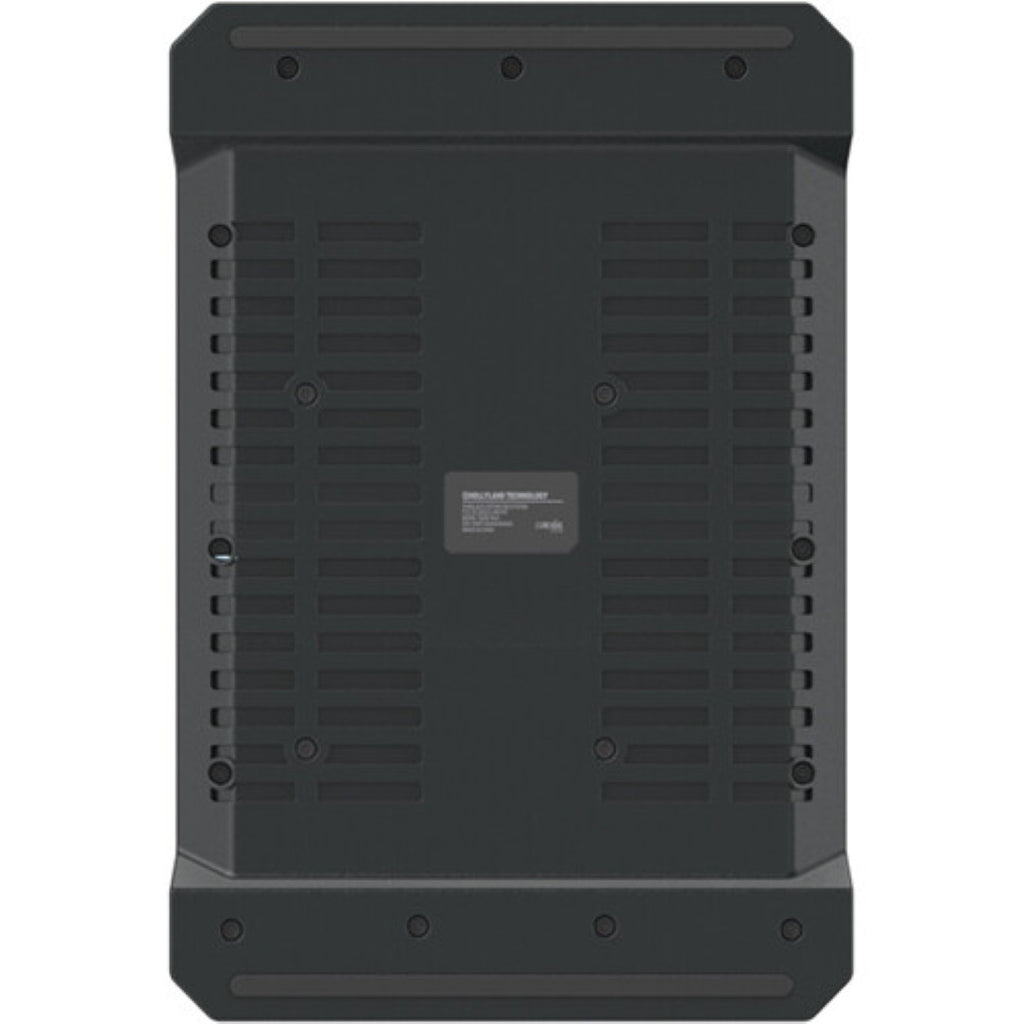

Charging station for all 8 beltpacks
2-wire and 4-wire intercom system interfaces
Removable lithium-ion batteries
Grouping talk mode
App and website-based system configuration
Specs:
Users per System
8
Wireless Technology
Digital 1.9 GHz
Operating Range
1312.3' / 400 m
Encryption
No
Inputs/Outputs
No
Earpiece Design
Over-Ear (Circumaural)
Number of Earpieces
Single Earpiece (Left or Right Side)
System
Number of Included Headsets
8x Single-Sided Headset
Number of Included Transceivers
1x Base Station
8x Beltpack
Users per System
8
Wireless Connectivity
Wireless Technology
Digital 1.9 GHz
Operating Range
1312.3' / 400 m
RF Bandwidth
1.72 MHz
Max Transceivers per Band
8
Wireless Modulation
GFSK
Duplex Mode
Full-Duplex (FDX)
Approximate RF Sensitivity
-93 dBm
Encryption
No
Mobile App Compatible
No
Base Station
Inputs/Outputs
No
Antenna
Base Station:
1x Internal
Base Station:
2x External, Detachable
Beltpack:
2x External, Fixed
Number of Charging Ports
1
AC/DC Power Adapter
Included
Power Consumption
3 W
Headphone
Earpiece Design
Over-Ear (Circumaural)
Earpiece Connection / Wearing Style
Headband
Number of Earpieces
Single Earpiece (Left or Right Side)
Sound Field
Mono
Controls/Microphone Location
Controls: Bodypack
Microphone: Adjustable Boom
Frequency Response
200 Hz to 7 kHz
Microphone
Type
Electret Condenser
Mic Boom Location
Interchangeable (Left or Right Side)
Noise Cancelling
Yes
Wired Connectivity
Wired Audio Connector
1x 1/8" / 3.5 mm
1x LEMO (Unspecified Type)
Battery
Battery Type
Base Station:
1 x Built-In Rechargeable Battery
Beltpack:
2 x Built-In Rechargeable Battery
Battery Chemistry
Lithium-Ion
Capacity (mAh)
1500 mAh
Physical
Operating Conditions
32 to 77°F / 0 to 45°C
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
Base Station:
10.1 x 7.1 x 1.9" / 255.5 x 180.4 x 48.5 mm
Beltpack:
4.1 x 2.6 x 0.9" / 105 x 65 x 22.4 mm (Each)
Weight
Base Station:
3.4 lb / 1560 g
Beltpack:
7.1 oz / 200 g (Each)
Packaging Info
Package Weight
42.12 lb
Box Dimensions (LxWxH)
25.3 x 20.7 x 14.7"
