Overview
Conferencing Camera
The HuddleCamHD 3X is ideal for small to medium sized meeting rooms. This camera is compatible with every system that accepts USB cameras.
Features
- Frame Rate: 30fps 1920 x 1080p
- Lens Zoom: 3X Optical Zoom f=3 – 10mm F1.6
- Video CMOS Sensor: 1/2.7” CMOS, 2.1 Mega Pixel
- Pan Movement: ±359°
- Tilt Rotation: Up: 90°, Down: 45°
- Presets: 64 Presets
- Video Signal: USB 2.0
- Field of View: 36°(tele) to 91° (wide)
- Power LED: Blue LED to signal power

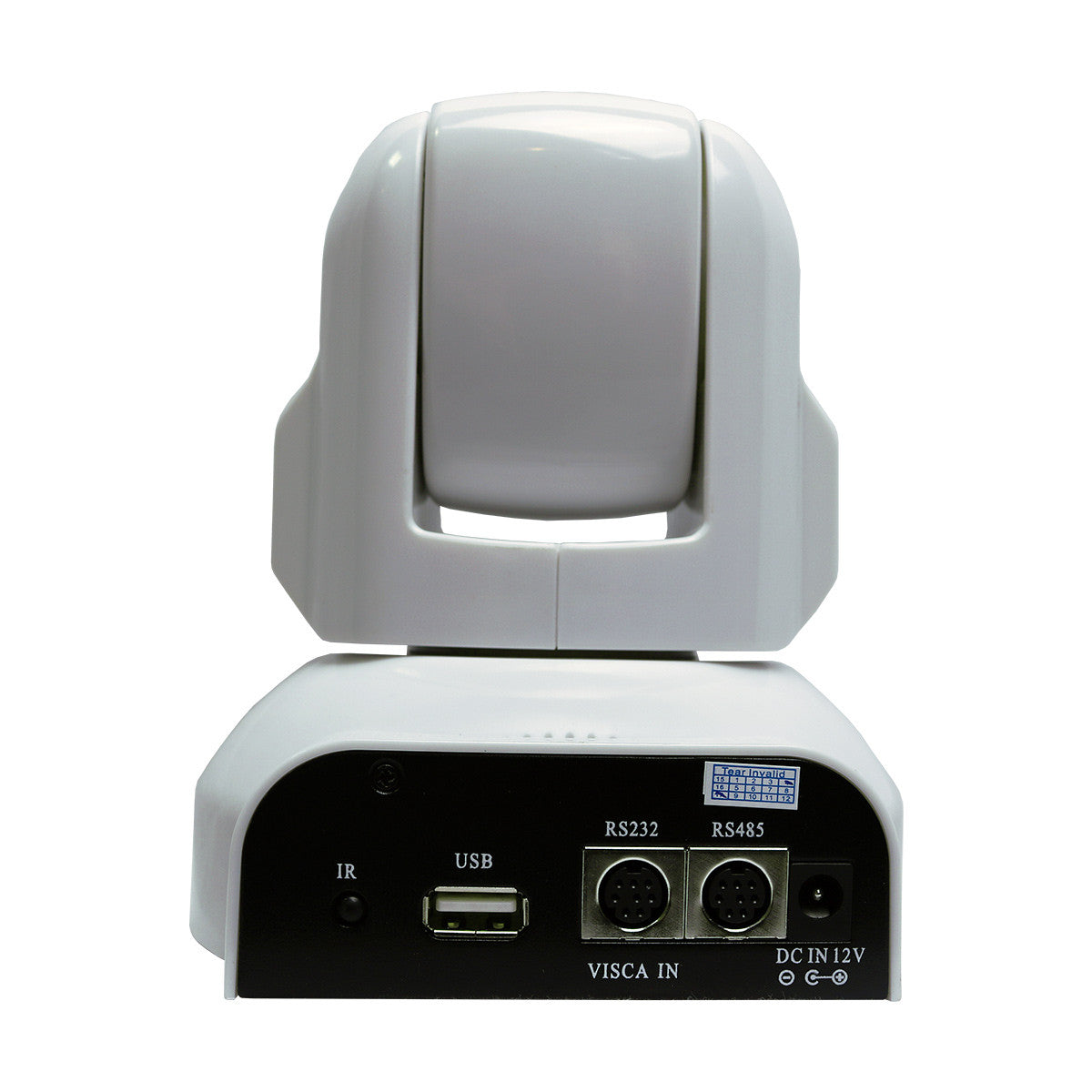

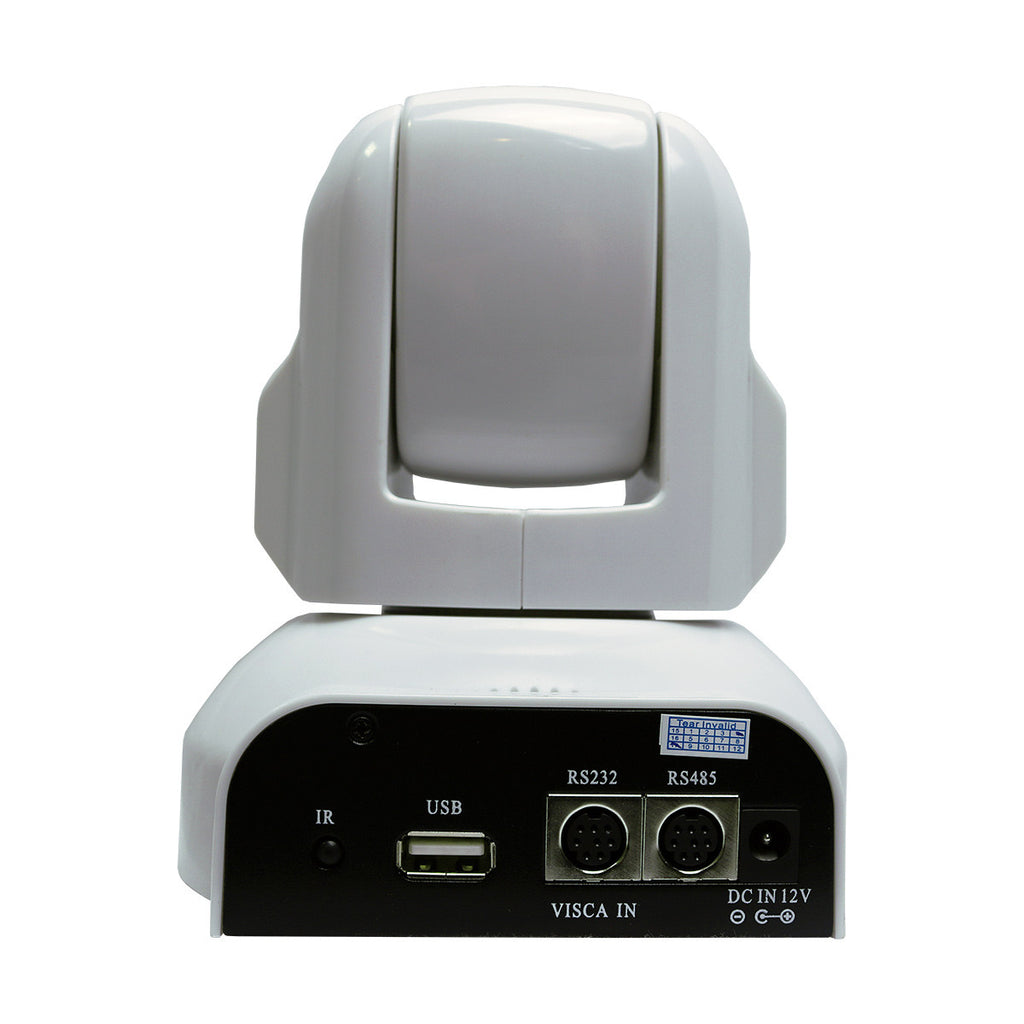

- Control: IR Remote, RS-232 in, & RS-485
- Color: Black or White
- Warranty: 2 Years parts and labor
Specifications
- Baud Rate: 9600 bps
- Controller Signal Config: Dip-Switch Pin 8/TTL Signal
- Input Voltage: 12V DC (10.5-14V DC)
- Input Power: 24W (Max)
- Power Supply Adapter: 12V DC 2A
- Operating Temperature: 32°F to + 113°F (0°C to 45°C)
- Material: Aluminum, Plastic
- Weight: 1.66 lbs (.75 kg)
- Dimensions: 4.88”W x 5.5”H x 4.75”D (6” H w/ tilt up)
- (W x H x D) mm: 124mm x 139mm x 120mm (152mm H w/ tilt up)
- Boxed Weight: 3.66 lbs | 1.66 kg
- Box Dimensions: 8.75” x 8.88” x 7” (222mm x 225mm x 178mm)
