Overview

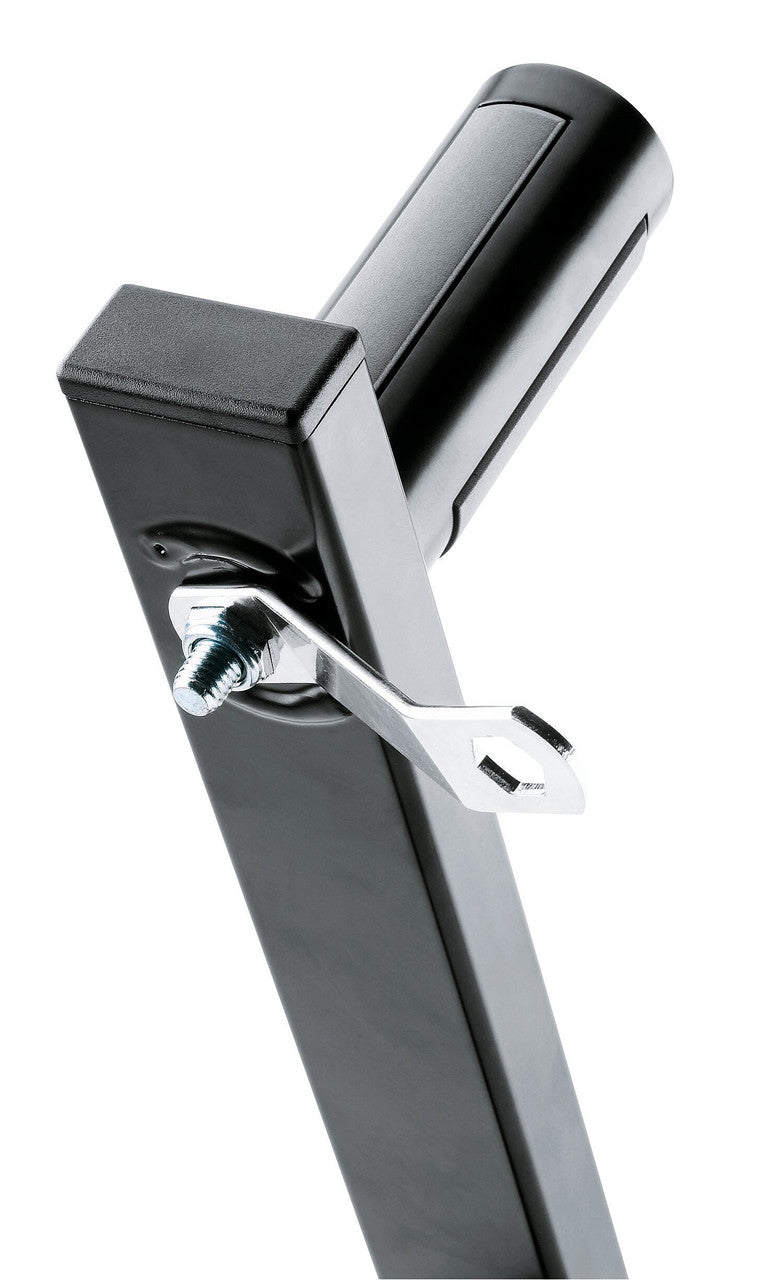

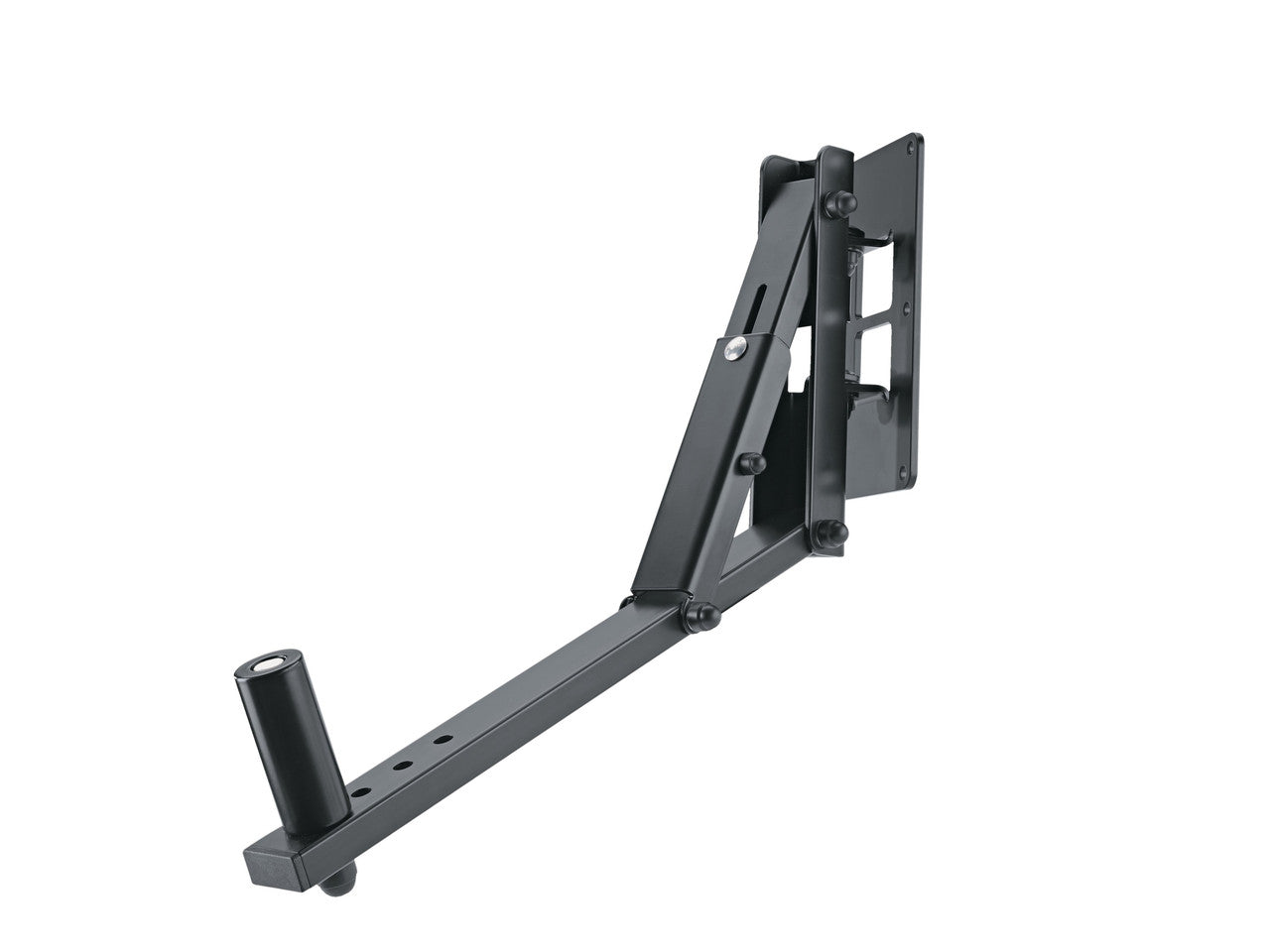

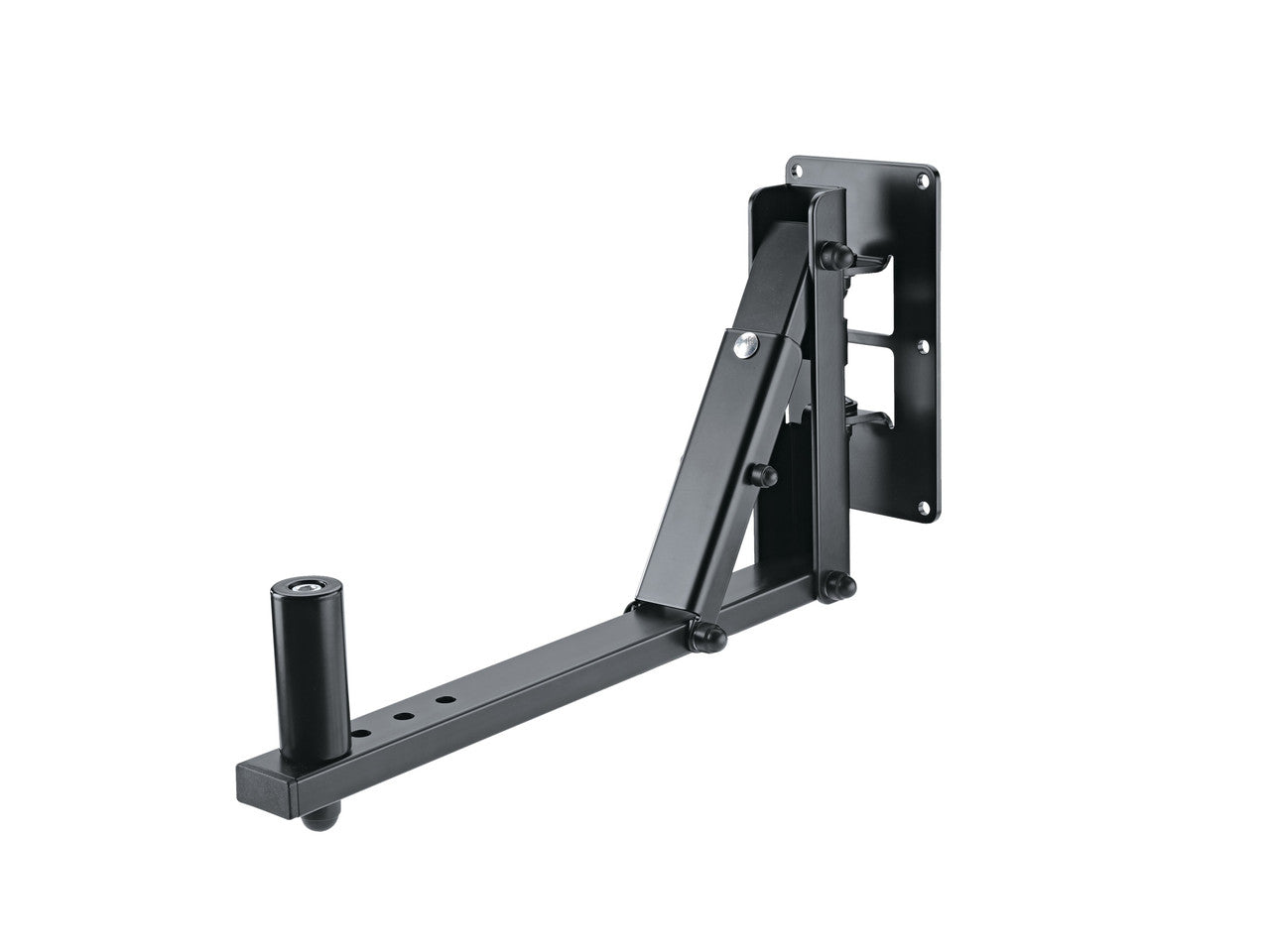

Robust speaker wall mount for speaker cabinets with flange socket receptacle. Max. recommended load 25 kg. Thanks to the appropriate design, the bracket is almost completely concealed by the speaker. The speaker distance to the wall is selectable in 4 steps. The swivel range is infinitely adjustable, and the tilt angle can be fixed in 6 steps up to max. 30 °.
Specifications
- Angle of inclination: 0° to -30°
- Weight: 3.92 kg
- Material: steel
- Max. load capacity: 25 kg
- Mounting: attaches to walls
- Mounting bolt: diameter 35 mm x 85 mm
- Swivel: 140°
- Type: black
- Wall clearance: 499 mm
- Wall plate: 220 x 120 mm
- Wall-to-bolt clearance: 172/202/232/262 mm
