Overview

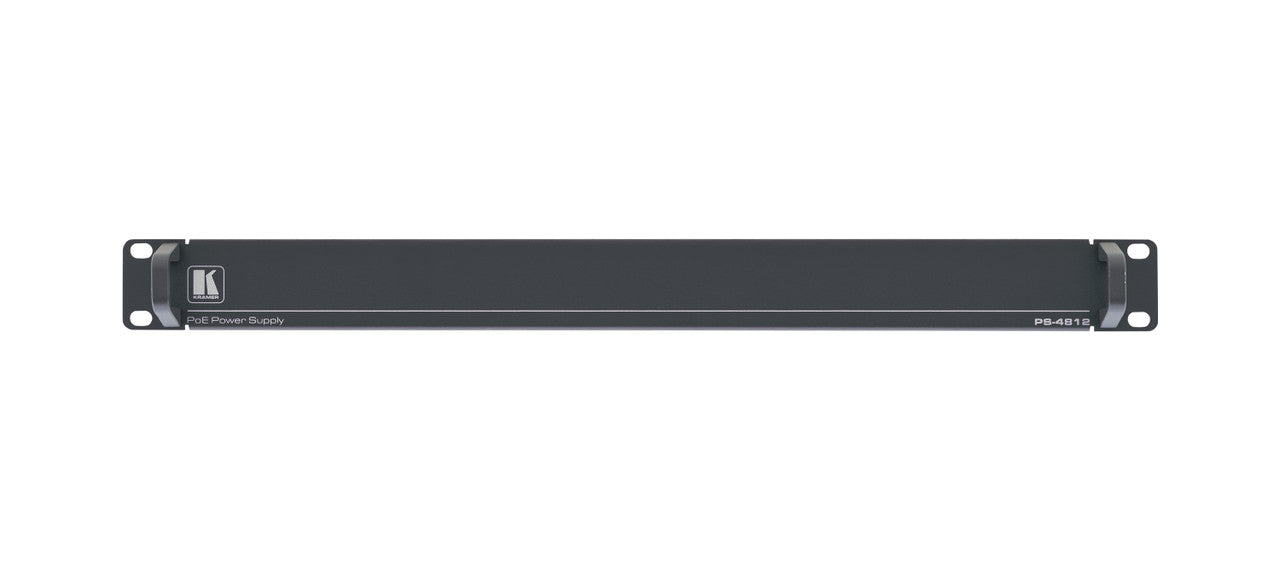

MA3−PS−4812 is a power supply for compatible modular matrices, enabling their PoE power delivery on compatible extension ports of matrix cards for remote powering of their connected devices, such as transmitters and receivers, to ease their installation.
- Easy to Install — Fits in a 1U space in a 19” rack above MTX3–34–M/VS–34FD.
Specifications
Power
- Supply: 48V 12A
- Source: 100–240V AC 50/60Hz (recieves power via MTX3–34–M/VS–34FD)
- Consumption: 5.2A
Environmental Conditions
- Operating Temperature: 0° to +35°C (32° to 95°F)
- Storage Temperature: –20° to +60°C (–4° to 140°F)
- Humidity: 20% to 90%, RHL non–condensing
General
- Size: 1U (H), 19" (W)
- Product Dimensions: 48.2cm x 13.8cm x 4.6cm (19" x 5.4" x 1.8" ) W, D, H
- Product Weight: 2.6kg (5.7lbs) approx
- Shipping Dimensions: 55cm x 27.7cm x 10.5cm (21.6" x 10.9" x 4.1" ) W, D, H
- Shipping Weight: 3.3kg (7.2lbs) approx
Product Dimensions
- 48.20cm x 13.80cm x 4.60cm (18.98" x 5.43" x 1.81" ) W, D, H
Product Weight
- 2.6kg (5.7lbs) approx.
Shipping Dimensions
- 55.00cm x 27.70cm x 10.50cm (21.65" x 10.91" x 4.13" ) W, D, H
Shipping Weight
- 3.3kg (7.2lbs) approx.
