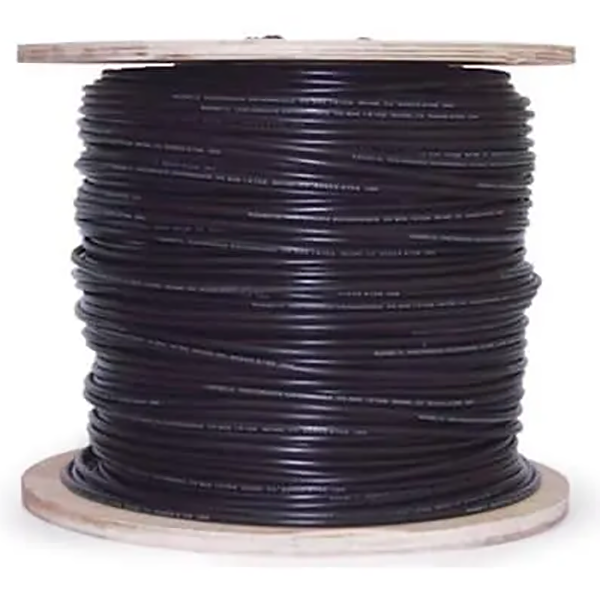

RG-58 50 Ohm Coaxial Cable (500 ft)
LA-112 RG-58 50 Ohm Coaxial Cable is best used when more distance is needed for the antennas to have better coverage. easured at 500 ft. Recommended for coaxial runs less than 100 ft. (30.5 m) at 72 MHz or 50 ft. (15.24 m) at 216 MHz. Signal loss for 72 MHz is 2 dB per 50 ft. Signal loss for 216 MHz is 4 dB per 50 ft.
- Furthers antenna location
Specifications
- RF
- Attenuation: 2 dB per 50 ft. on 72 MHz, 4 dB per 50 ft. on 216 MHz
- Physical
- Material: Polyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
- Shipping Weight: 4 lbs. (1.81 kg) per 100 ft.
- Diameter: Outer: .192 in. (4.88 mm), Inner: .116 in. (2.95 mm)
- Unit Weight: 3.5 lbs. (1.6 0 kg) per 100 ft.
- Cable Type: RG-58/U 50 Ohm.
