Overview

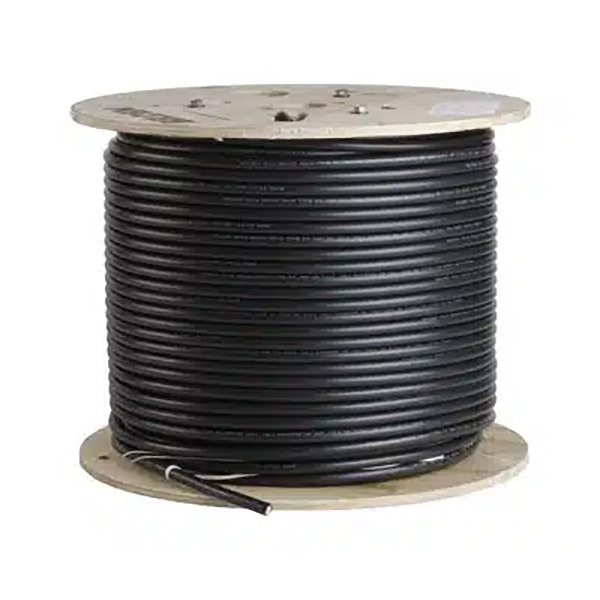

RG-8 50 Ohm Low-Loss Coaxial Cable (500 ft)
LA-113 RG-8 50 Ohm Coaxial Cable is best used when more distance is needed for the antennas to have better coverage. Measured at 500 ft. Recommended for coaxial runs more than 100 ft. (30.5 m) at 72 MHz or 50 ft. (15.24 m) at 216 MHz. LA-113 will give you better distance with lower loss of signal power. Signal loss for 72 MHz is 1 dB per 50 ft. Signal loss for 216 MHz is 2 dB per 50 ft.
- Furthers antenna location
- Longest runs with lowest signal loss
Specifications
- RF
- Attenuation: 1 dB per 50 ft. on 72 MHz, 2 dB per 50 ft. on 216 MHz
- Physical
- Cable Type: RG-8/U Low Loss 50 Ohm
- Material: Foam Polyethylene Insulation, PVC Jacket, bare copper conductor, bare copper braided shield
- Diameter: Outer: .403 in. (10.24 mm), Inner: .285 in. (7.24 mm)
- Unit Weight: 14.2 lbs. (6.5 kg) per 100 ft.
- Shipping Weight: 15.0 lbs. (6.8 kg) per 100 ft.
