Overview

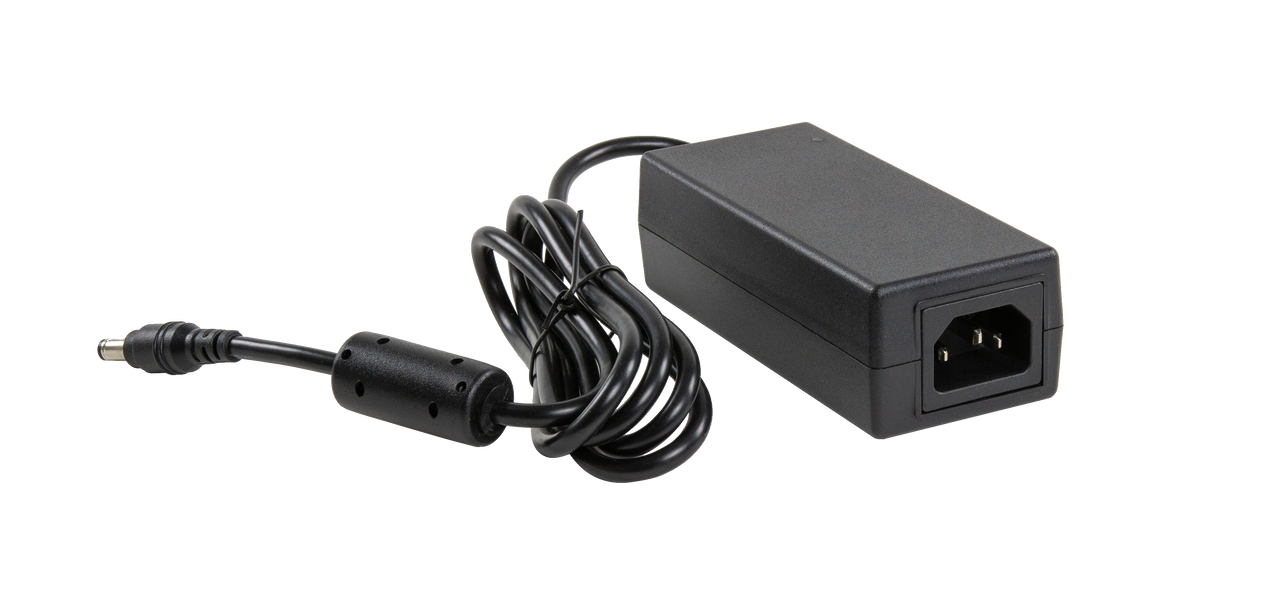

Compatible with our Listen Everywhere servers, the LA-504 replacement power supply has four different line cord configurations to allow for use in nearly any region of the world.
Includes
One (1) Listen Everywhere Replacement Power Supply
One (1) Line cord
Features
- Safe, reliable 5 VDC power for Listen Everywhere servers
- Available with four user-selectable line cord configurations for use in nearly any region
Configurations & Architectural Specs
ConfigurationsLA-504-01 Listen EVERYWHERE Replacement Power Supply (North America)*LA-504-02 Listen EVERYWHERE Replacement Power Supply (Asia, UK)*LA-504-03 Listen EVERYWHERE Replacement Power Supply (Euro)*LA-504-04 Listen EVERYWHERE Replacement Power Supply (Australia)**01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.Specifications
| Specification |
LA-504 |
Power |
| Power Supply Input |
100-240V, 50-60 Hz, 2.0A |
| Power Supply Output |
5 VDC, 6.0A 30W |
| Power Supply Connector |
.217 in (5.5mm) OD, .083 in (2.1 mm) ID, barrel type, center positive |
| Power Supply Type |
In Line |
|
Physical |
| Color |
Black |
| Cable Length |
Power Supply Cable: 4.0 ft. (122 cm), IEC Line Cord: 6.0 ft. (183 cm) |
| Dimensions (H x W x D) |
1.5 in. x 2.00 in. x 4.5 in. (38 mm x 51 mm x 115 mm) |
| Weight |
(-01) 12.8 oz. (300 g), (-02) 16 oz. (500 g), (-03) 16 oz. (500 g), (-04) 12.8 oz. (400 g) |
|
Environmental |
| Temperature - Operation |
-10 °C (14 °F) to +40 (104 °F) |
| Temperature - Storage |
-20 °C (-4 °F) to +50 (122 °F) |
| Relative Humidity |
0 to 95% relative humidity, non-condensing |
|
Compliance |
| Power Supply Compliance |
CUL, UL, CE, CCC, RCM, CCC, EAC, PSE, FCC, RoHS |
|
