Overview

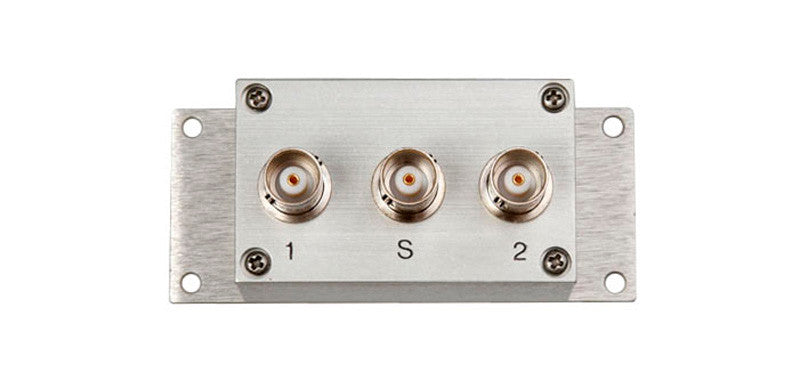

The LA-80 is a passive device (no power supply needed) that takes two (2) incoming RF signals and combines them into one (1) outgoing antenna source. The combiner is used in applications where up to two (2) different antenna sources are required and only one (1) antenna output is available or desired.
Includes
One (1) LA-80 2-Way RF Antenna CombinerOne (1) Instruction sheet
Features
- Combines two (2) incoming RF signals and combines them into one (1) outgoing antenna source
- Passive (no power supply needed)
- Works with 72, 216 or 863 MHz
- Light weight
- Mountable
- Labeled for ease of use
Specifications
| Specification |
LA-80 |
Interconnections |
|
RF |
| Frequency Range |
10 to 1000 MHz |
| Input/s |
2 |
| Output/s |
1 |
| Impedance |
50 Ohm |
| Power Loss |
3 dB for every two (2) combined signals |
| Phase |
0° |
| Input RF Power Rating |
1 W |
|
Power |
| Power Supply Type |
Passive |
|
Physical |
| Shipping Weight |
1 lb. (0.5 kg) |
| Dimensions (H x W x D) |
3.25 in. (82 mm) x 1.25 in. (32 mm) x 2.75 in. (69 mm) |
| Weight |
4.0 oz. (0.1 kg) |
|
Environmental |
| Temperature - Operation |
-10 °C (14 °F) to +40 °C (104 °F) |
| Temperature - Storage |
-55 °C (-67 °F) to +100 °C (212 °F) |
|
Compliance |
|
