Overview

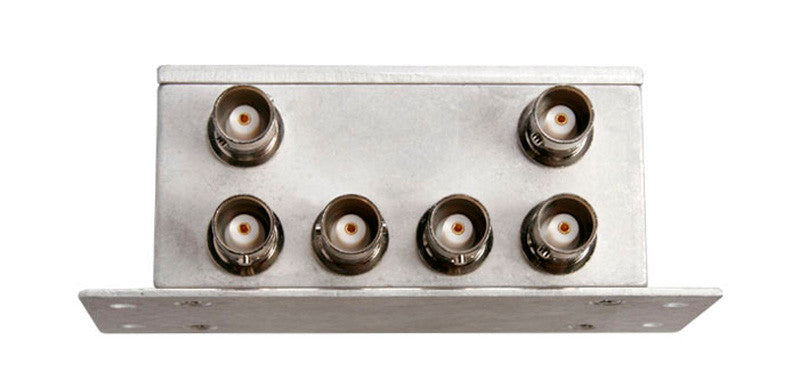

The LA-82 is a passive device (no power supply needed) that takes six (6) incoming RF signals and combines them into one (1) outgoing antenna source. The combiner is used in applications where up to six (6) different antenna sources are required and only one (1) antenna output is available or desired.
Includes
One (1) LA-82 6-Way RF Antenna Combiner
One (1) Instruction sheetFeatures
- Combines six incoming RF signals and combines them into one outgoing antenna source
- Passive (no power supply needed)
- Light weight
- Works with 72 or 216 MHz products only
- Mountable
- Labeled for ease of use
Specifications
| Specification |
LA-82 |
Interconnections |
|
RF |
| Frequency Range |
1 to 500 MHz |
| Input/s |
6 |
| Output/s |
1 |
| Impedance |
50 Ohm |
| Power Loss |
3 dB for every two (2) combined signals |
| Phase |
0° |
| Input RF Power Rating |
1 W |
|
Power |
| Power Supply Type |
Passive |
|
Physical |
| Shipping Weight |
1 lb. (0.5 kg) |
| Dimensions (H x W x D) |
4.00 in. (10.2 cm) x 2.5 in. (64 mm) x 1.5 in. (38 mm) |
| Weight |
4.4 oz. (0.12 kg) |
|
Environmental |
| Temperature - Operation |
-10 °C (14 °F) to +40 °C (104 °F) |
| Temperature - Storage |
-55 °C (-67 °F) to +100 °C (212 °F) |
|
Compliance |
|
