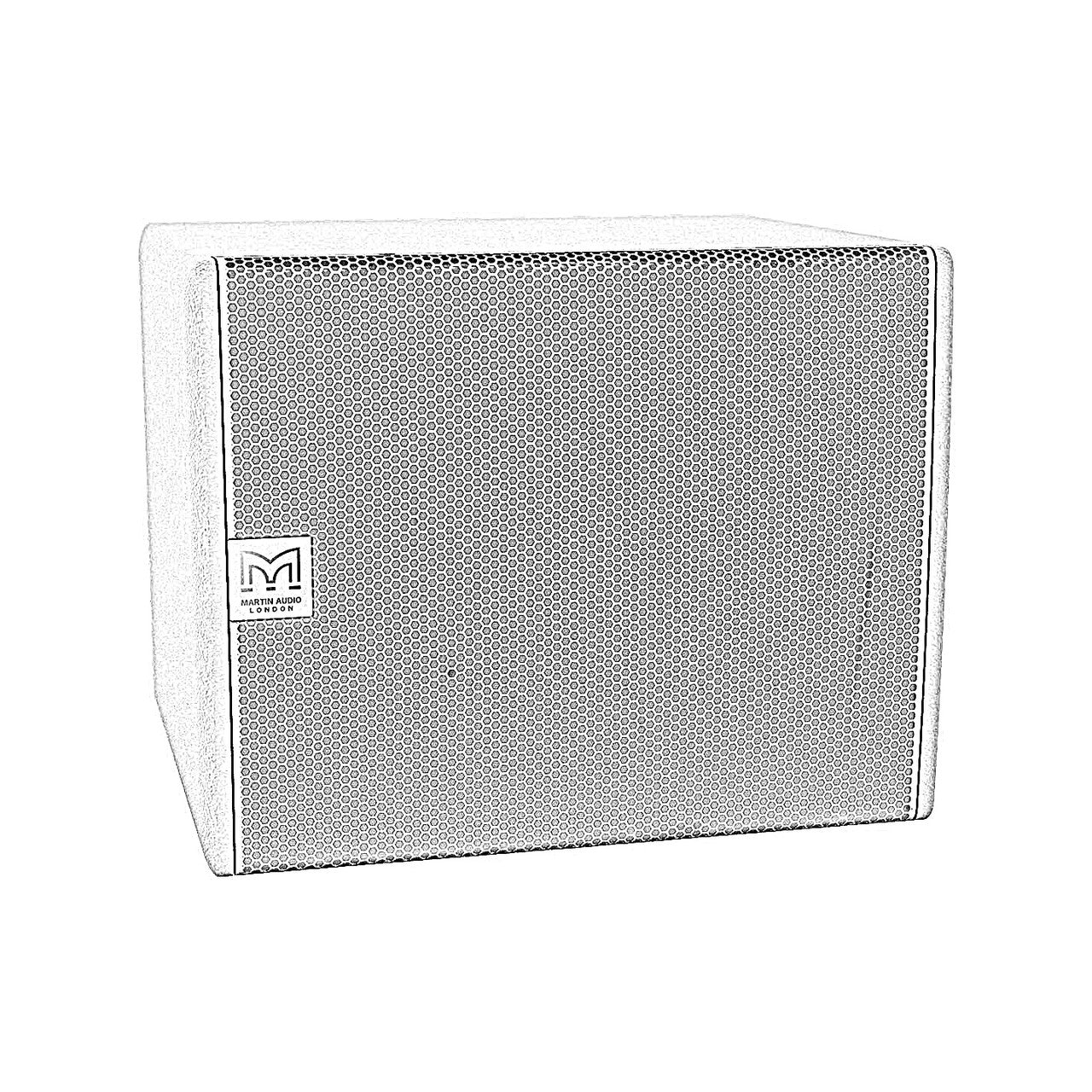

The SX112 is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of full-range loudspeaker models. It features a very efficient 12" (300mm) long-throw bass driver with a high power 3" (75mm) voice coil and generously-sized reflex ports for low noise, high power operation.
Features
- Ultra-Compact, single driver, direct radiating subwoofer
- 12” (300mm) driver with 3” (75mm) voice coil
- Water resistant cone
- Large ports for reduced air noise
- Perforated steel grille
- Black or white standard colour options
- Integrated flying points
Applications
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
Specifications
| TYPE | Compact, single driver, direct radiating subwoofer |
| FREQUENCY RESPONSE (1) | 48Hz-150Hz ± 3dB -10dB @ 35Hz |
| DRIVER | 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone |
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (10) | 100dB |
| MAXIMUM SPL (9) | 126dB continuous, 132dB peak (half space) |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | 52 litre, Plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 12 x M10 inserts |
| DIMENSIONS | (W) 487mm x (H) 390mm x (D) 410mm (W) 19.2ins x (H) 15.4ins x (D) 16.1ins |
| WEIGHT | 21.5kg (47.3lbs) |
