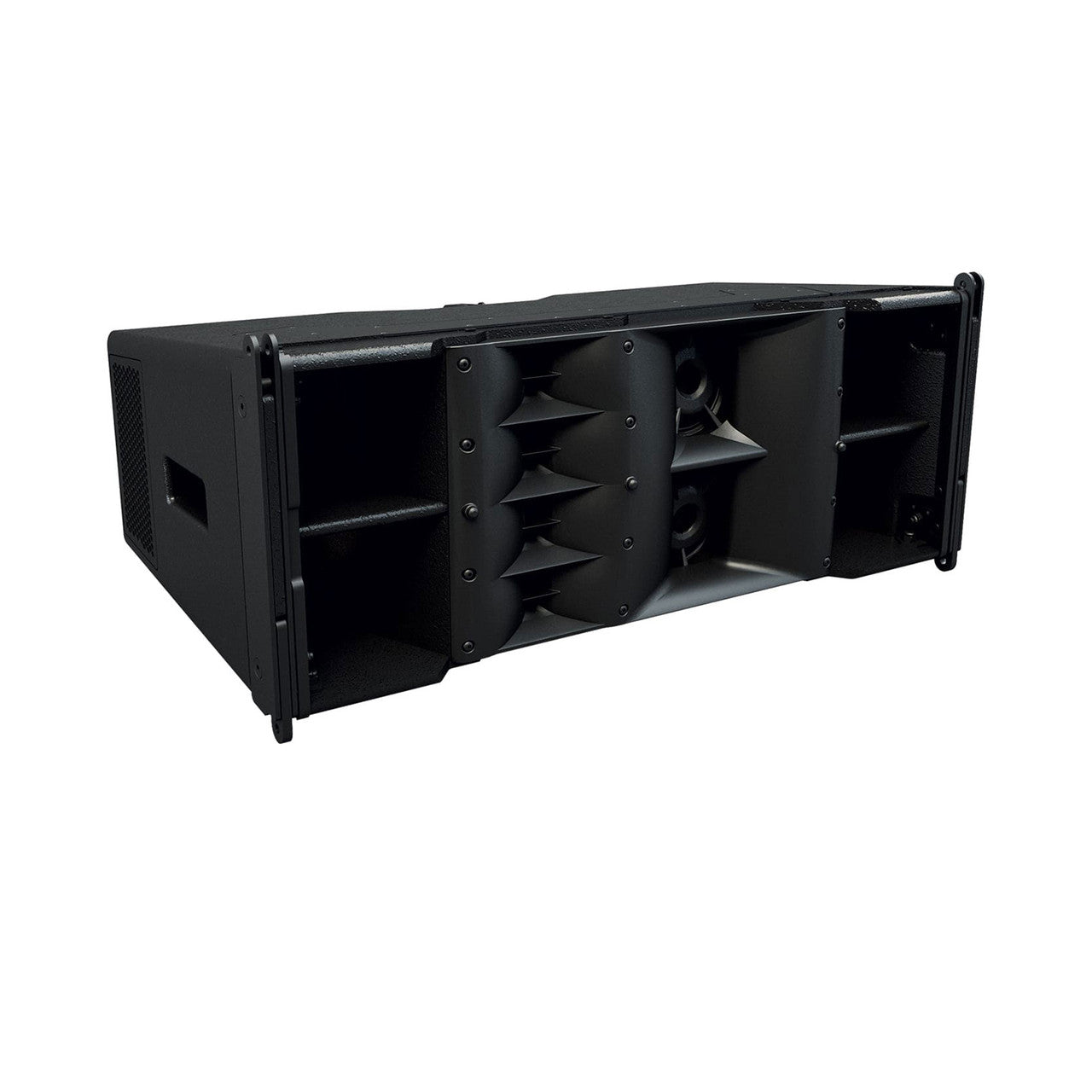

WPC is a 3-way bi-amp, 2 x 10” compact line array featuring scalable resolution optimisation. This flexible approach to array optimisation provides greatly improved coverage, consistency and control compared to a standard line array.
Features
- 3-way bi-amp, 2 x 10” compact line array
- Scalable resolution for advanced array control
- External, dedicated, multi-channel Class D amplification
- Industry-leading DISPLAY software interacts with DSP for highly-accurate results
- Fast, integral 3-point flying systems for up to 16 enclosures
- Side and rear handles for ease of handling and setting splay angles
- 100° horizontal constant directivity pattern control
Benefits
- Consistent coverage achieved ‘straight-out-of-the-box’
- DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
- Improved audience coverage with reduced sound-spill
Applications
- Touring sound reinforcement for small and medium-size venues
- Fixed installations in concert halls, theatres, ballrooms and HoW
- Sports stadium, arena installations & corporate AV events
Specifications
| TYPE | Three-way, bi-amp line array element |
| FREQUENCY RESPONSE (5) | 65Hz-18kHz ± 3dB |
| DRIVERS |
|
| SYSTEM RESOLUTION | 1 to 3 enclosures per pair of amplifier channels (Bi-amp) |
| MAXIMUM SPL (9) | 135dB peak |
| NOMINAL IMPEDANCE |
|
| DISPERSION (-6dB) |
|
| CROSSOVER | 440Hz active, 4.4kHz internal passive |
| ENCLOSURE | Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black HEX perforated steel |
| CONNECTORS | 2 x NL4 type |
| INPUT CONNECTIONS |
|
| FITTINGS |
|
| FLOWN ARRAY MAXIMUM | 16 enclosures in single array |
| DIMENSIONS |
|
| WEIGHT | 35kg (77.1lbs) |
