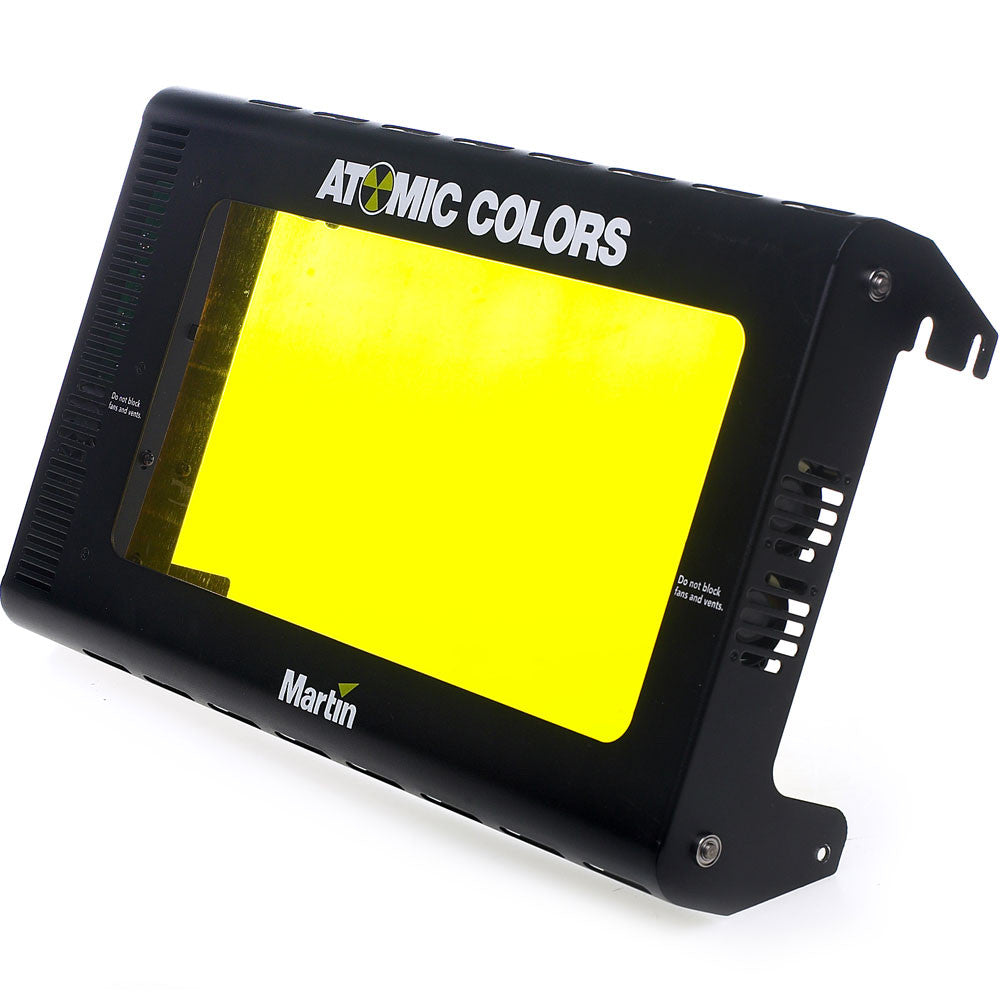

Atomic Colors is a specially designed head which fits onto the front of the Atomic 3000 DMX – allowing up to ten brightly colored strobe and blinder effects.
Features:
- Light activated fan
- Multiple scroller and colling fan speed
- Gel saver mode
- On board memory with monitor and resetting
- DMX address via display
- Multiple gel color selection with 3 ready made strings and custom made
- Safety wire and 5 Mtr cable included
Specifications:
- Length: 470 mm (18.5")
- Width: 273 mm (10.7")
- Height: 102 mm (4.0")
- Weight: 2.5 kg (5.5 lbs.)
- Color gel thickness: 0.075 mm (0.003") - 0.125 mm (0.005")
- Color gel scrolling: 10 colors as standard, custom color options
- Control options: DMX
- DMX channels: 1 or 2
- Cooling fan speed control: Onboard control panel or DMX
- Gel scrolling speed, 'gel saver' mode, light-activated fan operation: Onboard control panel
- Setting and addressing: Three-button LED control panel
- Protocol: USITT DMX512/1990
- Housing: Steel
- Finish: Electrostatic powder-coated
- Color: Black
- Gel frame capacity: 2-11 gel frames. For best results, use gel strings supplied by your dealer.
- Mounting device: Dedicated mounting for the Atomic 3000 DMX
- Orientation: Any
- Combined power and DMX data: 4-pin XLR
- DC voltage: 24 V DC (+/- 10%)
- DC current: O.55 A (Max.)
- Compatible power supplies: MPU-02, MPU-08
- Cooling: Forced air, 4-speed fans
- Maximum ambient temperature (Ta max.): 40° C (104° F)
