Overview:

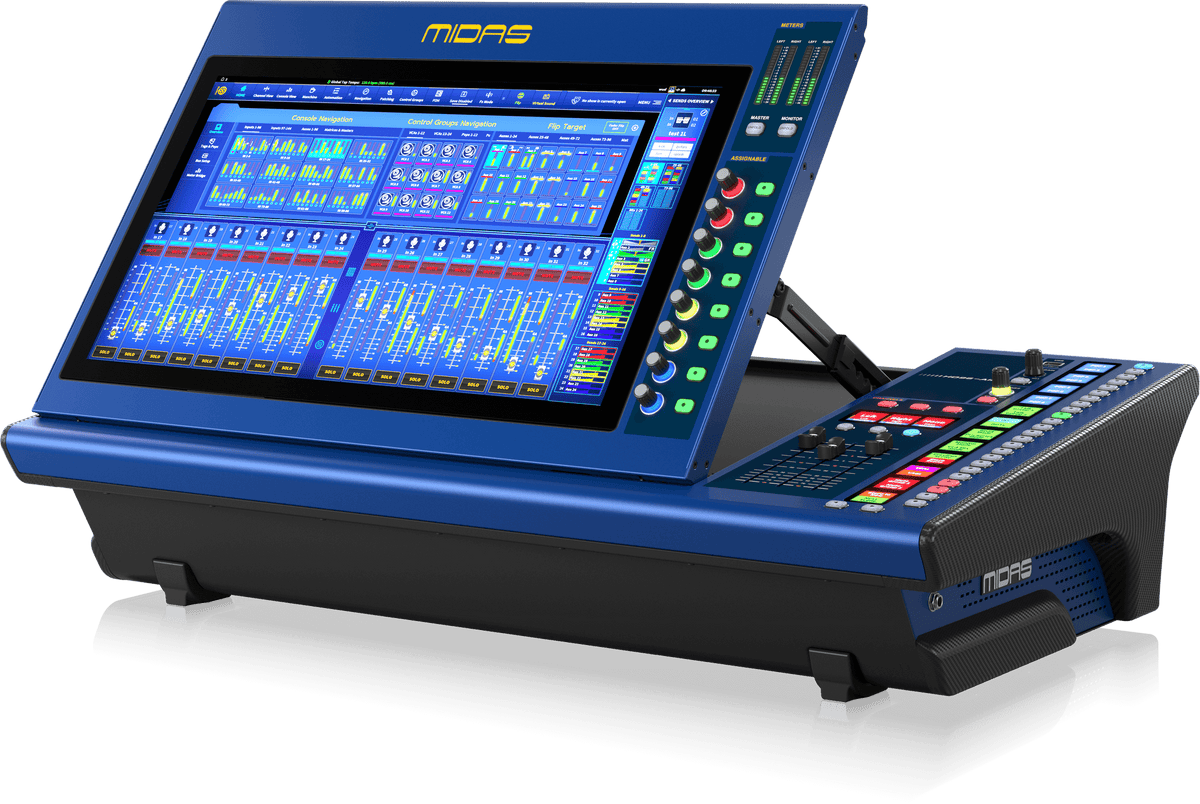

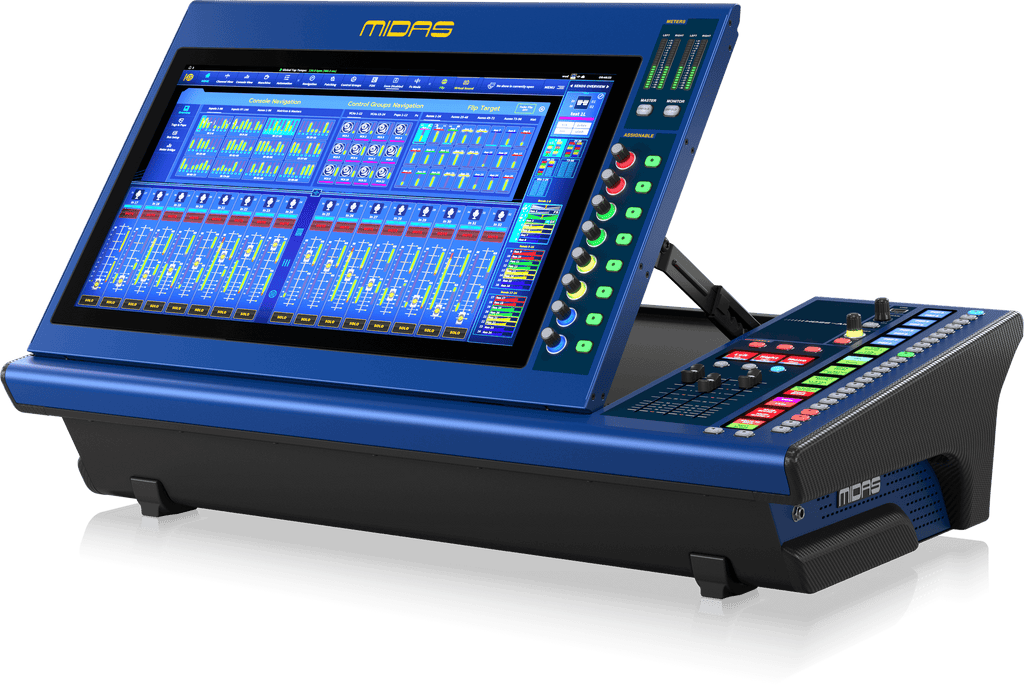

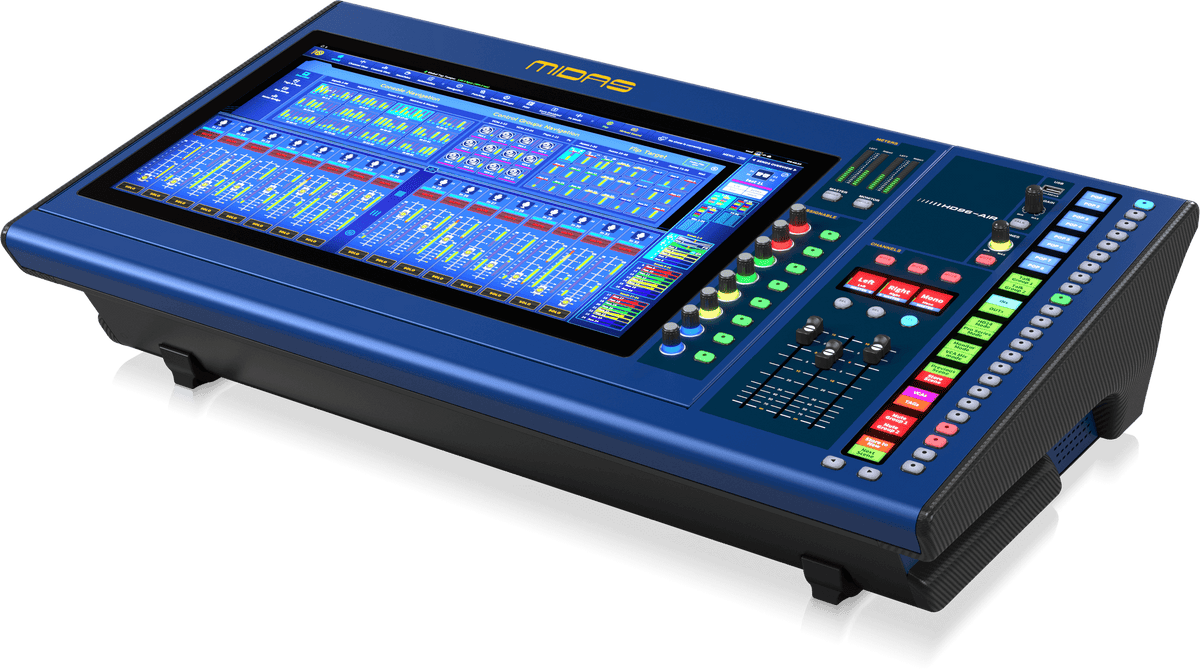

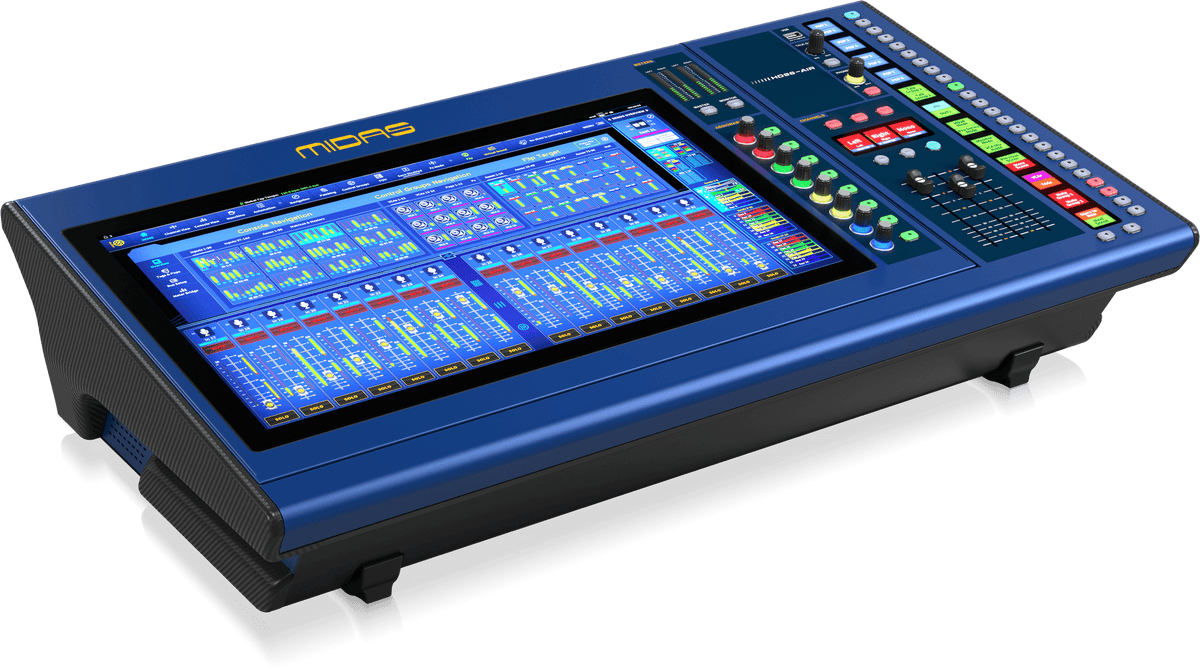

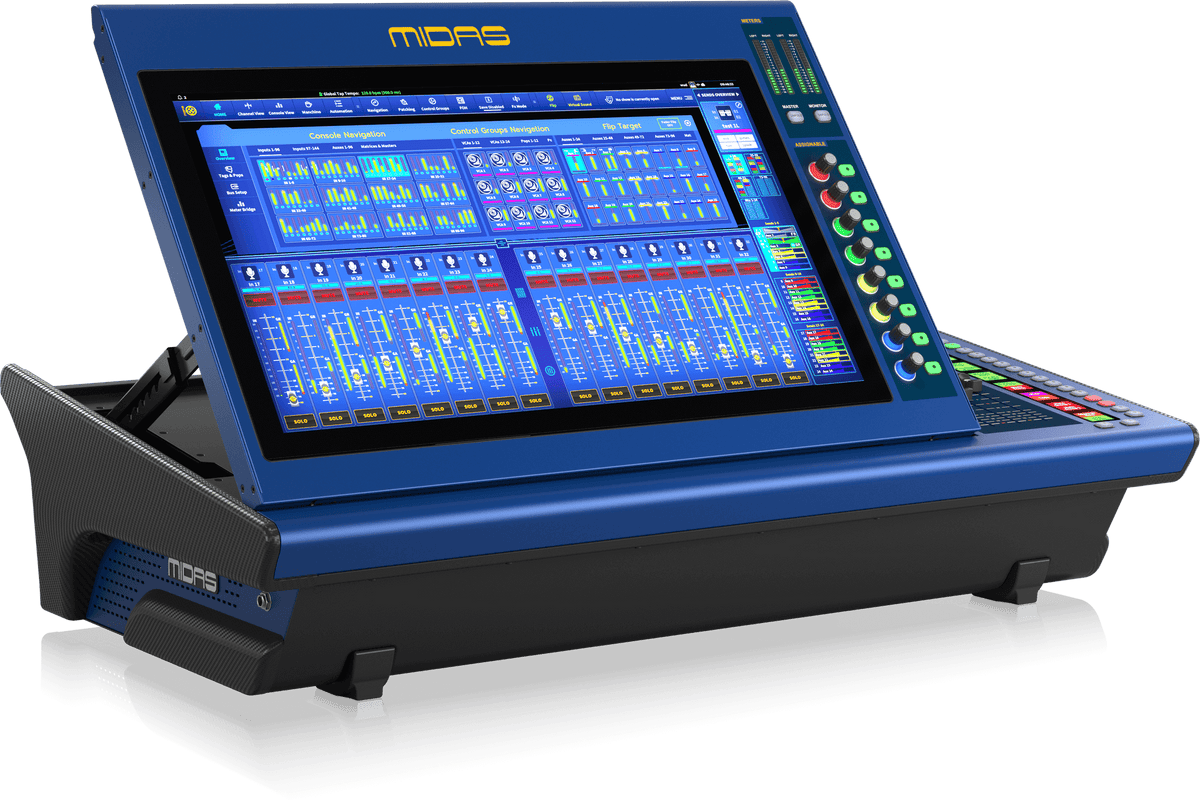

The MIDAS HD96-AIR-CC-IP is a lightweight professional live digital mixing console built on the Heritage-D platform. It features 144 simultaneous input channels, 123 mix buses, a 96 kHz processing engine, and a 21-inch multi-touch display. Designed for touring, live production, broadcast, and large-scale events, the HD96-AIR delivers the full power of the HD96 ecosystem in a portable format.
Features:
144 simultaneous input channels
123 time-aligned mix buses
96 kHz audio processing
64-bit summing architecture
21-inch Full-HD touchscreen
Multi-gesture user interface
HyperMAC networking
AES50 networking
24 effects engines
24 VCA groups
48 DN370 graphic EQs
Flexible routing architecture
Designed for fly dates and touring
Dual redundant power supplies
Ultra-lightweight HD96 platform
Specs:
Product Type: Live Digital Mixing Console
Input Channels: 144
Mix Buses: 123
Sample Rate: 96 kHz
Processing Engine: Graviton Mk2 64-Bit Summing Engine
Display: 21" Full-HD Glare Resistant Multi-Touch Screen
Audio Networking: HyperMAC, AES50
Maximum System Capacity: Up to 480 Inputs, Up to 480 Outputs
VCA Groups: 24
Population Groups: 24
Graphic EQs: Up to 48
Klark Teknik DN370
Effects Engines: Up to 24

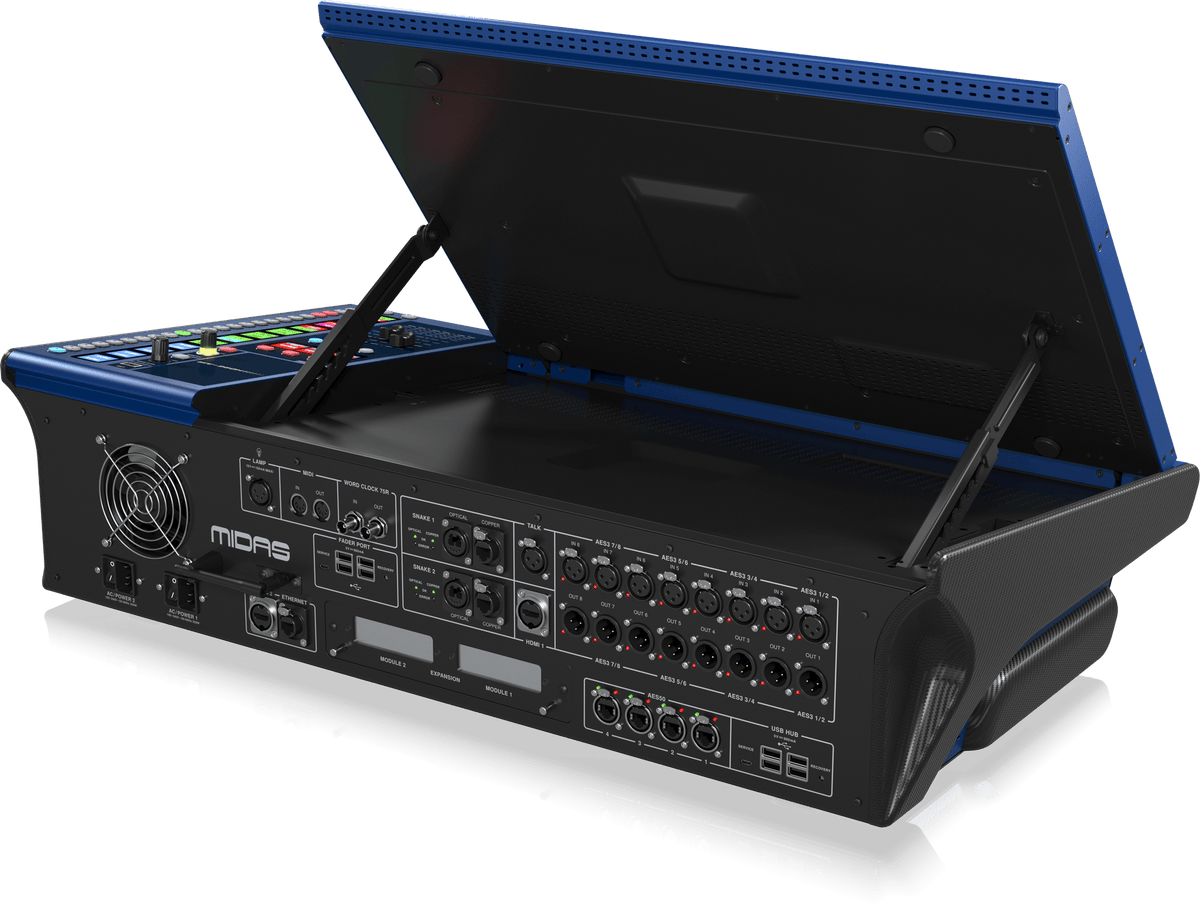

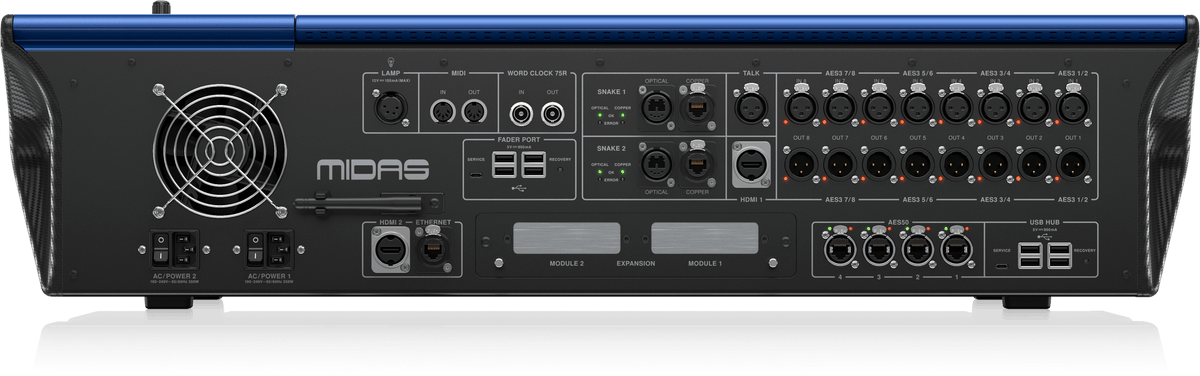

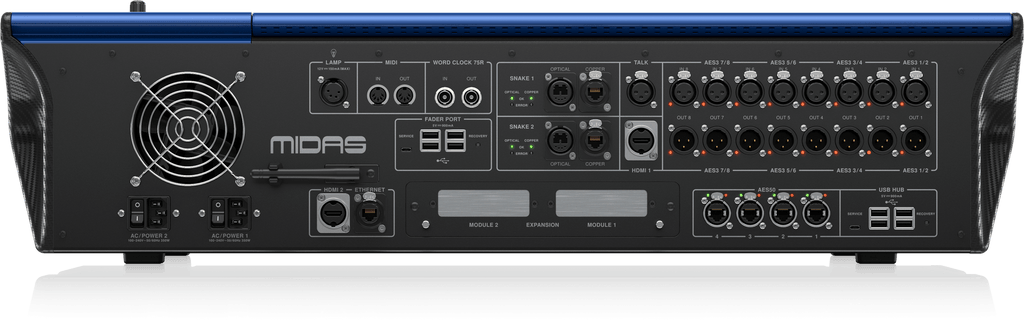

Local I/O: 8 XLR Inputs, 8 XLR Outputs
Power Supply: Dual Redundant, Auto-Ranging
Dimensions: Approx. 32.0 x 17.5 x 8.5 in
Weight: Less than 30 kg with case Exact console-only weight not published
