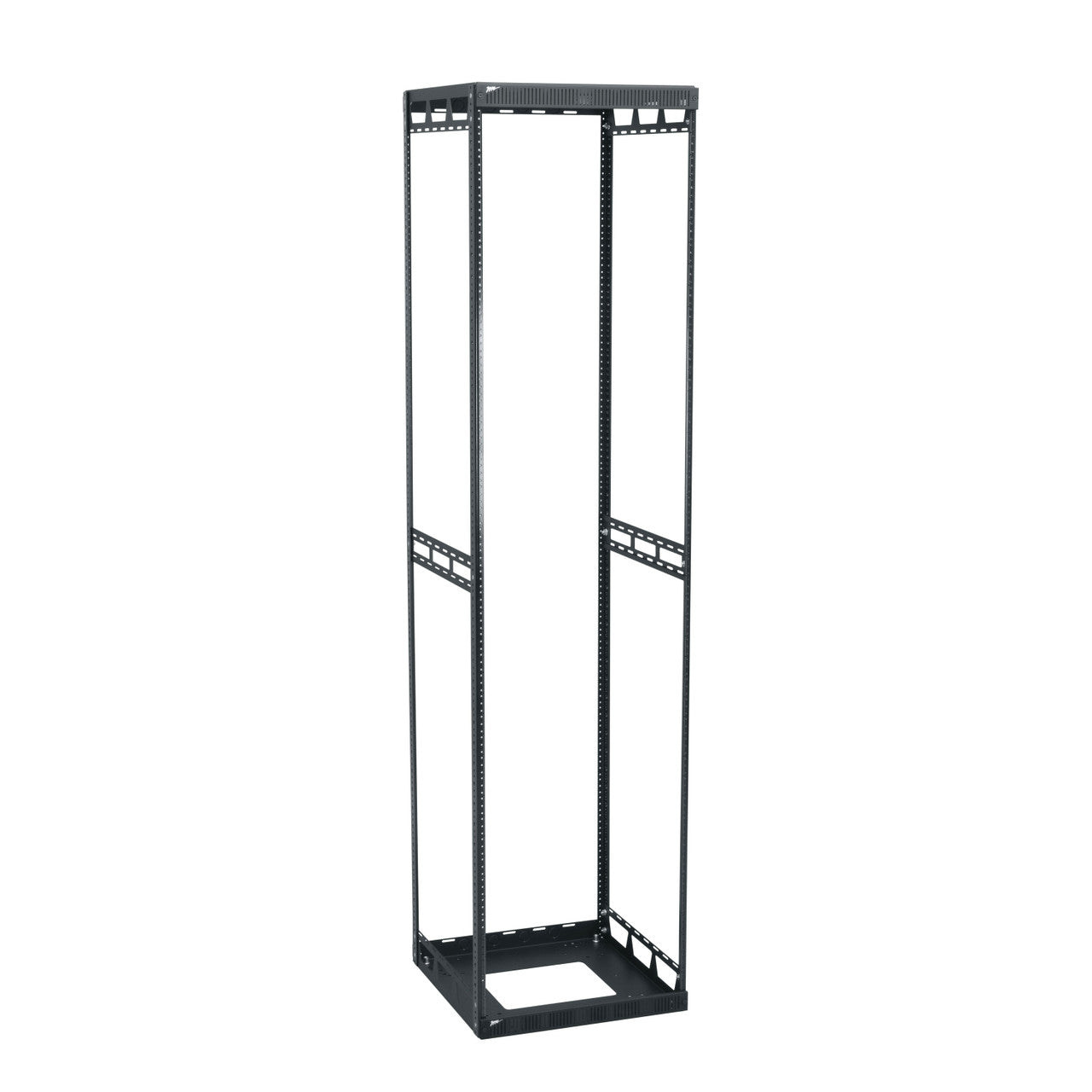

Our popular Slim 5 Series rack frame system meets a wide range of project requirements with a strong steel construction and wide open access for easy integration. The Slim 5 Series ships ready-to-assemble.
- 37RU
- 26" (660mm) Depth
- Lightweight, open design is easy to work with
- Bolt-together design allows for flat shipment via UPS
- Unique interlocking corner joint for exceptional strength and easy assembly
- Accepts optional removable steel side panels for security and control airflow
- Top includes two laser knockout locations to mount cooling fans
- Standard front and rear fixed 10-32 threaded rackrail with marked spaces
| Depth | 26 |
| Height | 68.5 |
| Panel Width | 19 |
| Product Weight | 46 |
| Rack Units | 37 RU |
| Shipping Weight | 57.5 lbs (26.1 kg) |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 26 |
| Usable Height | 64.75 |
| Width | 19.13 |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
