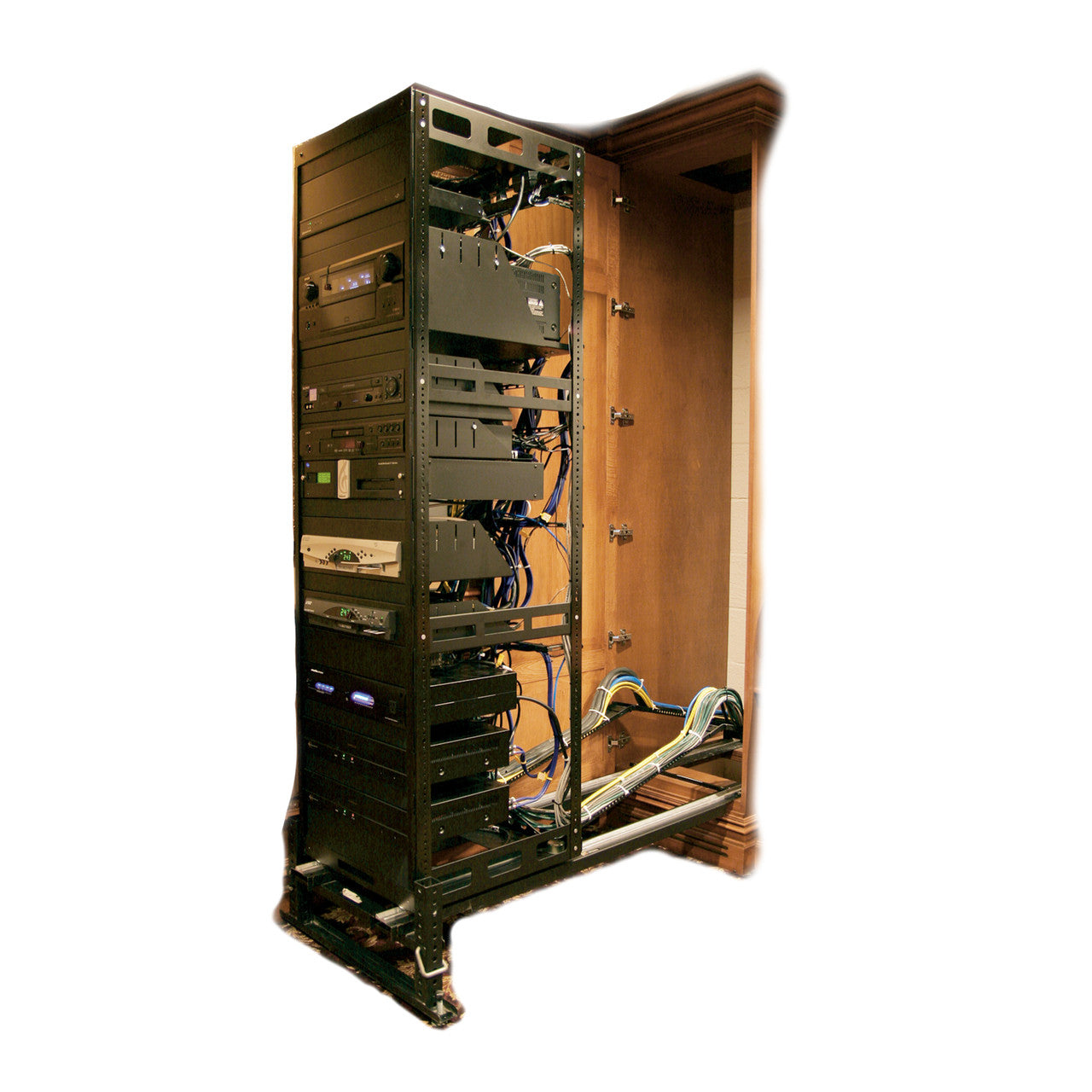

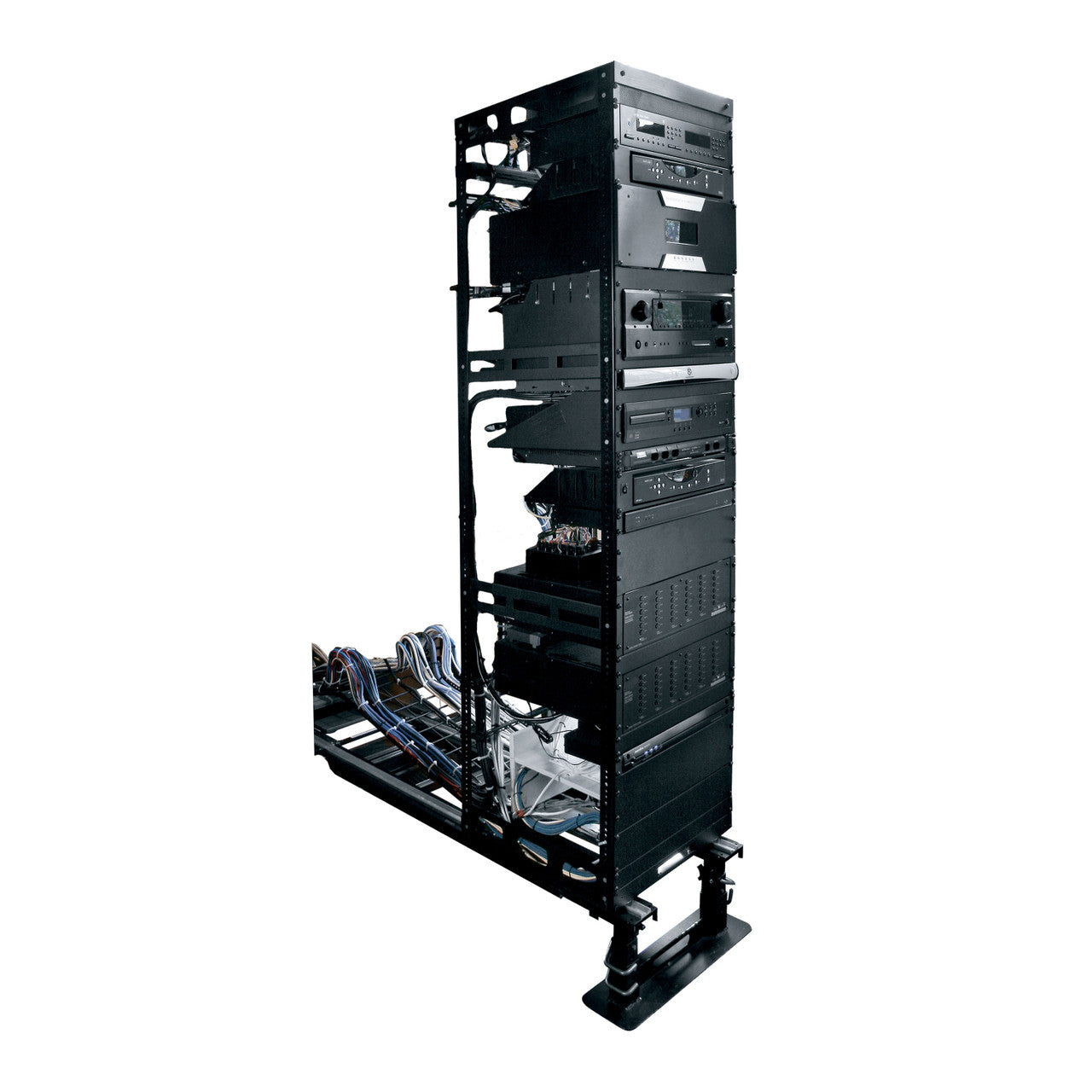

OverviewSpecify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Articulating cable carriers provide effective cable management (non-rotating models only)
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
specification Dimensions & Measurements
| Depth |
20 in (50.8 cm) |
| Extension Length |
48 in (121.9 cm) |
| Height |
58.94 in (149.7 cm) |
| Primary Package Weight |
73.6 lbs (33.4 kg) |
| Rack Units |
31 RU |
| Usable Depth |
20 in (50.8 cm) |
| Usable Height |
54.25 in (137.8 cm) |
| Weight Capacity |
650 lbs (294.8 kg) |
| Width |
19.25 in (48.9 cm) |
Characteristics & Features
| Federal Ops Country of Origin |
USA |
| Rack Rail Type |
10-32 |
Certifications & Warranties
