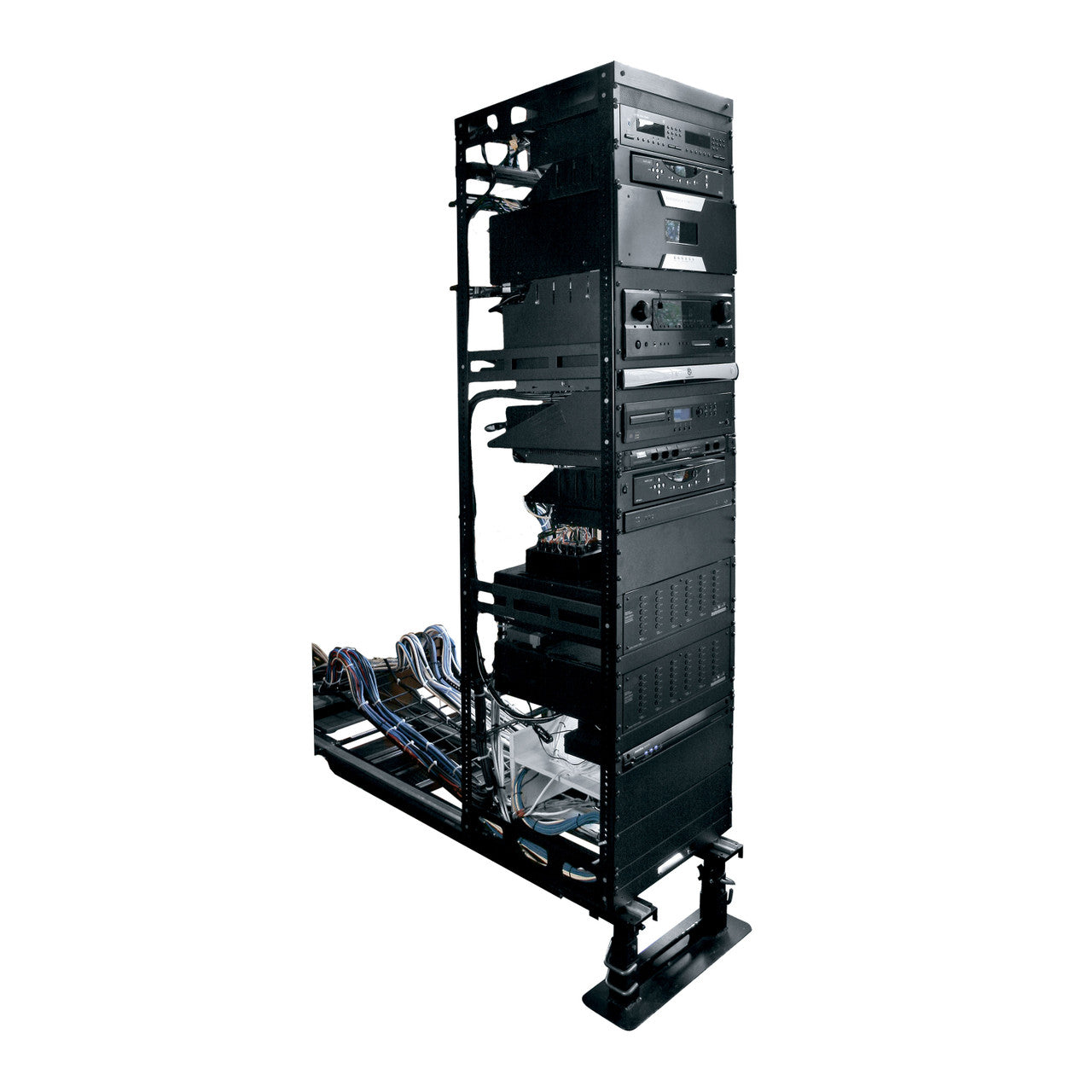

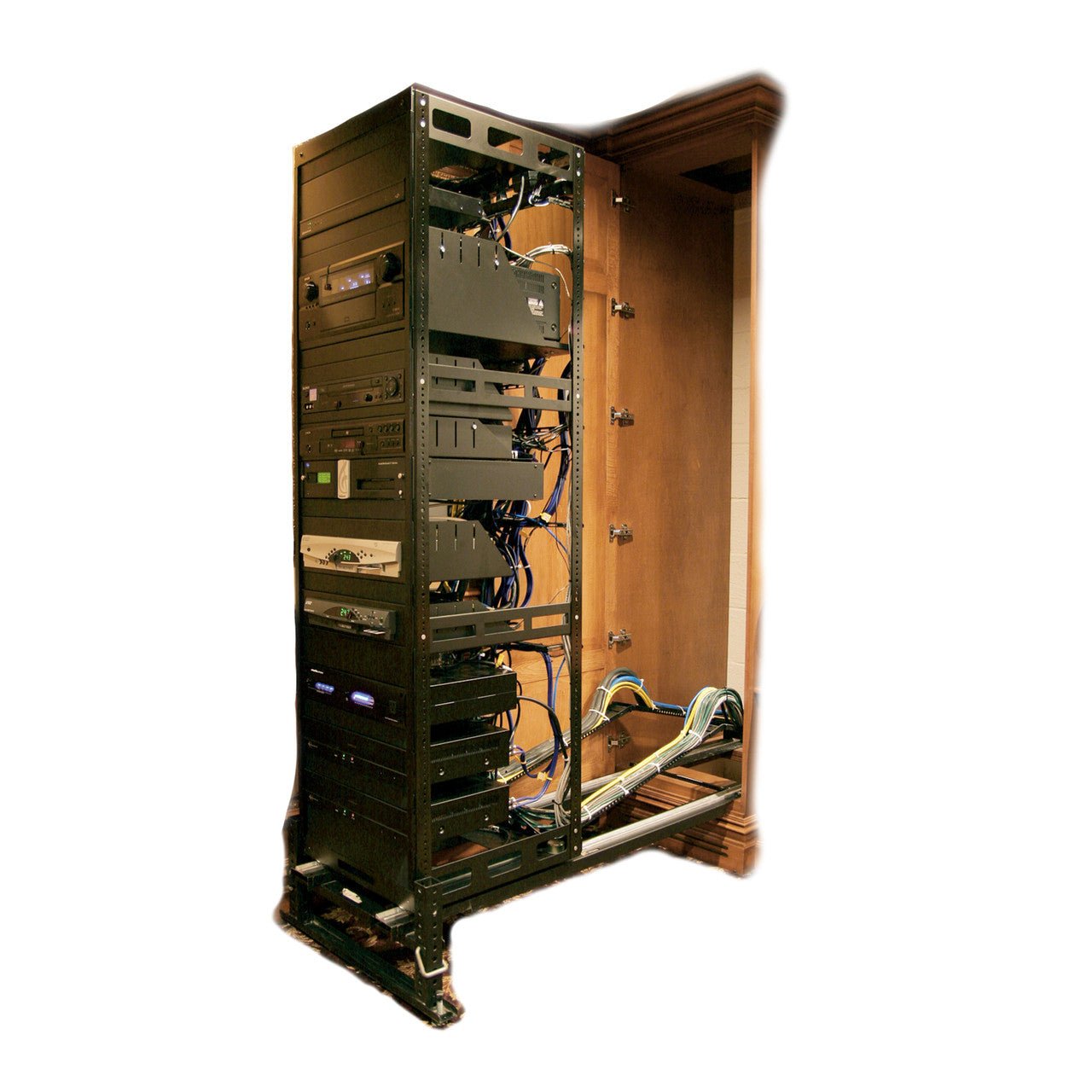

OverviewSpecify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Articulating cable carriers provide effective cable management (non-rotating models only)
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
specification Dimensions & Measurements
| Depth |
20 |
| Extension Length |
48 |
| Height |
71.19 |
| Primary Package Weight |
77.55 |
| Rack Units |
38 RU |
| Usable Depth |
20 |
| Usable Height |
66.5 |
| Weight Capacity |
650 |
| Width |
19.25 |
Characteristics & Features
| Federal Ops Country of Origin |
USA |
| Finish |
Black Powder Coat |
| Material |
Steel |
| Rack Rail Type |
10-32 |
Certifications & Warranties
