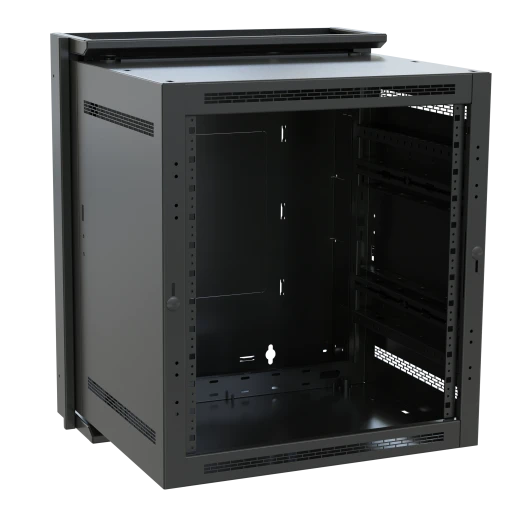

The DWR Series Wall Racks are now Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!
- 18RU and 26" Deep

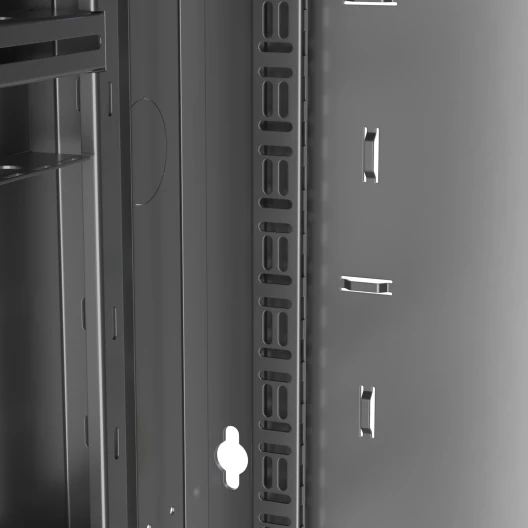

- Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)

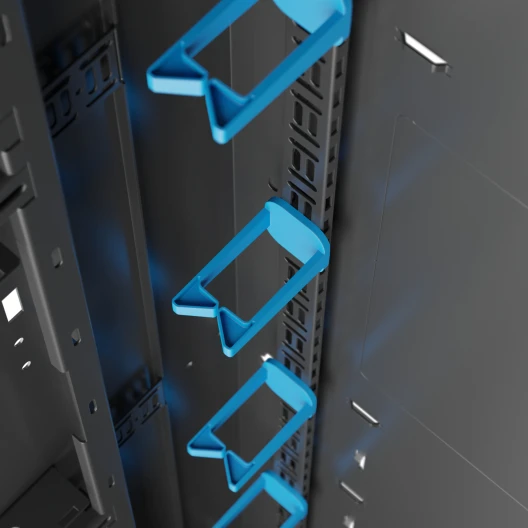

- Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
- Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
- Center section rear channel accommodates optional PDT and PD Slim PDUs to save space

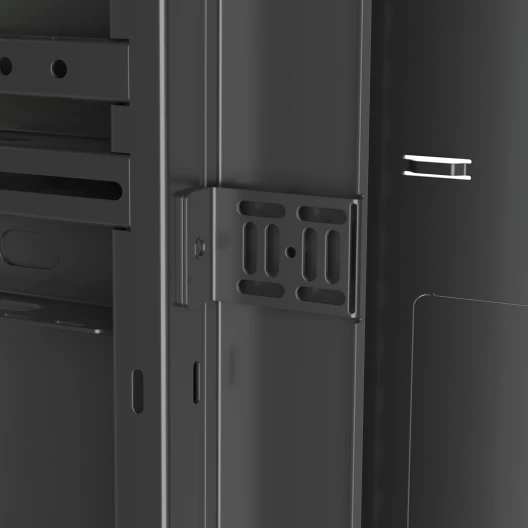

- Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite
- Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room

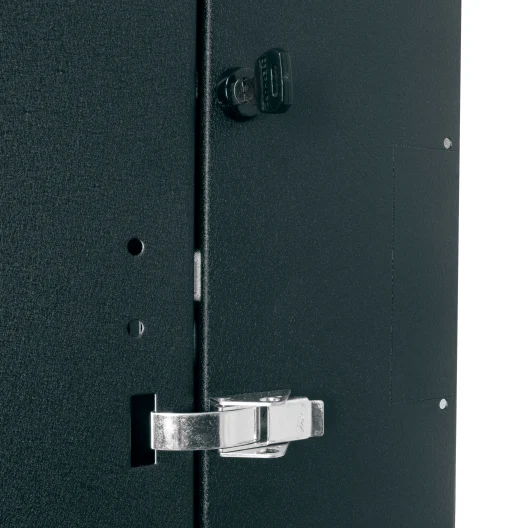

- Center section swing is reversible, and can be both key-locked and padlocked
- Center section is keyed differently from optional front door for additional security

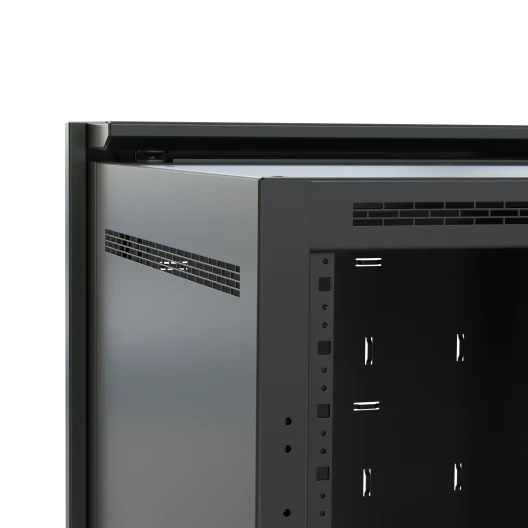

- Designed for active or passive cooling to support all systems
| Depth | 26 |
| Height | 38.56 |
| Product Weight | 83.99 |
| Rack Units | 18 RU |
| Shipping Weight | 120.49 lbs (54.7 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 24 |
| Usable Height | 31.5 |
| Width | 23.4 |
| Available Internationally | Yes |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | No |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
