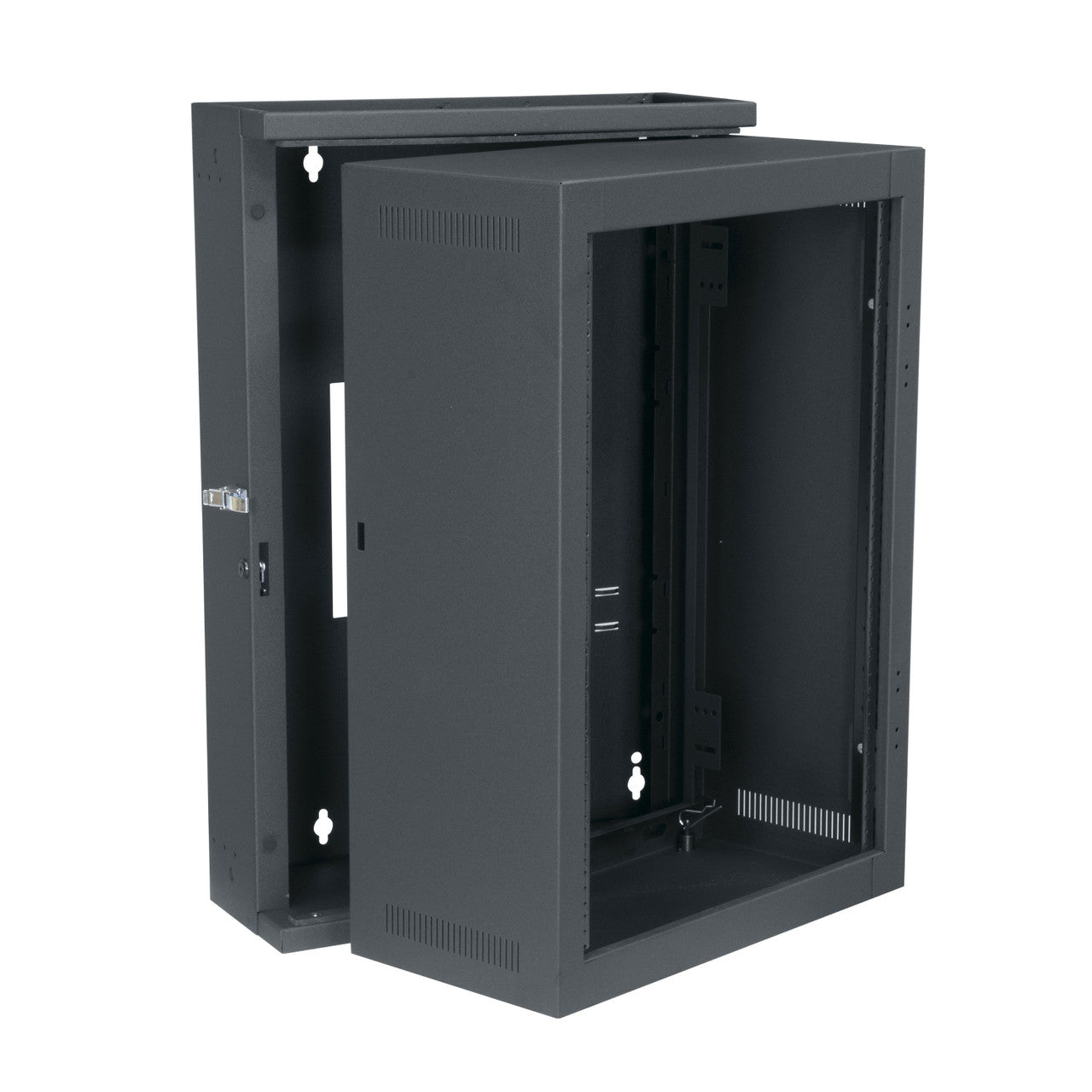

OverviewAn economical solution for smaller systems, this pivoting, sectional wall cabinet provides unparalleled quality and is ideal for use in both secured and unsecured areas.
- 16RU and 22" Deep
- Fully welded construction for strength
- Patented Tool Free Quick-Mount™ system for center section mounting
- Center section swing is reversible, and can be both key-locked and padlocked
- Center section is keyed differently from optional front door for added security
- Optimized for passive thermal management
- Standard front adjustable 10-32 threaded rackrail
- UL Listed in the US and Canada with a 150lbs. (68kg) weight capacity
specification Dimensions & Measurements
| Depth |
22 |
| Height |
35 |
| Product Weight |
82 |
| Rack Units |
16 RU |
| Shipping Weight |
102 lbs (46.3 kg) |
| UL Load Capacity |
150 lbs (68 kg) |
| Usable Depth |
20 |
| Usable Height |
28 |
| Width |
23.38 |
Characteristics & Features
| Federal Ops Country of Origin |
Mexico |
| Finish |
Black Wrinkle Powder Coat |
| Front Door |
No |
| Rack Rail Type |
10-32 |
