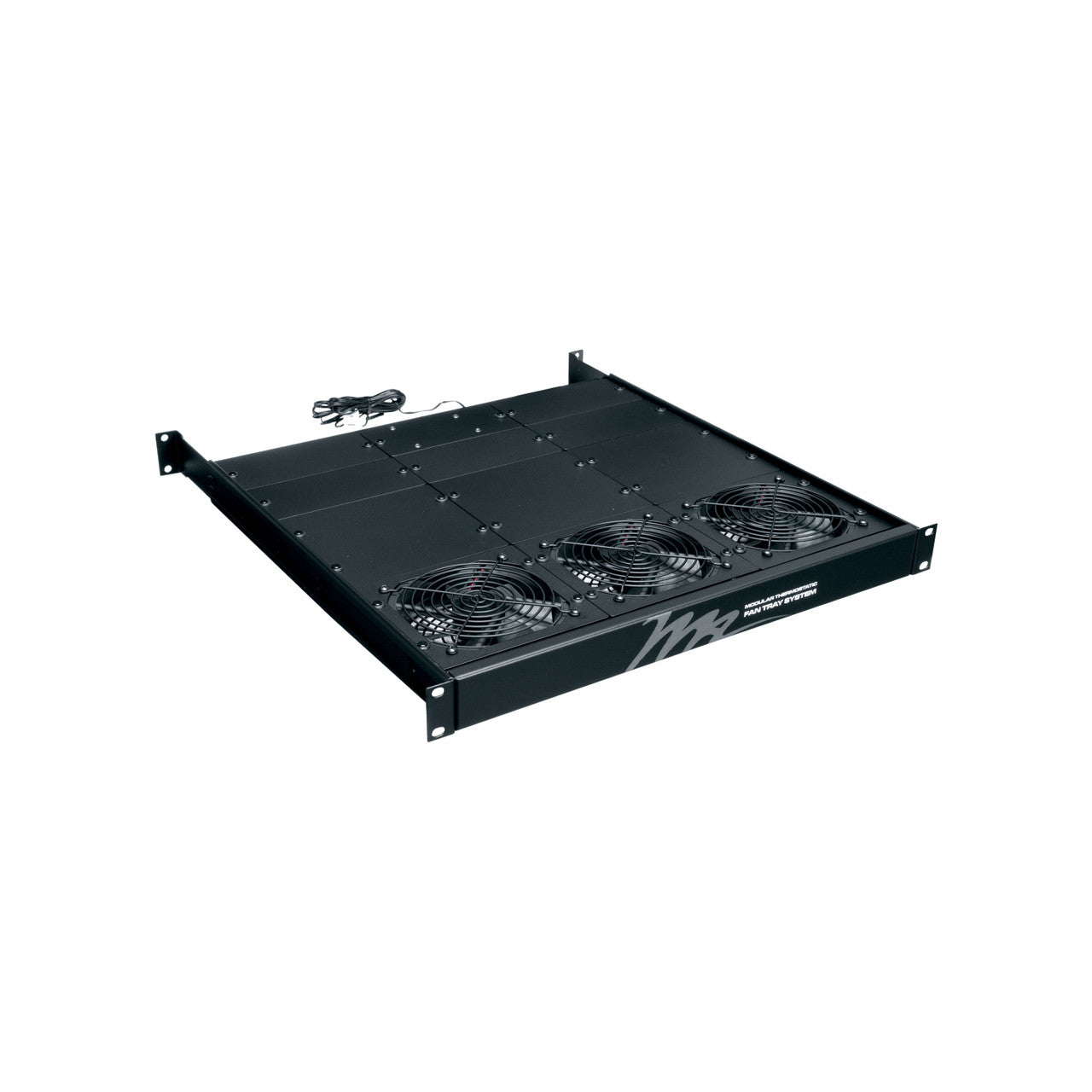

OverviewFan tray system lets you locate fans directly above vents on hot equipment to help hot air get moving in the right direction for rack cooling systems. • Uses from 3 to 8 quiet 4” DC fans (69 CFM for each fan) • 8 fan mounting positions and optional add-on fans let you locate fans exactly where needed • Energy-saving thermostatic control for automatic on/off as needed • Powered by a single power cord • Occupies only one rackspace • Adjustable mounting range of 18” to 32”
- Locates fans directly above hot equipment to promote air flow
- Tray can be adjusted on mounting rails as needed
- Fans can be located in best positions for project needs
- Additional fans can be added, up to a total of 8
- Includes power supply and thermostatic controller
- Includes three fans (69 CFM per fan)
specification Dimensions & Measurements
| CFM |
207 |
| Depth |
18.1 |
| Height |
1.75 |
| Mounting Depth Max |
32 in (81.3 cm) |
| Mounting Depth Min |
18 in |
| Primary Package Weight |
13.6 |
| Rack Units |
1 RU |
| Volts DC |
12 VDC |
| Width |
19 |
Characteristics & Features
| Available Internationally |
No |
| Component Type |
Active |
| Mounting Points |
4 |
