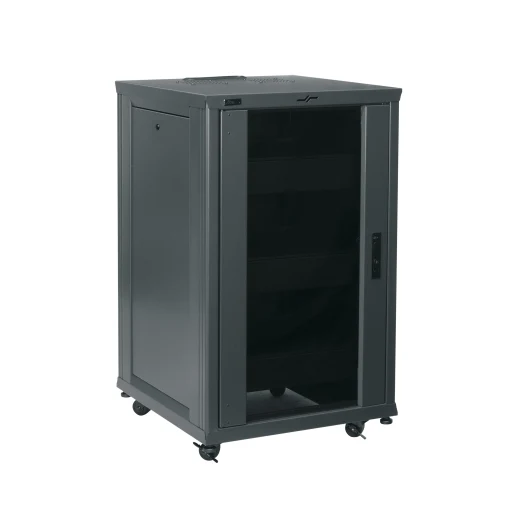

The Essex RCS Series Residential Configured Rack System offers exceptional quality and value at cost-effective prices for residential installers. It is completely assembled at the factory and ships with pre-installed accessories to save contractors time in the field while eliminating packaging waste.
- 18RU, 24" Deep
- Fully welded steel construction
- Ships fully assembled to save time
- Locking removable side panels for easy integration
- Glass front door, locking rear access panel standard
- Includes front and rear adjustable rackrail
- Assembled with
- (3) 2RU, 16" deep shelves
- (3) 1RU blank panels
- Includes top mounted DC fans
- One set of Essex accessory brackets included to mount vertical power or lace strips
- Add a bracket to mount additional Essex accessories, ESX-ACC-BKT
| CFM | 138 |
| Depth | 24 in (61 cm) |
| Height | 38.62 in (98.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 111.4 lbs (50.5 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 131 lbs (59.4 kg) |
| UL Load Capacity | 1200 lbs (544.3 kg) |
| Usable Depth | 20.1 in (51.1 cm) |
| Usable Height | 31.5 in (80 cm) |
| Width | 23.3 in (59.2 cm) |
| Available Internationally | No |
| Color | Metallic Gray |
| Federal Ops Country of Origin | USA |
| Finish | Textured Metallic Gray Powder Coat |
| Rack Rail Type | 10-32 |
