Keep Eyes On The Signs. Power Designed to Protect, Remotely Manage andMonitor Your Digital Signage Installations
Middle Atlantic’s compact Premium+ PDU with RackLink™ is a best-in-class solution for digital signage installations. Premium+ protects system from power anomalies that can damage sensitive displays or tiles and offers robust remote monitoring/logging capabilities via IP connectivity to ensure ultimate up-time. This means that you and your customers can feel confident that all eyes are seeing the messaging as expected.

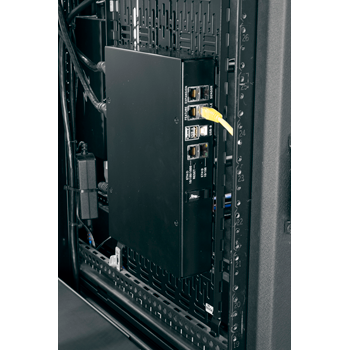

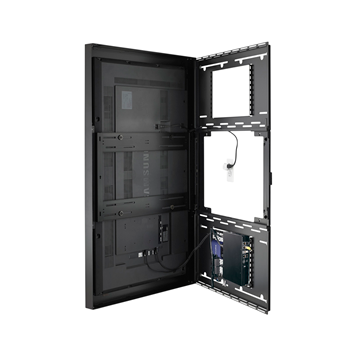

- Slim form factor is easily concealed behind displays and LED tile walls
- Includes mounting bracket for on-wall installation
- 24/7/365 connectivity with the RackLink™ Remote Management System to monitor everything plugged into the PDU
-
Simple system setup with advanced capabilities
- Save programming with integrated scheduling, variable timed sequencing, ping sequencing, auto healing, thresholds, and multiple notification options.
- Easily connect to control and IT systems with universal compatibility through custom drivers, SNMP v3/MIB, RESTful API, and 3rd party integrations.
- Connecting via Wi-Fi with a 3rd party dongle dramatically reduces the number of Ethernet ports required
- Configure one PDU or a thousand PDUs in a matter of moments with the ability to save your configuration files
- Remotely update firmware without having to shut down the PDU, ensuring consistent system uptime
-

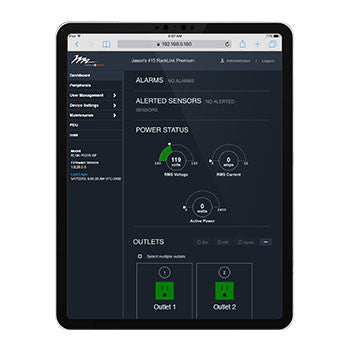

Best-in-class monitoring, logging, and data reporting for remote system management with a user-friendly interface.
- Superior metering accuracy of total power draw down to outlet level including current, voltage, power, power factor and energy usage
- Patent-pending IP sequencing sets user-defined delays and establishes that an IP device will not power on until its networked companion is powered on
- Connect up to 32 environmental sensors to monitor the temperature and humidity and alert potential threats that could cause system downtime
- Industry-leading network security and support of IT protocols for demanding end users
- SSL/TLS Certificates
- SSH
- HTTPS
- Self-signed certificates
- Built in partnership with Raritan, a leader in the growing intelligent power market, using their Xerus platform to deliver robust security features and intelligence
- Compliant with AVIXA Energy Management Standard to support energy efficient AV system design, monitoring and optimization.
Specs:
GENERAL INFO
Surge Protected: 2-Stage MOV
LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
cULus: Yes
FCC Standard: Yes
DIMENSIONS
Product Weight (US): 6.6
TECHNICAL INFORMATION
AC Voltage Output: 12A
AC Voltage Input: 80-140VAC 60/50Hz
Amps: 15 Amps
Current Max: 120VAC 15A
Firmware Update: Yes - See Resources
Graphical User Interfaces: RackLink™ Dashboard
LAN Ports: Yes
Max Surge Current: 30,000 Amps (one time), 19,500 Amps (two times within 5 minutes)
Mounting: Compact
Patent No: 19,500 Amps
Receptacle Type: NEMA 5-15R
Surge Suppression: 2-Stage MOV
