OverviewHigh definition rackmount consoles are designed for the needs of the AV system, with a 100% digital platform that maintains complete digital signal integrity. This results in data that remains intact between source and display with no compatibility issues and no need for specialty cabling or accessories. Supporting a broad range of applications, rackmount consoles are ideal whenever rackmount control and system monitoring is required.
- High definition (1080P), widescreen (16:9) display
- Designed for digital video, featuring an HDMI certified 100% digital platform including HDMI/DVI inputs and HDCP compliance
- No special cables required – compatible with industry standard cables and extenders
- KVM model is IP-enabled for remote monitoring and management
- Models available in standard console configuration for single systems or console with 8 Port KVM for managing multiple systems from a single station

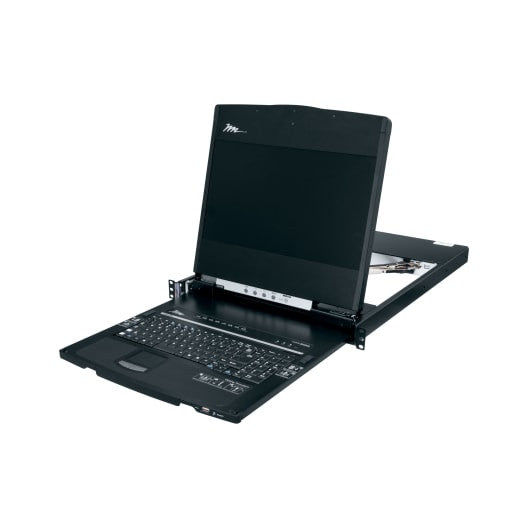

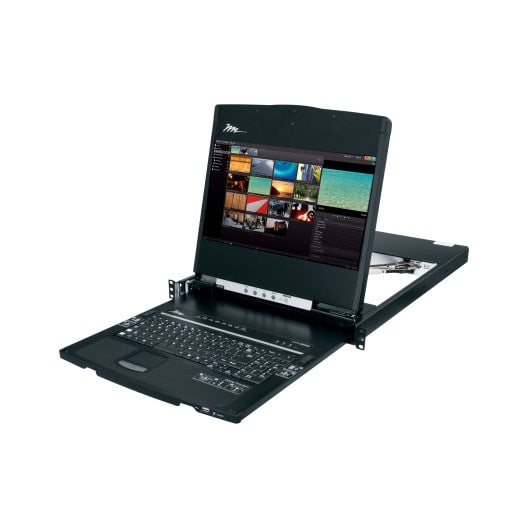

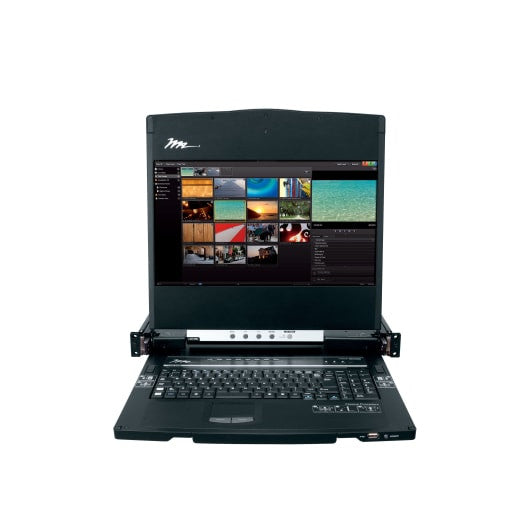

- Compact, 1-rackspace design includes 17” widescreen display, keyboard and touchpad

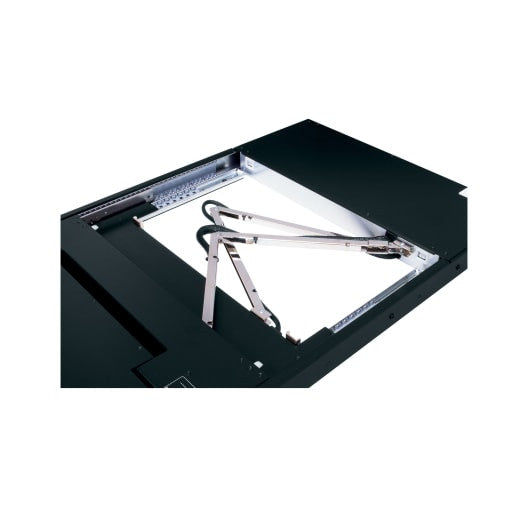

- Dual rail design allows monitor to reside in open position for system monitoring while keyboard is recessed
- Fast one-person installation with quick-install rails
specification Dimensions & Measurements
| Depth |
25.23 in (64.1 cm) |
| Height |
1.73 in (4.4 cm) |
| Max Screen Size |
17.3 in (43.9 cm) |
| Mounting Depth Min |
21.63 in |
| Primary Package Weight |
25.08 lbs (11.4 kg) |
| Rack Units |
1 RU |
| Usable Depth |
29.23 in (74.2 cm) |
| Width |
18.9 in (48 cm) |
Characteristics & Features
| Material |
Metal |
| Mounting Points |
4 |
| Style |
Single Console |
