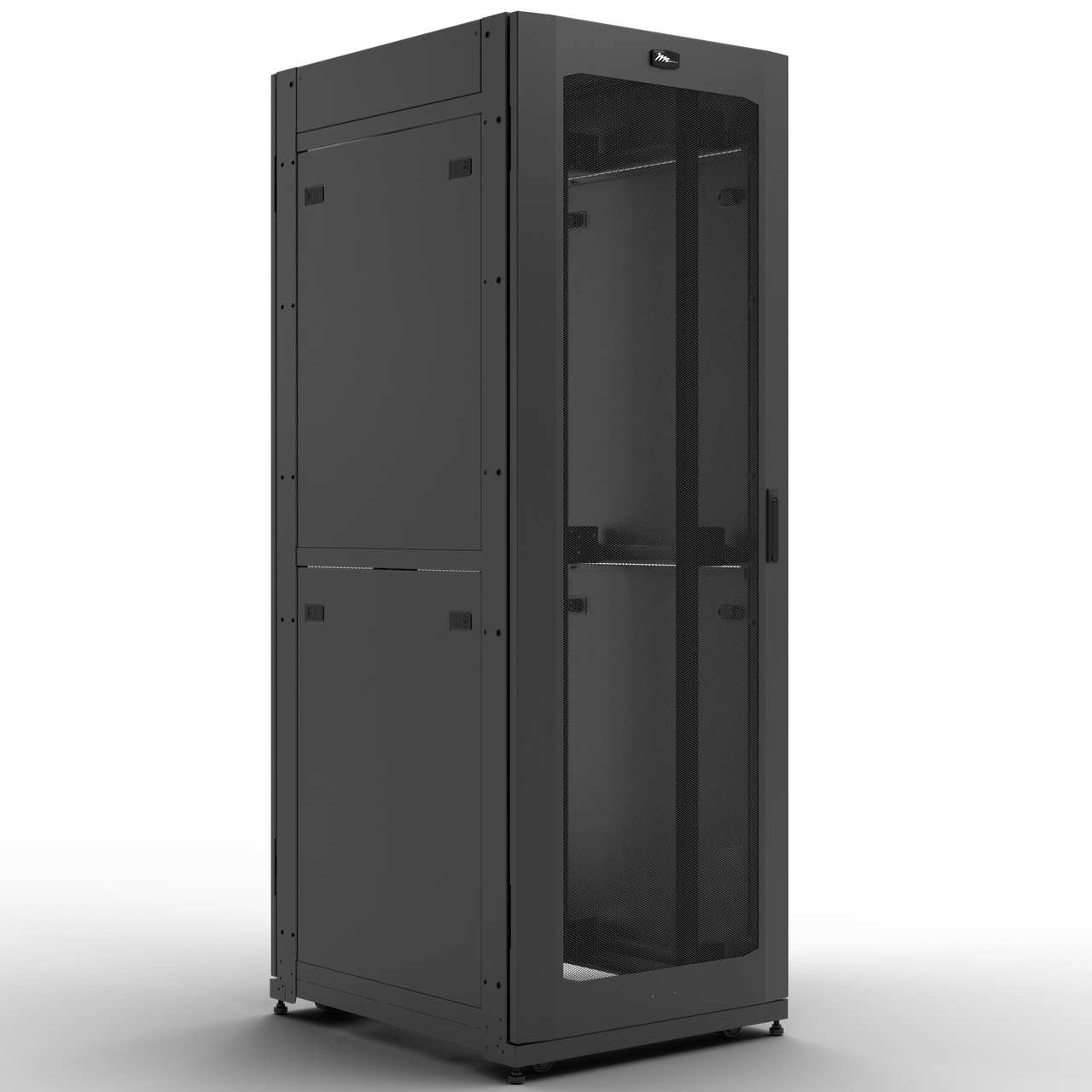

OverviewThe SNE Series Digital is configured for digital (IP based) security systems consisting of high-density cabling, network equipment, and servers. Optional Tool-Free Lever Lock™ system accommodates small devices including encoders, power supplies, and Access Control Systems. • Fully configured Security Network Enclosure with passive ventilation for data centers o 70% open area vented front door o Pair of split flush mount locking side panels o 2 pair of adjustable cage-nut rackrail (including 6mm hardware) o Lever Lock™ compatible (accepts all Lever Lock™ vertical 21” accessories) o 30” width o 36” overall depth o 45 rackspace o 100 6mm cage-nuts/rack screws included SNE Series Digital with passive cooling (front to rear) • 70% open area split rear door • Solid top with brush cable pass-through
- Lever Lock™ compatible (accepts all 21” vertical accessories)
- Configured for passive front-to-back cooling
- UL/ETL listed and seismic certified
- Includes 70% open front door and 70% open area split rear door
- Includes solid top with brush cable pass-through
- Includes 2 pair of adjustable cage-nut rackrail
- Includes 100 6mm cage nuts and rack screws
- Includes 4 leveling feet
- Includes 4 casters
Specifications Dimensions & Measurements
| Depth |
36" |
| Height |
84.77 |
| Panel Width |
19 |
| Rack Units |
45 RU |
| UL Load Capacity |
3000 lbs (1,360.8 kg) |
| Usable Depth |
32.48 |
| Usable Height |
78.75 |
| Width |
30" |
Characteristics & Features
| Airflow Direction |
Passive Front to Rear |
| Component Type |
Passive |
| Federal Ops Country of Origin |
USA |
| Finish |
Black Texture Powder Coat |
| Gangable |
Yes |
| Material |
Steel |
| Product Configuration |
Pre-Configured |
| Rack Rail Type |
Cage Nut |
| Rack Type |
Pre-Configured |
| Rear Door |
Yes |
| Seismic Rated |
Yes |
| Side Panel |
Yes |
| System Type |
Digital |
