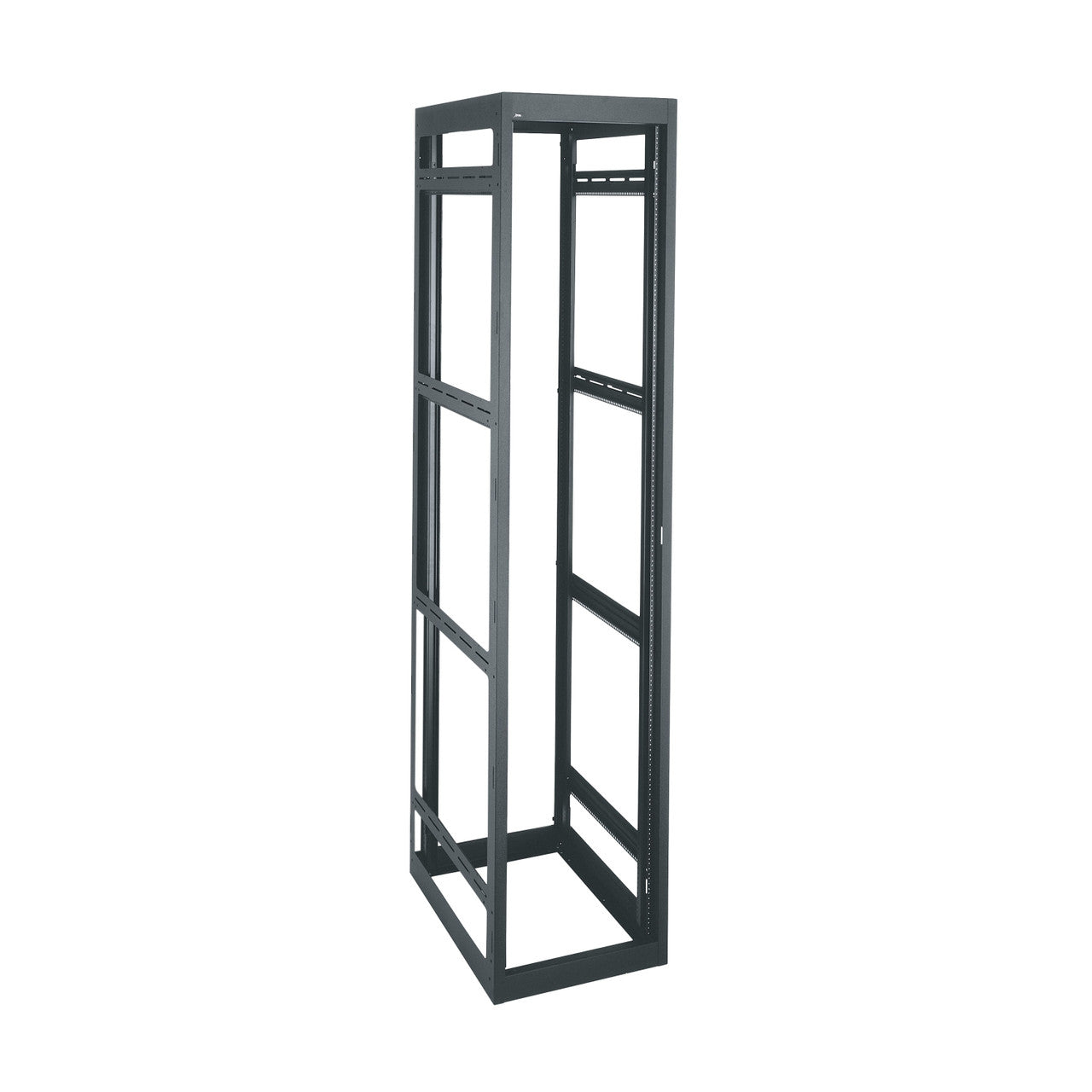

OverviewThis taller version of our broadcast standard 22” wide rack has extra height for taller spaces – delivering a full 54 rackspaces in the same floor space as a standard rack. Built-in horizontal lacing bars enable quick tie-and-slide lacing of video cable bundles. Specify a VMRK to maximize capacity, and where seismic certification and open or removable sides are required or preferred.
- Fully welded construction for strength
- 54 spaces of racking height
- Racks gang together when fully loaded
- Multiple lacing points and slotted rail brackets for cable management flexibility
- Standard front and rear adjustable 10-32 threaded “L-Rail” with numbered spaces
specification Dimensions & Measurements
| Depth |
31.4 |
| Height |
100.64 |
| Primary Package Weight |
358 |
| Rack Units |
54 RU |
| UL Load Capacity |
2500 lbs (1,134 kg) |
| Usable Depth |
29 |
| Usable Height |
94.5 |
| Weight Capacity |
10000 |
| Width |
22 |
Characteristics & Features
| Federal Ops Country of Origin |
USA |
| Gangable |
Yes |
| Rack Rail Type |
10-32 |
| Rear Door |
No |
| Seismic Rated |
Yes |
