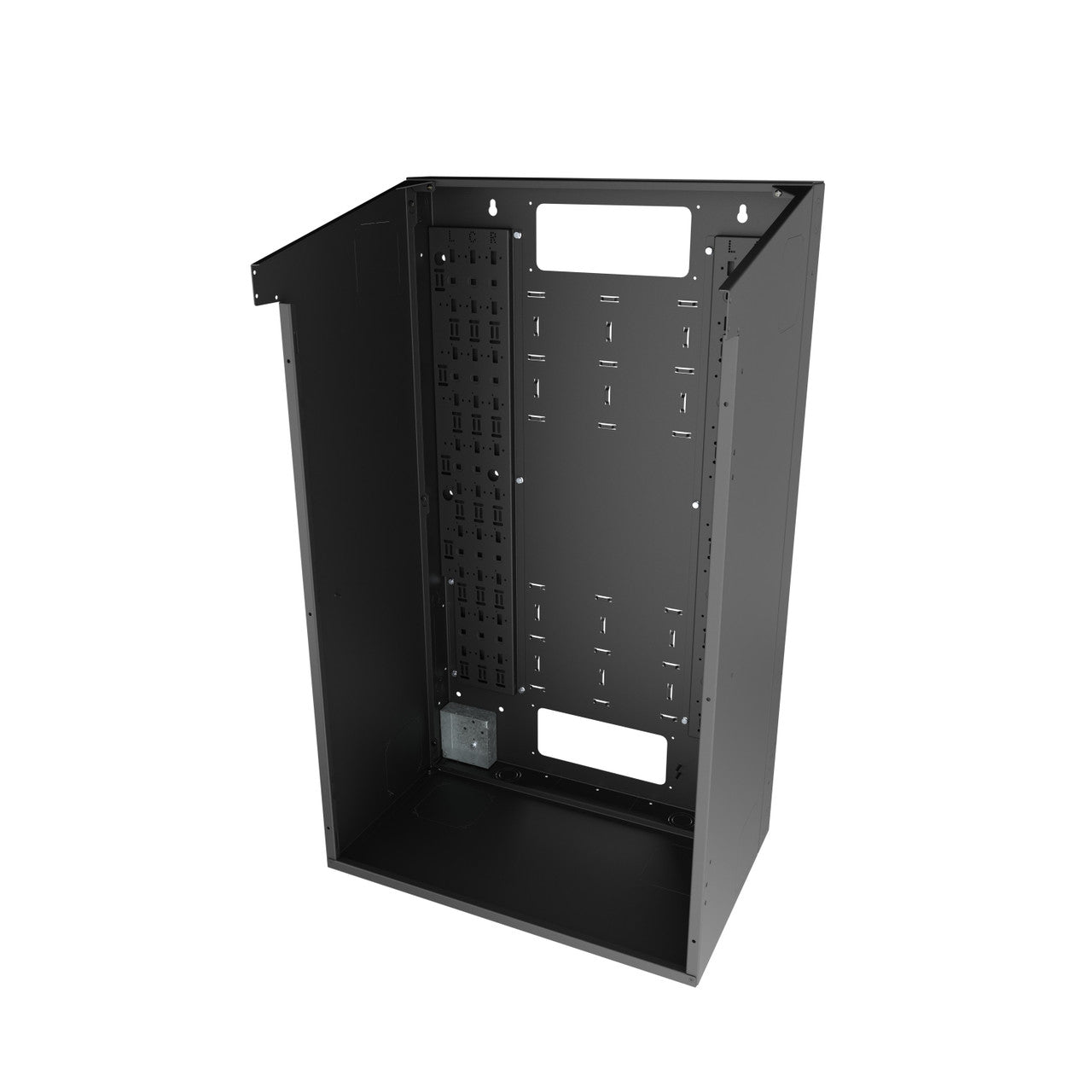

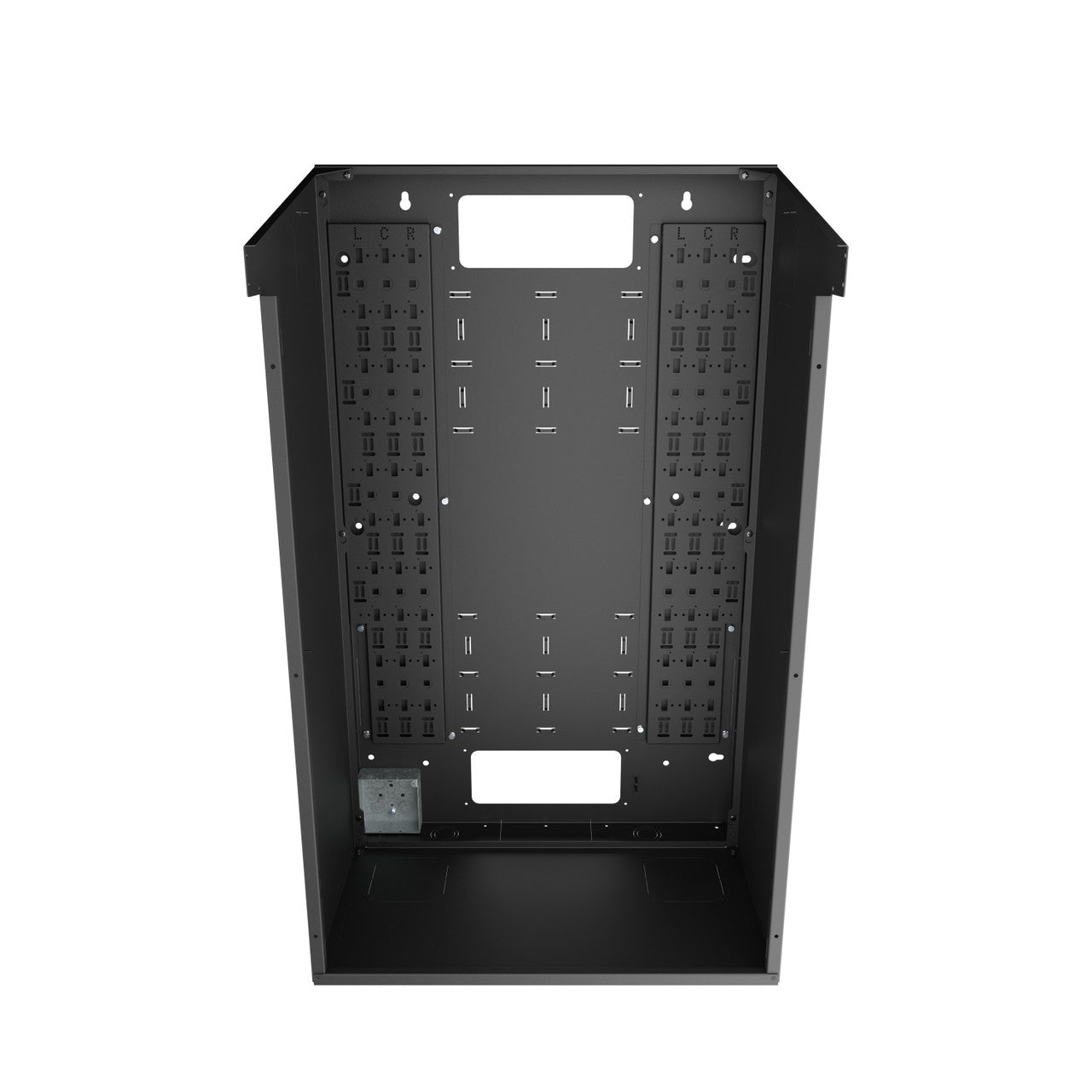

- This VWM Backpan is for use with the Split Door options
- Solid or Plexi

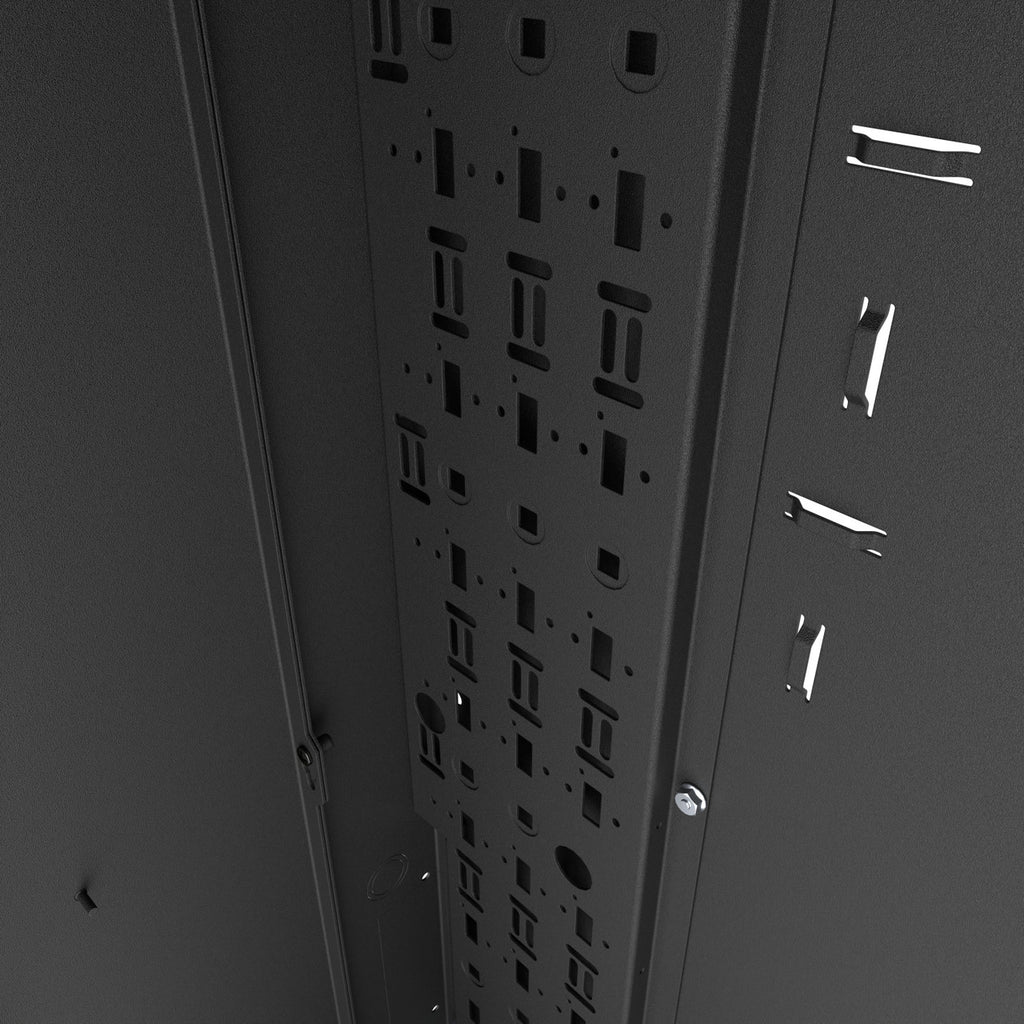

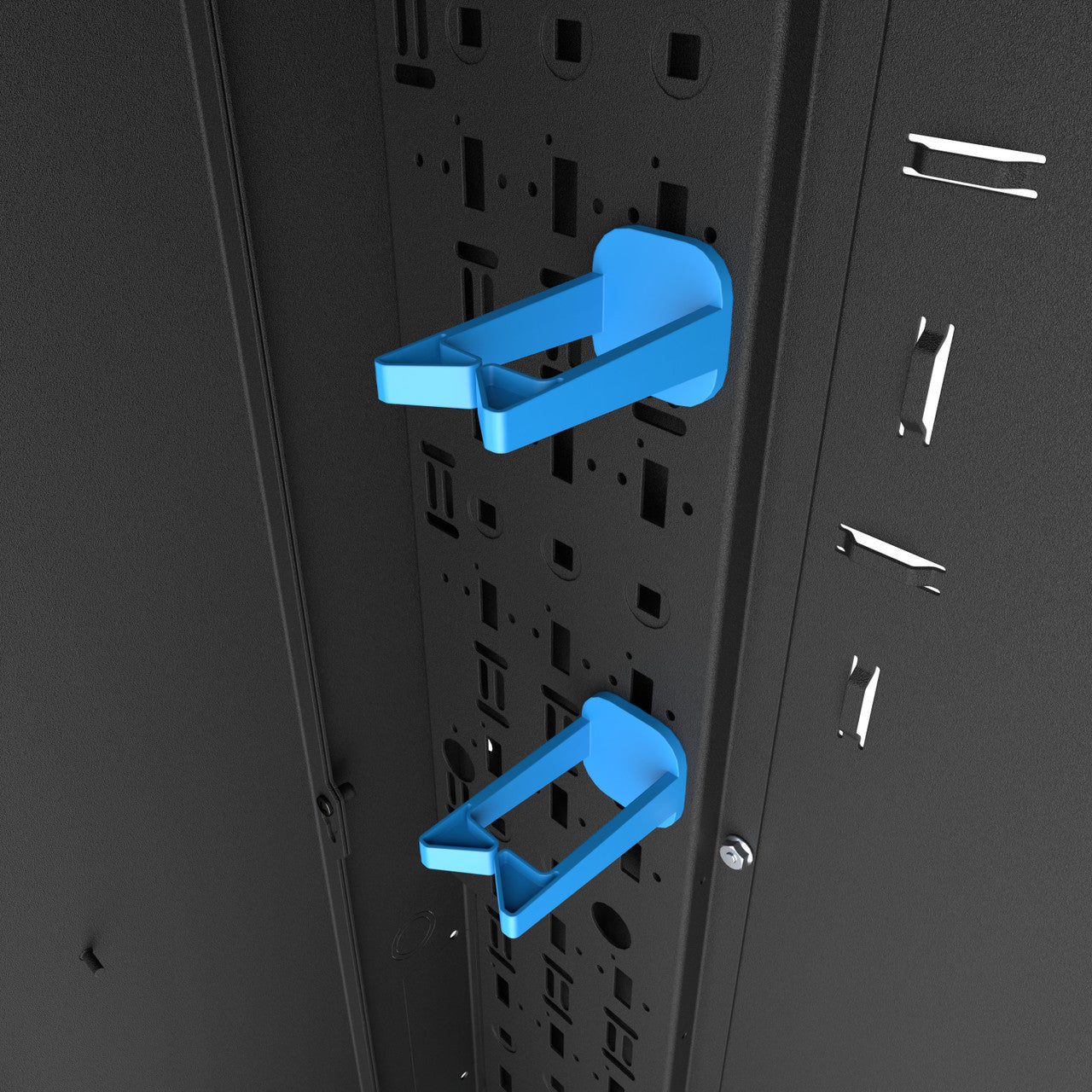

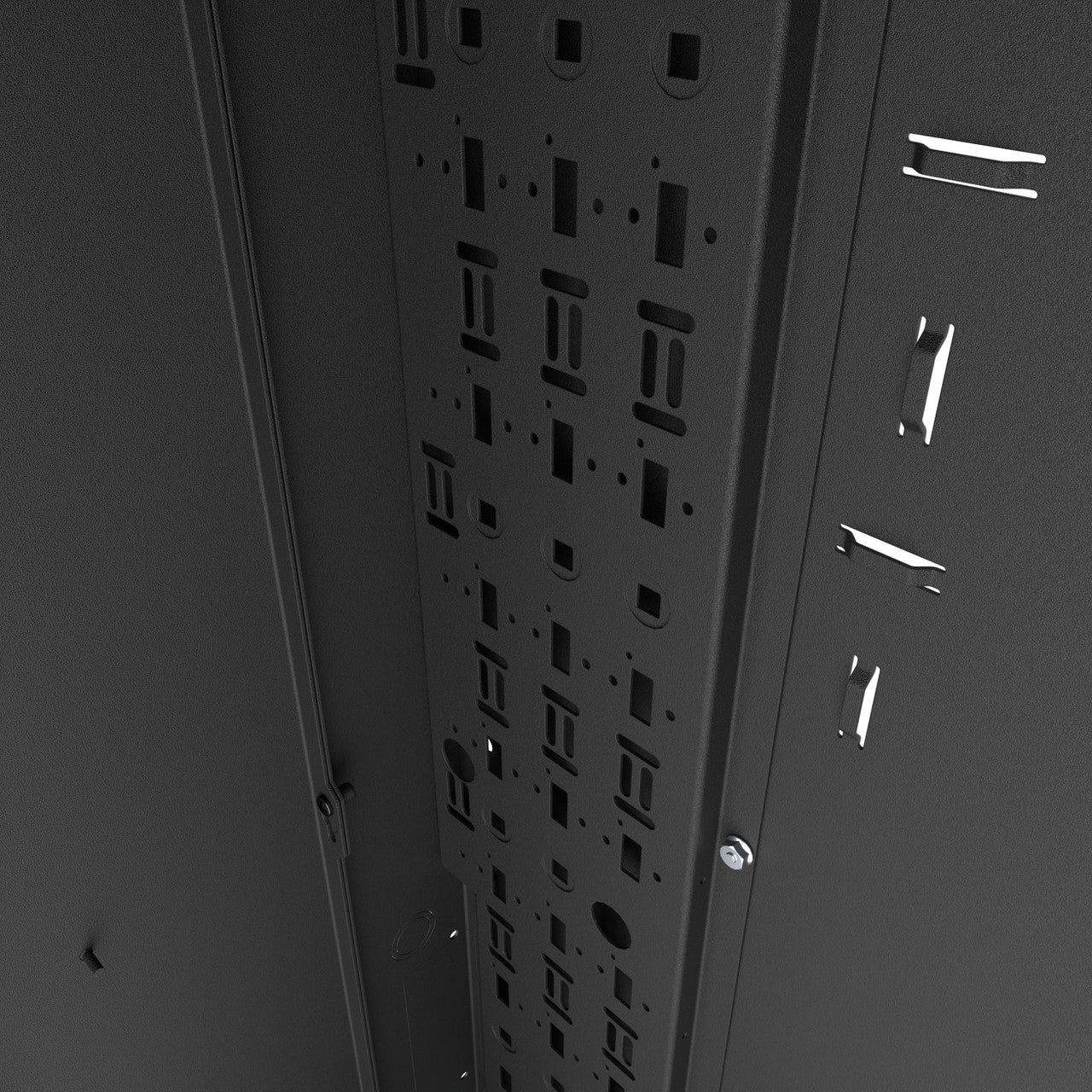

- Now Forward Compatible with native mounting for Forward Cable Management in the backpan!
- Equipment mounts vertically in the VWM Backpan (knobs up)
- Don't forget to add rackrail!

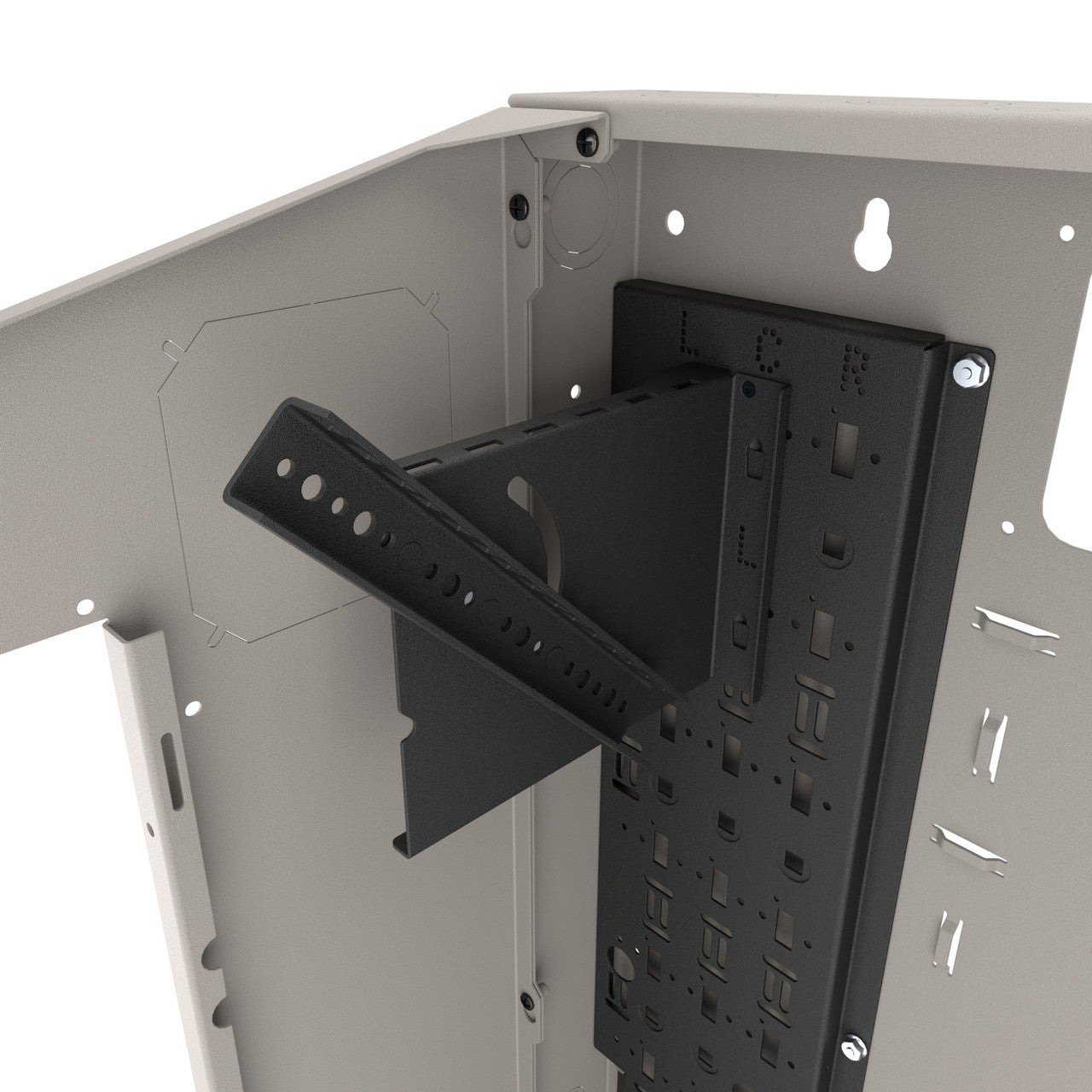

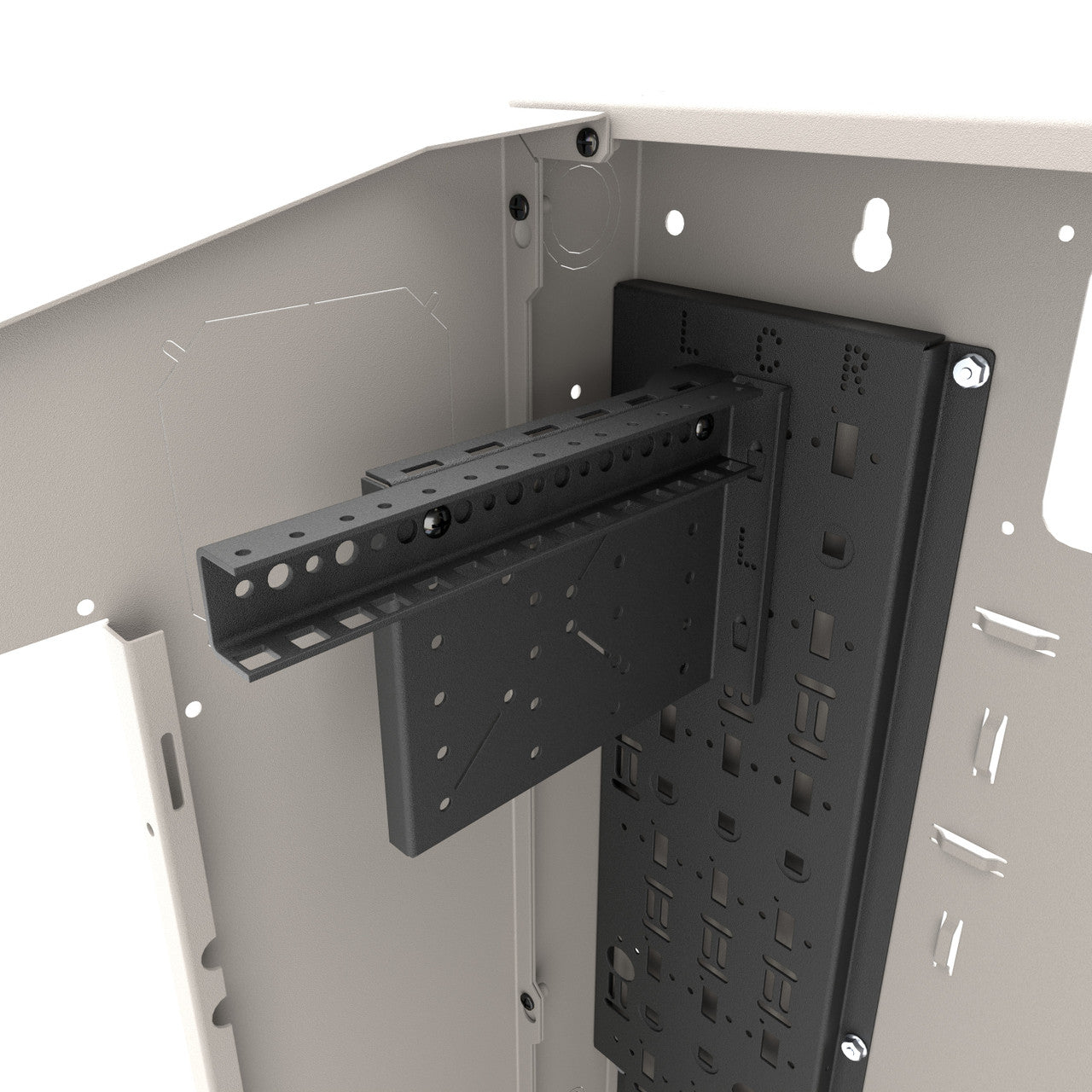

- VWM Rackrail kits are 10-32 tapped and Cage Nut
- Fixed or Pivot style rackrail kits available
- Rackrail kits are easily moveable from left, center, right and up and down
- The VWM Backpan accepts Lever Lock with the LL-VWM-BPK
- 42" Overall Height
- 10" Overall Depth (off the wall)
- Durable Black Powder Coat Finish
- Easily configurable using the 3D Design Tool
Dimensions & Measurements
| Depth | 10 |
| Height | 42 |
| Product Weight | 35 |
| Shipping Weight | 45 lbs (20.4 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 33.8 |
| Width | 25 |
Characteristics & Features
| Available Internationally | Yes |
| Color | Black |
| Door Type | Split Door |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
