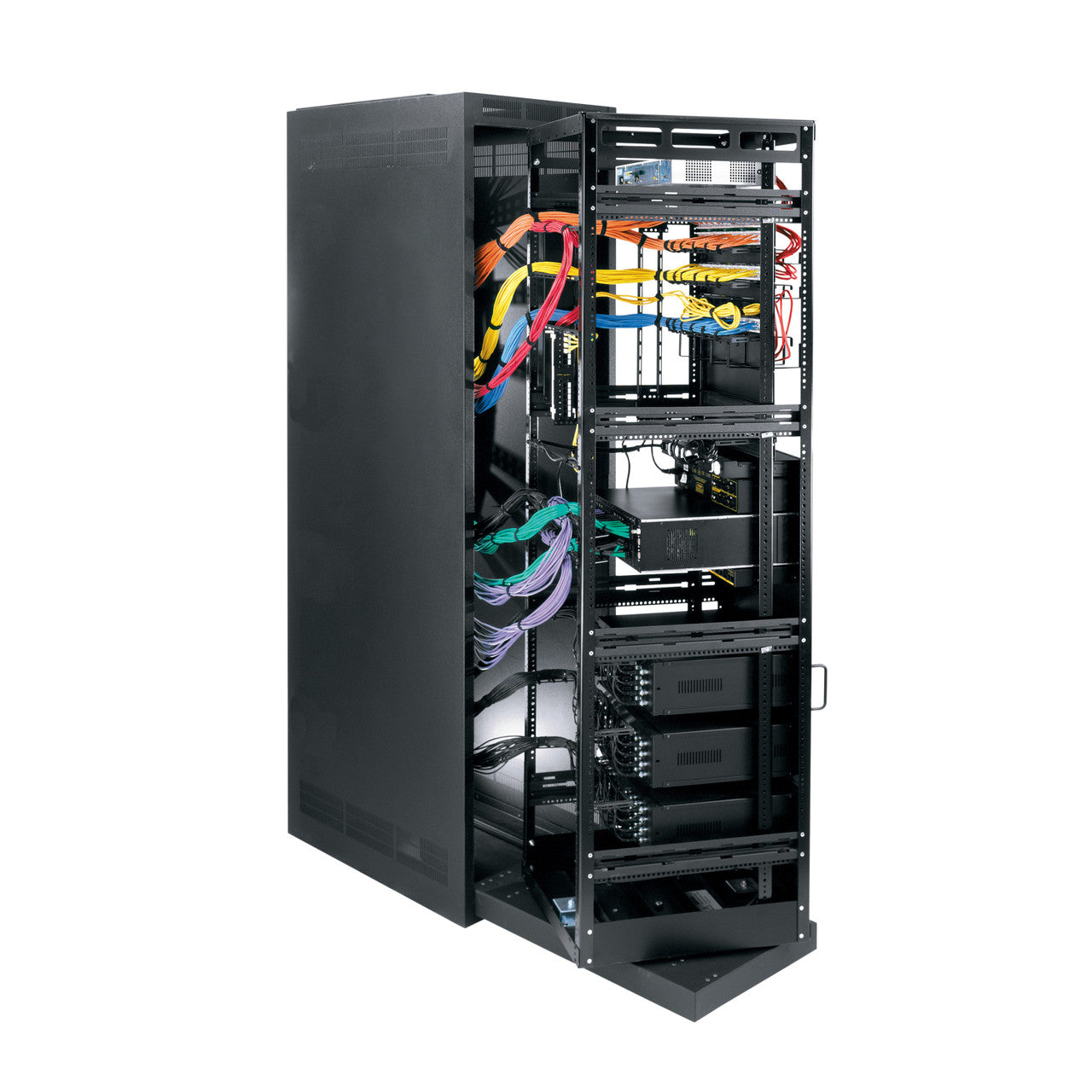

OverviewThe WR Series was designed to provide rear access for equipment even when the equipment bays are placed up against a wall or back-to-back. Factory-assembled in its own host enclosure, the rack frame pulls out and rotates for service access. Specify a WR Series enclosure when easy access to rear equipment connections is required for larger audio, video and security equipment installations but an access aisle is not practical.
- 24RU
- 32" Overall Depth / 26" Useable Depth
- Host enclosure can be pre-installed on-site
- Detachable rack frame can be integrated with equipment and tested off-site
- Requires no additional accessories to roll out and rotate
- Engineered ventilation is optimized for passive thermal management
- Rack frame features built-in cable management tie points
- 4” laser knockouts provided for cable pass-through and ganging multiple racks
- Standard front and rear 10-32 threaded rackrail with marked spaces
specification Dimensions & Measurements
| Depth |
32.88 in (83.5 cm) |
| Height |
53.85 in (136.8 cm) |
| Product Weight |
213.8 lbs (97 kg) |
| Rack Units |
24 RU |
| Shipping Weight |
244 lbs (110.7 kg) |
| UL Load Capacity |
750 lbs (340.2 kg) |
| Usable Depth |
26 in (66 cm) |
| Usable Height |
42 in (106.7 cm) |
| Width |
24 in (61 cm) |
Characteristics & Features
| Federal Ops Country of Origin |
USA |
| Finish |
Black Wrinkle Powder Coat |
| Rack Rail Type |
10-32 |
