Overview

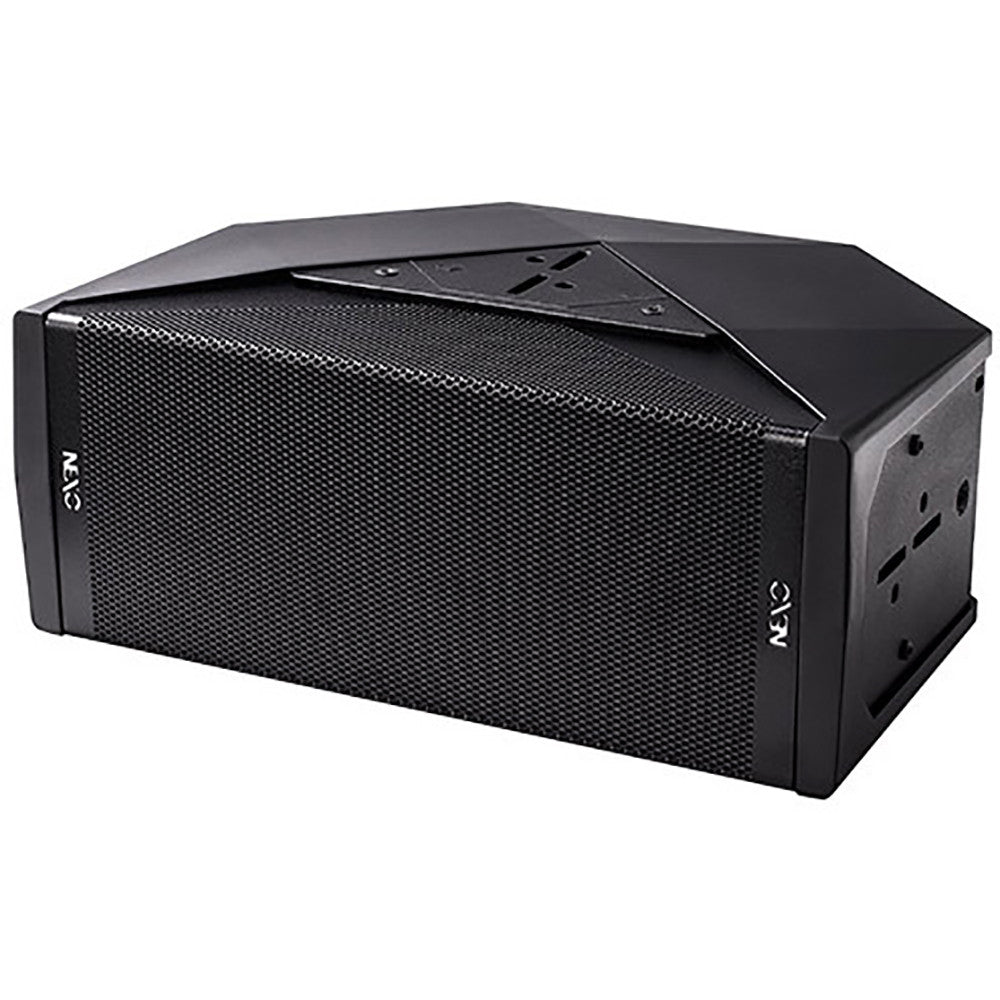

Spec’d for the installation professional and designed for the widest range of applications, ID24i (install spec) features threaded holes for compatibility with NEXO and 3rd-party mounting hardware. For rapid installation ID24i is equipped with captive cable for fast, secure connectivity with existing wiring. Install models are available in Black or White with a matching fabric grille.
Features
-
Compact, high-powered sound reinforcement speaker
-
Measures just 309mm W x 132mm H x 233mm D
-
Rotatable horn for 90° x 40°HF coverage
-
Dedicated Install version with captive cable connectivity
-
Available in black or white with cloth grille
-
Threaded holes for compatibility with NEXO and other installation hardwar
-
Components LF: 2x4" – Long excursion – Neodymium magnet
-
HF: 1" voice coil ½" throat – Neodymium magnet
-
Height x Width x Depth 132 x 309 x 233mm (5.2" x 12.2" x 9.2")
-
Weight 6 Kg (13 lbs)
-
Material Water-resistant Polyurethane
-
Finish White: Structural paint, Black: Raw sandblasted polyurethane
-
Grille Stainless steel, Acoustic fabric, black or white
-
Rigging 6x 6mm threaded inserts
Specifications
|
Frequency Range |
95Hz – 20kHz (+/- 6dB) |
|
Sensitivity (1W / 1m) |
100dB SPL Nominal |
|
Peak SPL Level (1m) |
126dB Peak |
|
HF Dispersion Selection (according to horns) |
Selection of: 90°x40° |
|
Nominal Impedance |
16Ω |
|
Recommended Amplification per box |
200 to 500W |
