Overview

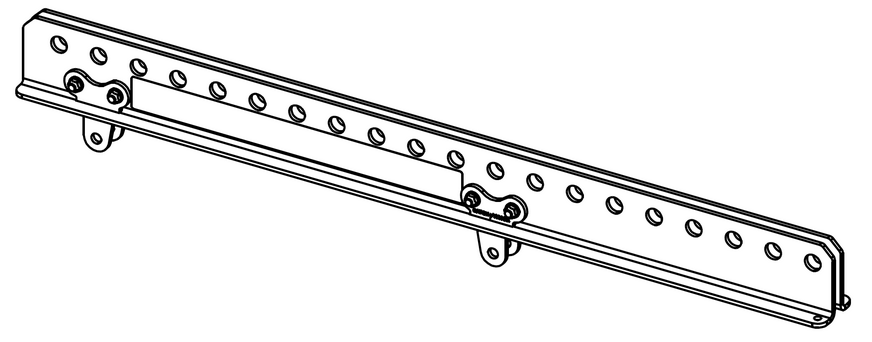

Nexo Acc, Geo M12 Extension Bar for Touring Bumper
Features

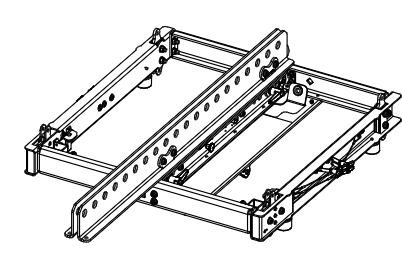

- Place EXBARM12 by the top and fit the guides into the slots on the BUMPM12.
- Lock with the quick release pins BL1240 presents on the BUMPM12.
- EXBARM12 allow a 1 or 2 rigging points hanging, with a negative or positive tilt.
- Use NEXO Simulation Software for mechanical prediction.
- Use shackle model: Alloy Bolt Type Shackles 3.25 Tons
- MAX 12x GEOM12, or 8x MSUB18, or NGEOM12 + 1.5NMSUB18 ≤ 12
Specifications
Weight: 11.5 kg / 25.4 lb
