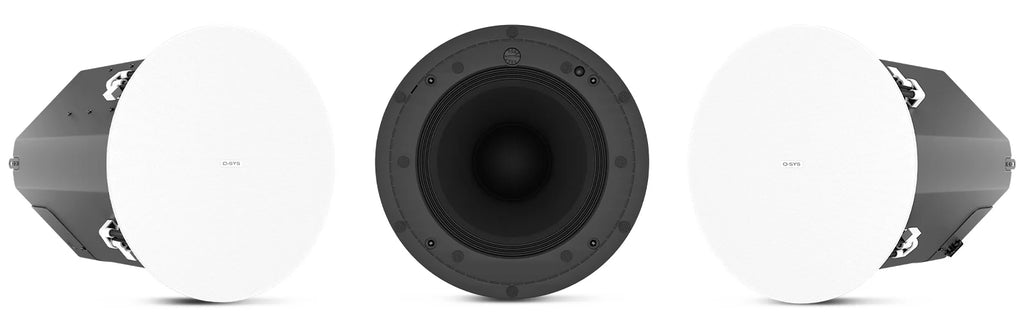

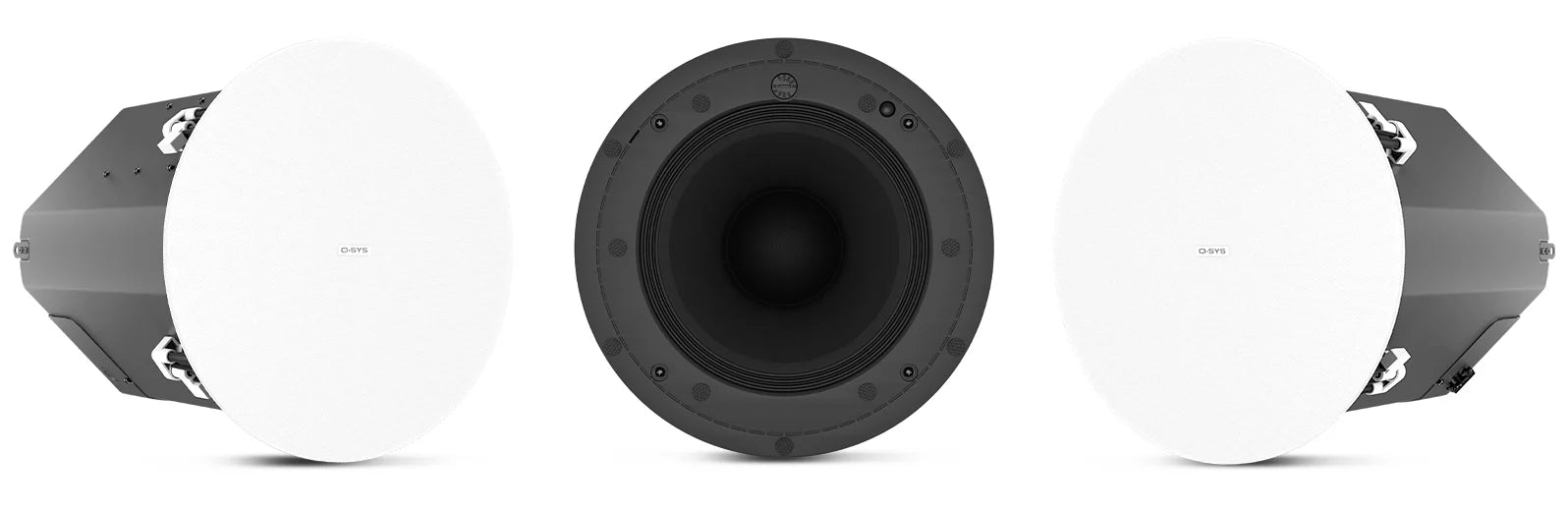

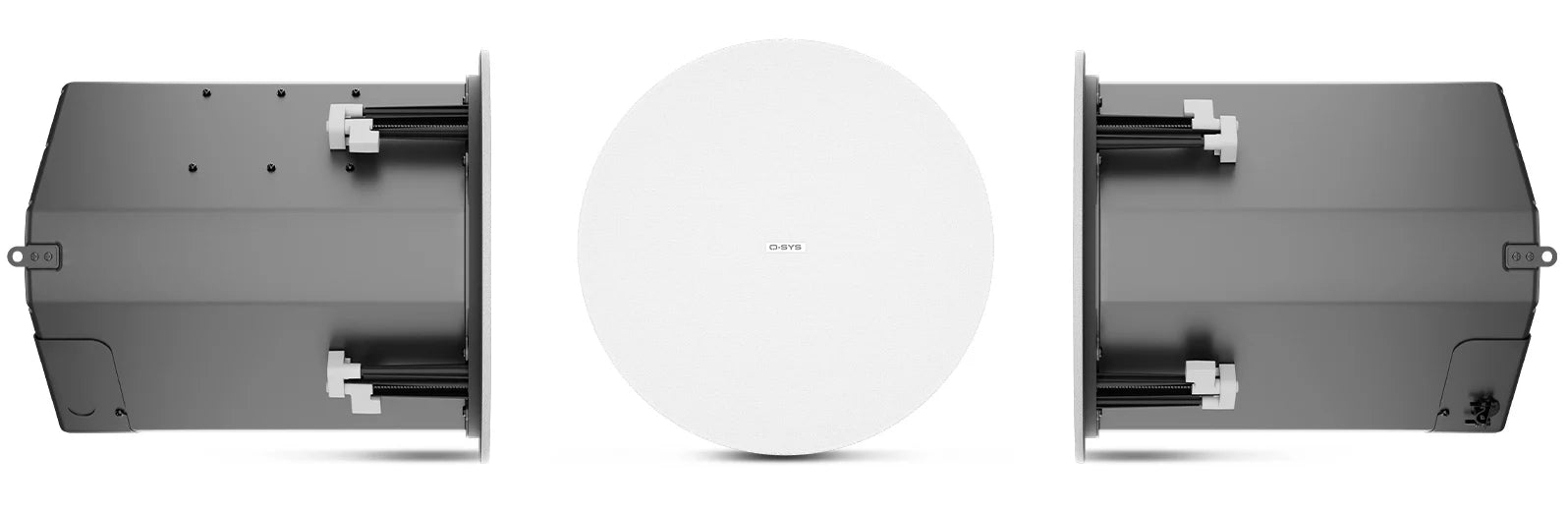

QSC {QSYS} AD-C10T-HPZB-WH
  • QSC {QSYS} AD-C10T-HPZB-WH
  • QSC {QSYS} AD-C10T-HPZB-WH
QSC {QSYS} AD-C10T-HPZB-WH

QSC {QSYS} AD-C10T-HPZB-WH

MSRP: $0.00
MAP: $0.00

10" Two-way high power, blind mount ceiling speakers, 70/100V transformer with 8Ω bypass. 90° conical coverage, includes C-ring and rails for blind mount installation. Color - White. Priced individually, sold only in pairs.

SKU: QSC-AD-C10T-HPZB-WH

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

AD-C10T-HPZB 10-inch, two-way, zero-bezel

Features

  • High-power 10-in ceiling loudspeaker with bezel-less design
  • Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • UL1480 and UL2043 certified
  • Available in white (RAL 9003), with black grille accessory sold separately.

Specifications

  • LF transducer: 10 in (254 mm), 2.0 in (50.8 mm) voice coil, ferrite
  • HF transducer: Coaxial compression driver, 1.5 in (38.1 mm) voice coil
  • Enclosure configuration: Two-way, ceiling loudspeaker, sealed
  • Coverage: 90° conical DMT
  • System bandwidth: -3 dB: 86 Hz – 20 kHz; -6 dB: 76 Hz – 20 kHz; -10 dB: 68 Hz – 20 kHz
  • Sensitivity: 92.5 dB @ 1 W/1 m
  • Max SPL (continuous): 116 dB
  • Max SPL (peak): 128 dB
  • Max SPL (calculated): 122 dB
  • Power rating: Continuous power 250 W @ 8 Ω, rated power 500 W
  • Bypass impedance: 8 Ω
  • Minimum impedance: 6.9 Ω @ 20 Hz
  • Transformer taps (70V/100V): 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
  • Enclosure material: ABS baffle on powder-coated steel back-can
  • Enclosure color: Black back-can, white grille (RAL 9010)
  • Connectors: 4-pin 5 mm Euroblock connector with parallel output
  • Dimensions (H × W × D): 13.5 × 13.5 × 13.75 in (342.9 × 342.9 × 349.25 mm)
  • Cutout diameter: 305 mm
  • Shipping dimensions (H × W × D): 19.5 × 17.5 × 32 in (495.3 × 444.5 × 812.8 mm), pair packed
  • Weight: 23 lb (10.5 kg)
  • Shipping weight: 68.1 lb (30.9 kg)
  • Included accessories: Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille
  • Optional accessories (sold separately): AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille
  • Ingress protection: IP-44
  • Safety agency: UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces; ROHS and CE compliant; baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems.
