Overview

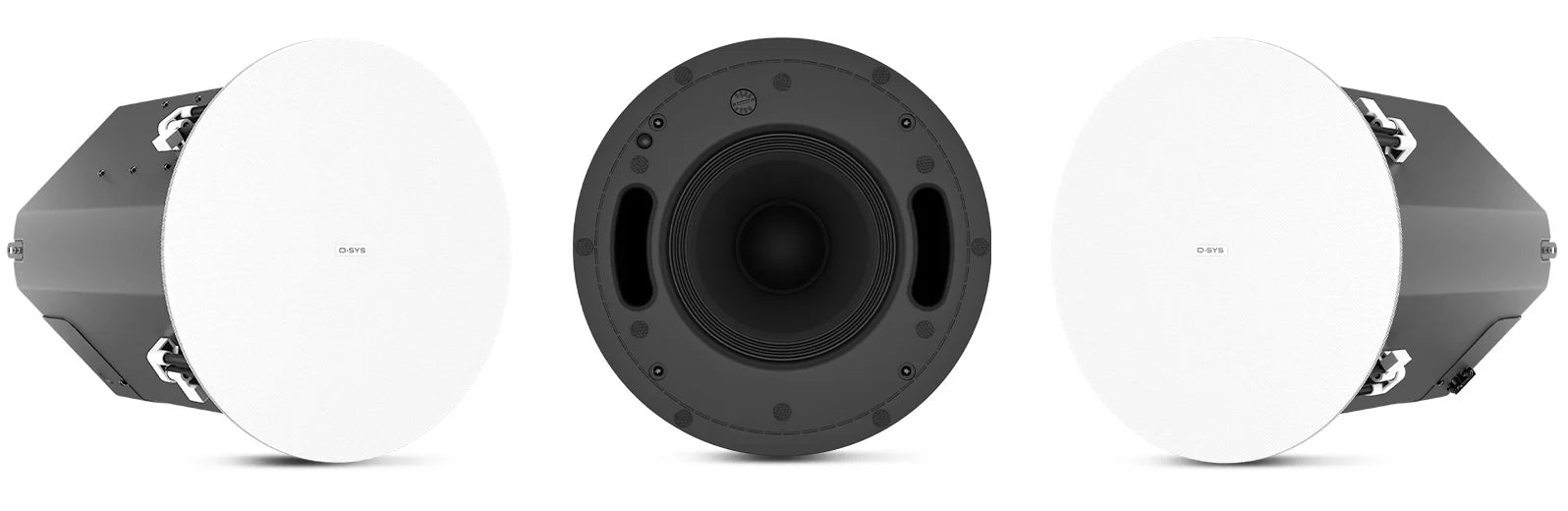

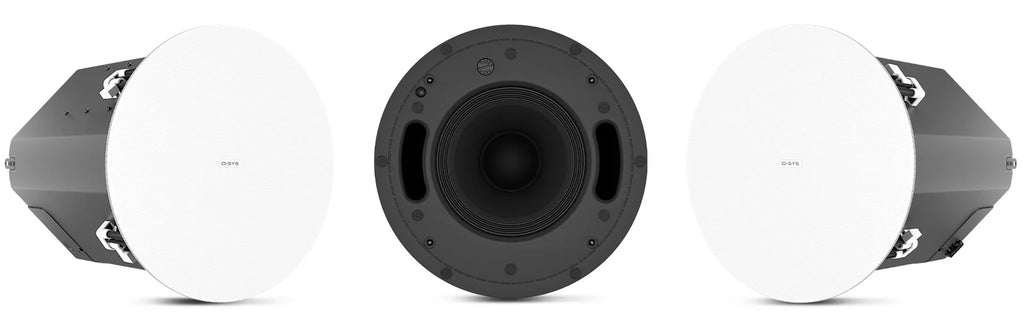

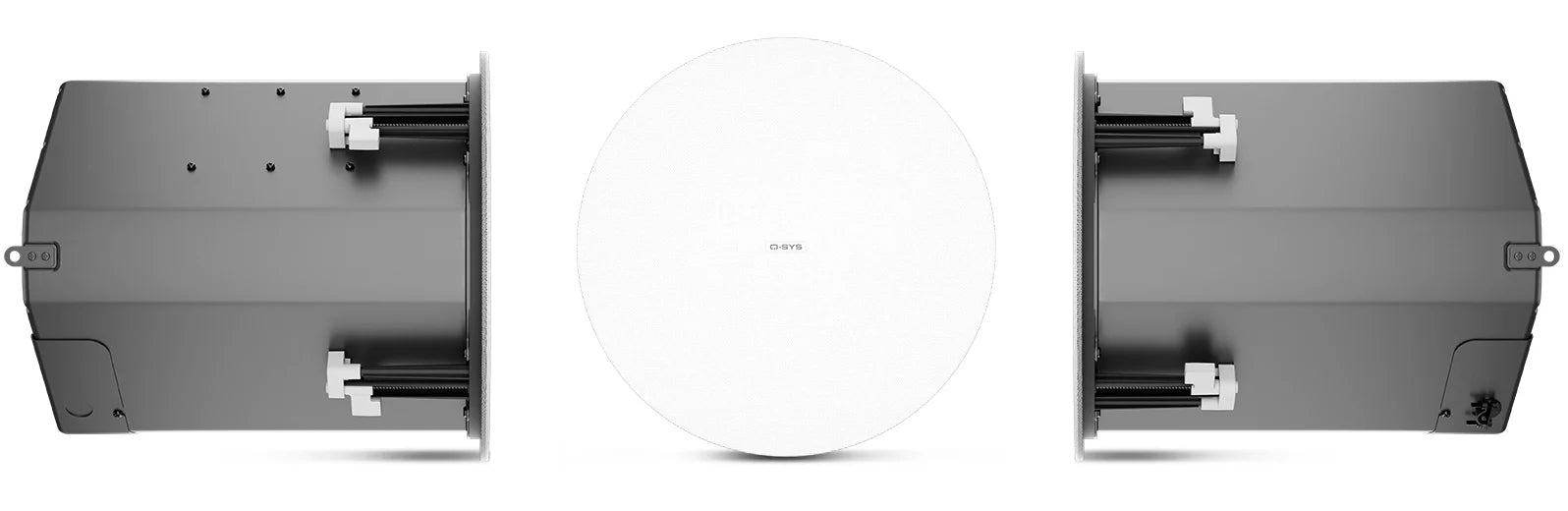

AD-C8T-SWZB 8-inch, ceiling-mount subwoofer
Features
- 8-in ceiling subwoofer with bezel-less design
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified
- Available in white (RAL 9003), with black grille accessory sold separately.
Specifications
- LF transducer: 8 in (203 mm), 2.0 in (50.8 mm) voice coil, ferrite
- Enclosure configuration: Ceiling subwoofer, bass reflex
- Coverage: Omni
- Filter: 125 Hz low pass, passive
- System bandwidth: -3 dB: 65 Hz – 155 Hz; -6 dB: 59 Hz – 170 Hz; -10 dB: 53 Hz – 195 Hz
- Sensitivity: 92.3 dB @ 1 W/1 m
- Max SPL (continuous): 113 dB
- Max SPL (peak): 125 dB
- Max SPL (calculated): 123 dB
- Power rating: Continuous power 250 W @ 8 Ω, rated power 500 W
- Bypass impedance: 8 Ω
- Minimum impedance: 6.4 Ω @ 118 Hz
- Transformer taps (70V/100V): 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
- Enclosure material: ABS baffle on powder-coated steel backcan
- Enclosure color: Black back-can, white grille (RAL 9010)
- Connectors: 4-pin 5 mm Euroblock connector with parallel output
- Dimensions (H × W × D): 13.5 × 13.5 × 13.75 in (342.9 × 342.9 × 349.25 mm)
- Cutout diameter: 305 mm
- Shipping dimensions (H × W × D): 19.5 × 17.5 × 32 in (495.3 × 444.5 × 812.8 mm), pair packed
- Weight: 22.4 lb (10.1 kg)
- Included accessories: Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille
- Optional accessories (sold separately): AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille
- Ingress protection: IP-44
- Safety agency: UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces; ROHS and CE compliant; baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems.
